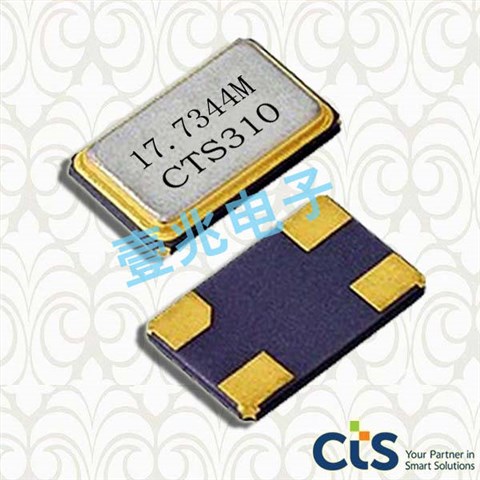

406C35B10M24500美國CTS晶振,406藍牙晶振

產品簡介

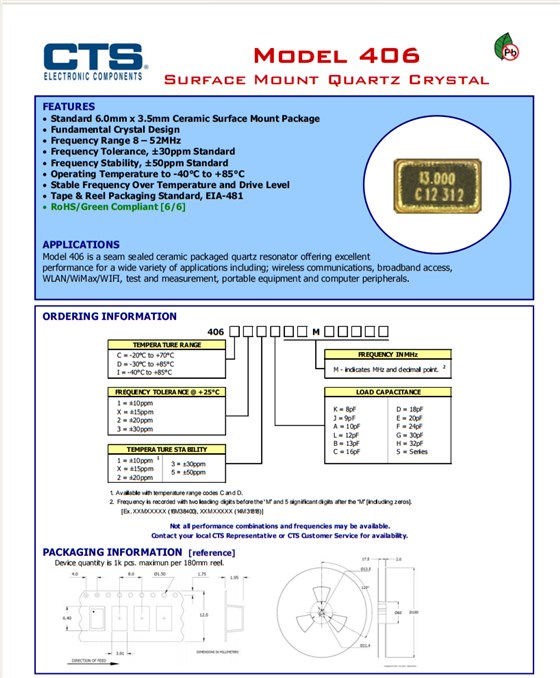

406C35B10M24500美國CTS晶振,406藍牙晶振，編碼：406C35B10M24500，型號：406系列晶振，工作溫度：-20°C ~ 70°C，尺寸：6.0*3.5mm，頻率：10.245MHz，負載電容：13pF，精度：±30ppm，西迪斯Oscillator ，貼片晶體，標準6.0毫米x 3.5mm毫米陶瓷表貼封裝基本晶體設計 頻率范圍為8-52兆赫頻率容差，30ppm標準 頻率穩定性，50ppm標準 工作溫度為-40℃至+85℃ 溫度和驅動電平下的穩定頻率膠帶和卷軸包裝標準，EIA-481，406型是接縫密封陶瓷封裝石英諧振器，具有出色的各種應用的性能，包括:無線通信、寬帶接入， WLAN/WiMax/WIFI、測試和測量、便攜式設備和計算機外設。

產品詳情

406C35B10M24500美國CTS晶振,406藍牙晶振，編碼：406C35B10M24500，型號：406系列晶振，工作溫度：-20°C ~ 70°C，尺寸：6.0*3.5mm，頻率：10.245MHz，負載電容：13pF，精度：±30ppm，西迪斯Oscillator ，貼片晶體，標準6.0毫米x 3.5mm毫米陶瓷表貼封裝基本晶體設計 頻率范圍為8-52兆赫頻率容差，30ppm標準 頻率穩定性，50ppm標準 工作溫度為-40℃至+85℃ 溫度和驅動電平下的穩定頻率膠帶和卷軸包裝標準，EIA-481，406型是接縫密封陶瓷封裝石英諧振器，具有出色的各種應用的性能，包括:無線通信、寬帶接入， WLAN/WiMax/WIFI、測試和測量、便攜式設備和計算機外設。

406C35B10M24500美國CTS晶振,406藍牙晶振，參數表

PARAMETER

VALUE

Frequency Range

6.76438MHz to 54MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±30ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

6.76438MHz - <11MHz

80 Ohms

11MHz - <15MHz

60 Ohms

15MHz - <35MHz

50 Ohms

35MHz - 54MHz

40 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

5.0pF Typical, 7.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +100°C

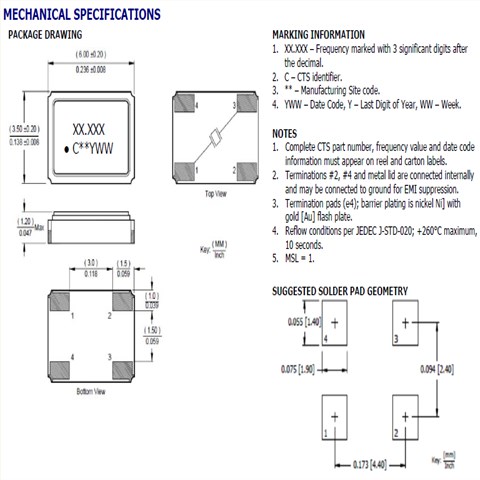

406C35B10M24500美國CTS晶振,406藍牙晶振，尺寸圖

Manufacturer Part Number原廠編碼	SMD晶體	Series型號	Frequency	Frequency Stability頻率穩定度	Frequency Tolerance頻率偏差	Load Capacitance負載電容	ESR (Equivalent Series Resistance)電阻	Operating Temperature 工作溫度
406C35B10M24500	CTS-Frequency Controls	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B10M24500	CTS-Frequency Controls	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B10M24500	CTS-Frequency Controls	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406I35D08M00000	CTS-Frequency Controls	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
406I35D08M00000	CTS-Frequency Controls	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
406I35D08M00000	CTS-Frequency Controls	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
406C35D08M00000	CTS-Frequency Controls	406	8MHz	±50ppm	±30ppm	18pF	-	-20°C ~ 70°C
406C35D08M00000	CTS-Frequency Controls	406	8MHz	±50ppm	±30ppm	18pF	-	-20°C ~ 70°C
406C35D08M00000	CTS-Frequency Controls	406	8MHz	±50ppm	±30ppm	18pF	-	-20°C ~ 70°C
406C35B13M00000	CTS-Frequency Controls	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B13M00000	CTS-Frequency Controls	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B13M00000	CTS-Frequency Controls	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35D12M00000	CTS-Frequency Controls	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
406C35D12M00000	CTS-Frequency Controls	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
406C35D12M00000	CTS-Frequency Controls	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
406C35B14M00000	CTS-Frequency Controls	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M00000	CTS-Frequency Controls	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M00000	CTS-Frequency Controls	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B24M57600	CTS-Frequency Controls	406	24.576MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
