ECS-160-20-20A-TR,16MHz,CSM-8晶振，四腳貼片無源晶振，進口晶振，晶體諧振器，石英晶振，型號：CSM-8系列晶振，編碼為：ECS-160-20-20A-TR，頻率：16MHz,負載電容為：20Pf,尺寸：7.0*5.0mm,工作溫度為：-10°C ~ 70°C，ECS crystal晶振，石英晶體諧振器，CSM-8M 貼片石英晶體 CSM-8M是一款尺寸為7.0 x 5.0毫米的微型SMD晶體足跡，這種縫焊金屬蓋/陶瓷封裝晶體 是PCMIA以太網和傳真調制解調器卡應用的理想選擇，應用于移動通信設備，近距離無線模塊，數字AV設備，可穿戴設備，無線晶振，醫療設備，工業設備等用途。

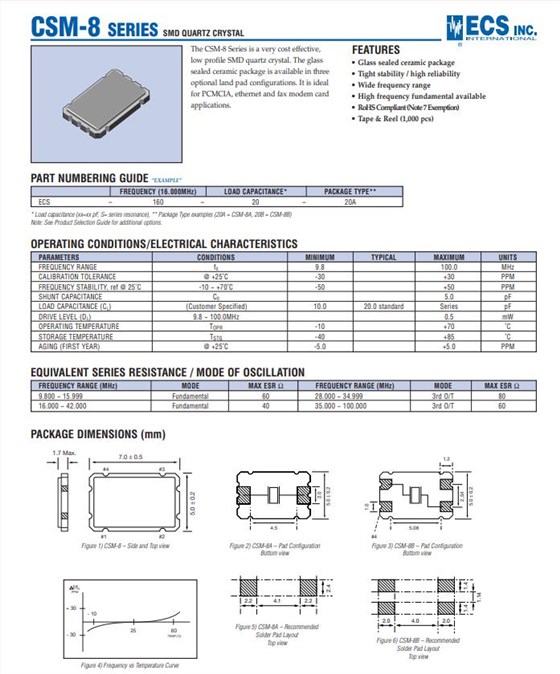

ECS-160-20-20A-TR,16MHz,CSM-8晶振，參數表
| 編碼 |
ECS-160-20-20A-TR |
| 品牌 | ECS 晶振 |
| 型號 | CSM-8 |
| 頻率 |
16MHz |
| 負載電容 |
20Pf |
| 工作溫度 |
-10°C ~ 70°C |
| 尺寸 | 7.0*5.0mm |

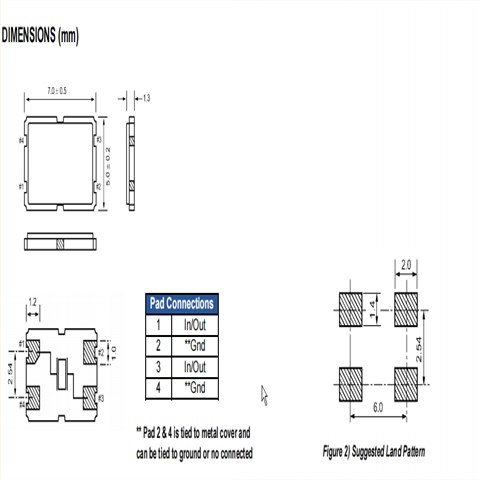

ECS-160-20-20A-TR,16MHz,CSM-8晶振，尺寸圖
| Manufacturer Part Number原廠編碼 | SMD晶體 | Series型號 | Frequency | Operating Temperature工作溫度 |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
