O 25.0-JT33-B-K-3.3-LF,3225有源溫補晶振,Jauch進口晶振

產品簡介

O 25.0-JT33-B-K-3.3-LF,3225有源溫補晶振,Jauch進口晶振，編碼：O 25.0-JT33-B-K-3.3-LF，型號：JT33，工作溫度：-40°C ~ 85°C，尺寸：3.2*2.5mm，頻率：25MHz，精度：±2ppm，電壓： 3.3V，電流：2.5mA，美國進口晶振，溫度補償石英晶體振蕩器，有源溫補晶振，石英晶振，XO振蕩器，溫度補償晶振，3225進口晶振，溫補晶振(TCXO)產品本身具有溫度補償作用,高低溫度穩定性:頻率精度高0.5PPM~2.0PPM,常用頻率:26M,33.6M,38.4M,40M.因產品性能穩定,精度高等優勢,被廣泛應用到一些比較高端的數碼通訊產品領域,GPS全球定位系統,智能手機,WiMAX和無線通信等產品,符合RoHS/無鉛.

產品詳情

O 25.0-JT33-B-K-3.3-LF,3225有源溫補晶振,Jauch進口晶振，參數表

編碼	O 25.0-JT33-B-K-3.3-LF
品牌	Jauch
型號	JT33
頻率	25MHz
精度	±2ppm
電流	2.5mA
電壓	3.3V
工作溫度	-40°C ~ 85°C
尺寸	3.2*2.5mm

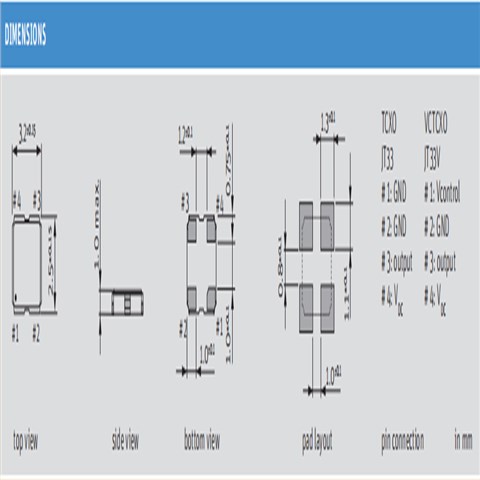

O 25.0-JT33-B-K-3.3-LF,3225有源溫補晶振,Jauch進口晶振，尺寸圖

Mfr Part #	美國進口晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
O 25.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	25 MHz	Clipped Sine Wave	3.3V	±2ppm
O 10.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	10 MHz	Clipped Sine Wave	3.3V	±2ppm
O 12.80-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	12.8 MHz	Clipped Sine Wave	3.3V	±2ppm
O 30.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	30 MHz	Clipped Sine Wave	3.3V	±2ppm
O 20.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	20 MHz	Clipped Sine Wave	3.3V	±2ppm
O 26.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm
O 32.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	32 MHz	Clipped Sine Wave	3.3V	±2ppm
O 39.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	39 MHz	Clipped Sine Wave	3.3V	±2ppm
O 40.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm
O 50.0-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	50 MHz	Clipped Sine Wave	3.3V	±2ppm
O 20.0-JTP32CSV-F-K-3.3-1510-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	20 MHz	Clipped Sine Wave	3.3V	±280ppb
O 10.0-JTP32CSV-F-K-3.3-1510-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±280ppb
O 19.20-JTP53HC-F-K-3.3-LF	Jauch Quartz	JTP53HC	TCXO	19.2 MHz	HCMOS	3.3V	±280ppb
O 20.0-JTP53HC-F-K-3.3-LF	Jauch Quartz	JTP53HC	TCXO	20 MHz	HCMOS	3.3V	±280ppb
O 38.880-JTP53HC-F-K-3.3-LF	Jauch Quartz	JTP53HC	TCXO	38.88 MHz	HCMOS	3.3V	±280ppb
O 20.0-JTP53HC-F-P-3.3-LF	Jauch Quartz	JTP53HC	TCXO	20 MHz	HCMOS	3.3V	±280ppb
O 19.20-JTP53HC-F-P-3.3-LF	Jauch Quartz	JTP53HC	TCXO	19.2 MHz	HCMOS	3.3V	±280ppb
O 38.880-JTP53HC-F-P-3.3-LF	Jauch Quartz	JTP53HC	TCXO	38.88 MHz	HCMOS	3.3V	±280ppb
O 40.0-JTP32CSV-F-K-3.3-1510-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	40 MHz	Clipped Sine Wave	3.3V	±280ppb
O 25.0-JTP32CSV-F-K-3.3-1510-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	25 MHz	Clipped Sine Wave	3.3V	±280ppb
O 19.20-JTP32CSV-F-K-3.3-1510-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	19.2 MHz	Clipped Sine Wave	3.3V	±280ppb
O 10.0-JTP32CSV-F-K-1.8-0909-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	10 MHz	Clipped Sine Wave	1.8V	±280ppb
O 25.0-JTP32CSV-F-K-1.8-0909-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	25 MHz	Clipped Sine Wave	1.8V	±280ppb
O 40.0-JTP32CSV-F-K-1.8-0909-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	40 MHz	Clipped Sine Wave	1.8V	±280ppb
O 19.20-JTP32CSV-F-K-1.8-0909-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	19.2 MHz	Clipped Sine Wave	1.8V	±280ppb
O 20.0-JTP32CSV-F-K-1.8-0909-1015-LF	Jauch Quartz	JTP32CSV	VCTCXO	20 MHz	Clipped Sine Wave	1.8V	±280ppb
O 16.384-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	16.384 MHz	Clipped Sine Wave	3.3V	±2ppm
O 38.4-JT33-B-K-3.3-LF	Jauch Quartz	JT33	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm
