短程無線設備應用晶振NX2520SA-24.576000MHZ

2023-06-06 17:26:36

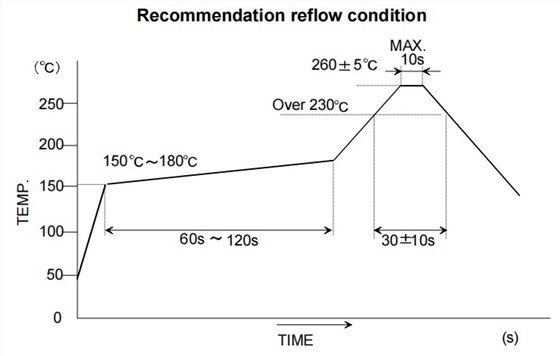

日本電波工業株式NDK晶振，進口晶振型號NX2520SA，是一款小體積晶振尺寸2.5x2.0x0.50mm四腳貼片晶振，石英晶振，無源晶振，晶體諧振器，無鉛環保晶振，頻率范圍：16.000MHz~80.000MHz，具有超小型，輕薄型，優異的耐環境性能，耐熱和耐沖擊性，回流溫度曲線（可用于無鉛焊接)，應用于：電信設備，藍牙石英晶振，短程無線設備，消費電子產品晶振，短程無線設備、Wi-Fi，以及參考時鐘源如智能手機和平板電腦等應用。短程無線設備應用晶振NX2520SA-24.576000MHZ

原廠編碼	品牌	型號	頻率	頻率穩定度	包裝/封裝
NX2520SA-16MHZ-STD-CSW-4	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, 貼片晶振
NX2520SA-16.000000MHZ	NDK晶振	NX2520SA	16MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.000000MHZ-B8	NDK晶振	NX2520SA	24MHz	±10ppm	4-SMD, No Lead
NX2520SA-48.000000MHZ	NDK晶振	NX2520SA	48MHz	±10ppm	4-SMD, No Lead
NX2520SA-16MHZ-EXS00A-CS05116	NDK晶振	NX2520SA	16MHz	±15ppm	4-SMD, No Lead
NX2520SA-25.000M-STD-CSW-5	NDK晶振	NX2520SA	25MHz	±25ppm	4-SMD, No Lead
NX2520SA-26MHZ-STD-CSX-1	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
NX2520SA-30.000000MHZ	NDK晶振	NX2520SA	30MHz	±10ppm	4-SMD, No Lead
NX2520SA-24.576000MHZ	NDK晶振	NX2520SA	24.576MHz	±10ppm	4-SMD, No Lead
NX2520SA-20.000000MHZ	NDK晶振	NX2520SA	20MHz	±10ppm	4-SMD, No Lead
NX2520SA-32.000000MHZ	NDK晶振	NX2520SA	32MHz	±10ppm	4-SMD, No Lead
NX2520SA-44.000000MHZ	NDK晶振	NX2520SA	44MHz	±10ppm	4-SMD, No Lead
NX2520SA-26.000000MHZ-B9	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead
EXS00A-CS05400	NDK晶振	NX2520SA	19.2MHz	±30ppm	4-SMD, No Lead
NX2520SA-16MHZ-STD-CSW-5	NDK晶振	NX2520SA	16MHz	±25ppm	4-SMD, No Lead
NX2520SA-16.000000MHZ-W1	NDK晶振	NX2520SA	16MHz	±20ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W2	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-40.000000MHZ-W3	NDK晶振	NX2520SA	40MHz	±10ppm	4-SMD, No Lead
NX2520SA-26MHZ-EXS00A-CS05497	NDK晶振	NX2520SA	26MHz	±10ppm	4-SMD, No Lead

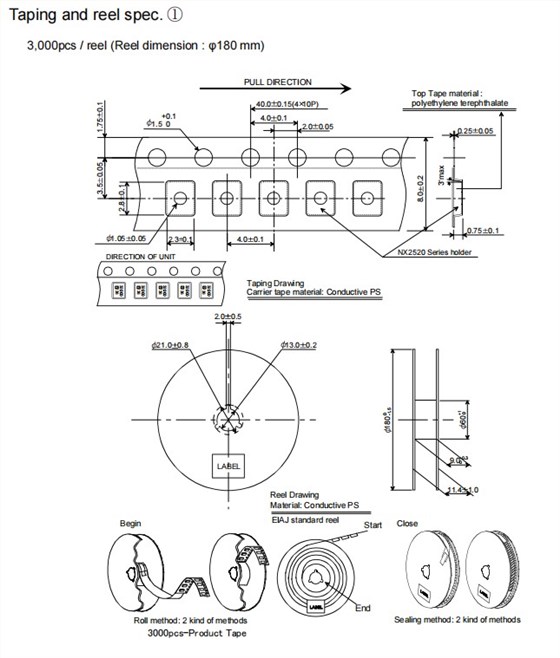

短程無線設備應用晶振NX2520SA-24.576000MHZ，2520mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接（產品無鉛對應）,為無鉛產品.
