采用尖端硅技術的新型振蕩器SSO32C3A481-25.000M是6G模塊的理想選擇

2023-06-21 15:31:47

振蕩器

Suntsu發布采用尖端硅技術的新型振蕩器

與需要石英或MEMS等時鐘源來產生輸出頻率的傳統石英晶體振蕩器不同，Suntsu的無時鐘硅振蕩器的結構可以在惡劣和高振動環境下實現高度可靠的時鐘，而無需使用石英或MEMS。
內置頻率合成和溫度傳感器可產生10kHz至350MHz的頻率范圍，在-40℃至85℃范圍內頻率穩定性為+/-50ppm，而LDO和濾波器電路可增強電源噪聲抑制，實現低抖動性能。由于其靈活的頻率配置和輸出物流，這些振蕩器具有相對較短的生產時間，這對供應鏈的連續性至關重要。采用尖端硅技術的新型振蕩器SSO32C3A481-25.000M是6G模塊的理想選擇

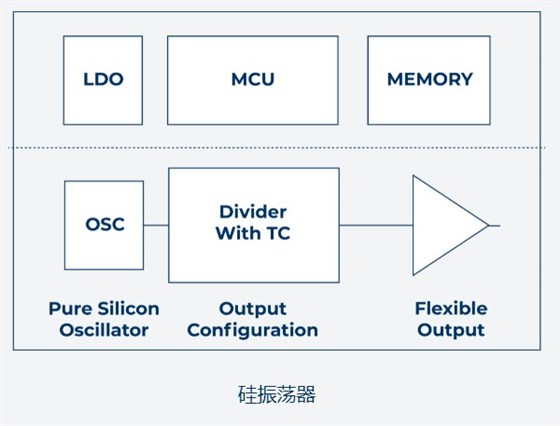

硅振蕩器

Suntsu松圖SSO32C晶振，是一款小體積晶振尺寸3.2x2.5mm四腳貼片晶振，石英晶振，有源晶振，CMOS輸出石英晶體振蕩器，全硅，不含石英和MEMS，提供50ppm(頻率穩定性)，內置LDO和電源濾波電路，濕度敏感度等級2，具有超小型，輕薄型，低抖動，低功耗，高性能，高精度，低電壓等特點。應用程序：智能終端，以太網，消費電子產品，通信設備，無線藍牙，車載控制器，醫療設備，數碼電子，物聯網等應用。采用尖端硅技術的新型振蕩器SSO32C3A481-25.000M是6G模塊的理想選擇

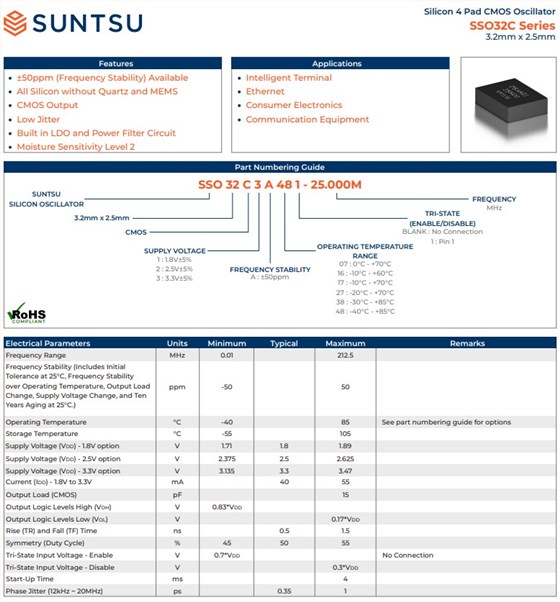

SSO32C

產品編碼 石英晶體晶振 輸出 抖動 電壓 頻率穩定性 工作溫度
SSO32C1A071-10.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-100.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-12.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-125.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-16.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-20.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-24.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-25.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-40.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-48.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A071-50.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm 0°C - +70°C
SSO32C1A161-10.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-100.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-12.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-125.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-16.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-20.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-24.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-25.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-40.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-48.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A161-50.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +60°C
SSO32C1A171-10.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-100.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-12.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-125.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-16.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-20.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-24.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR 貼片晶振 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-25.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-40.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-48.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A171-50.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -10°C - +70°C
SSO32C1A271-10.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-100.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-12.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-125.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-16.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-20.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-24.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-25.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-40.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-48.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A271-50.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -20°C - +70°C
SSO32C1A381-10.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-100.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-12.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-125.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-16.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-20.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-24.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-25.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-40.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-48.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A381-50.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -30°C - +85°C
SSO32C1A481-10.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C
SSO32C1A481-100.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C
SSO32C1A481-12.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C
SSO32C1A481-125.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C
SSO32C1A481-16.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C
SSO32C1A481-20.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C
SSO32C1A481-24.000M 3.2X2.5 SILICON SMD (4 PAD) OSCILLATOR CMOS 1.0ps 1.8V±5% ±50ppm -40°C - +85°C

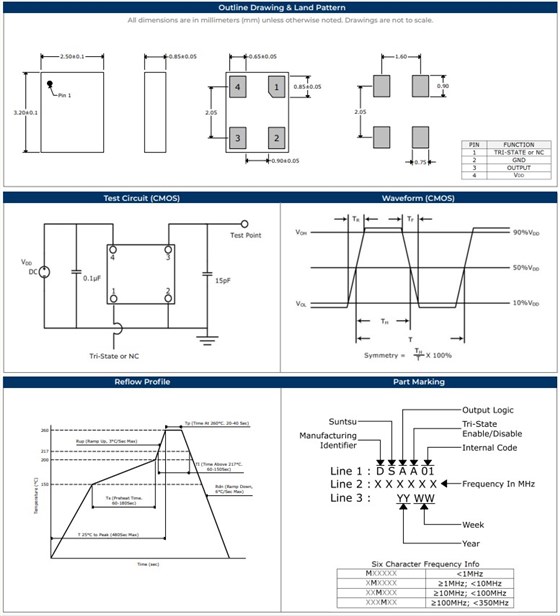

SSO32C-1

采用尖端硅技術的新型振蕩器SSO32C3A481-25.000M是6G模塊的理想選擇

石英晶體振蕩器優點：
1、石英鐘走時準、耗電省、經久耐用為其最大優點。不論是老式石英鐘或是新式多功能石英鐘都是以石英晶體振蕩器為核心電路，其頻率精度決定了電子鐘表的走時精度。
2、隨著電視技術的發展，近來彩電多采用500kHz或503kHz的晶體振蕩器作為行、場電路的振蕩源，經1/3的分頻得到15625Hz的行頻，其穩定性和可靠性大為提高。而且晶振價格便宜，更換容易。
3、在通信系統產品中，石英晶體振蕩器的價值得到了更廣泛的體現，同時也得到了更快的發展。許多高性能的石英晶振主要應用于通信網絡、無線數據傳輸、高速數字?jǐn)?shù)據傳輸?shù)取?/span>
