403C35D32M00000美國CTS進口晶振,3225石英貼片晶體

產品簡介

403C35D32M00000美國CTS進口晶振,3225石英貼片晶體，編碼：403C35D32M00000，型號：403系列晶振，工作溫度：-20°C ~ 70°C，尺寸：3.2*2.5mm，頻率：32MHz，負載電容：18pF，精度：±30ppm，石英晶振，CTS晶振，標準3.2毫米x 2.5mm毫米縫焊組件基本晶體設計頻率范圍為10–60 MHz 頻率容差，30ppm標準頻率穩定性，30ppm標準工作溫度為-40℃至+85℃ 溫度和驅動電平下的穩定頻率膠帶和卷軸包裝標準，EIA-481，403型是一種低成本的晶體諧振器，廣泛應用于商業領域包括WLAN/WiMax/WiFi、A/V、藍牙、ZigBee和USB接口、筆記本電腦、計算機外圍設備和便攜式設備。

產品詳情

403C35D32M00000美國CTS進口晶振,3225石英貼片晶體，編碼：403C35D32M00000，型號：403系列晶振，工作溫度：-20°C ~ 70°C，尺寸：3.2*2.5mm，頻率：32MHz，負載電容：18pF，精度：±30ppm，石英晶振，CTS晶振，標準3.2毫米x 2.5mm毫米縫焊組件基本晶體設計頻率范圍為10–60 MHz 頻率容差，30ppm標準頻率穩定性，30ppm標準工作溫度為-40℃至+85℃ 溫度和驅動電平下的穩定頻率膠帶和卷軸包裝標準，EIA-481，403型是一種低成本的晶體諧振器，廣泛應用于商業領域包括WLAN/WiMax/WiFi、A/V、藍牙、ZigBee和USB接口、筆記本電腦、計算機外圍設備和便攜式設備。

403C35D32M00000美國CTS進口晶振,3225石英貼片晶體，參數表

PARAMETER

VALUE

Frequency Range

10MHz to 60MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±30ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

10MHz - <14MHz

120 Ohms

14MHz - <16MHz

100 Ohms

16MHz - <20MHz

80 Ohms

20MHz - 60MHz

60 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

3.0pF Typical, 5.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +100°C

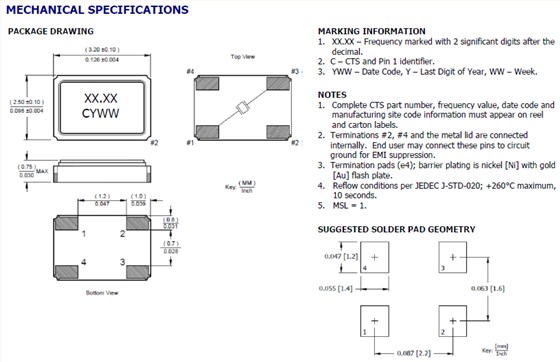

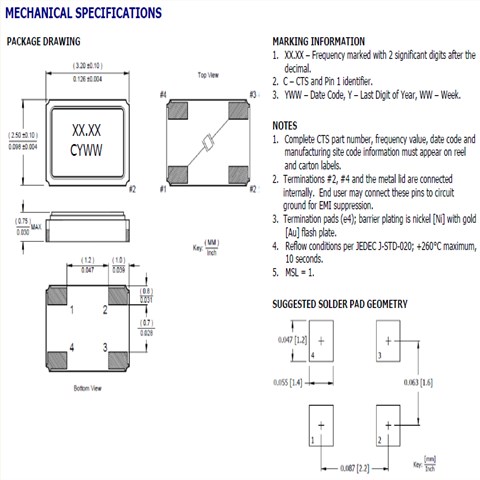

403C35D32M00000美國CTS進口晶振,3225石英貼片晶體，尺寸圖

Manufacturer Part Number原廠編碼	壹兆晶振廠家	Series型號	Frequency	Frequency Tolerance頻率偏差	Load Capacitance負載電容	Operating Temperature工作溫度
403C11A32M00000	CTS-Frequency Controls	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A32M00000	CTS-Frequency Controls	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A32M00000	CTS-Frequency Controls	403	32MHz	±10ppm	10pF	-20°C ~ 70°C
403C35D25M00000	CTS-Frequency Controls	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D25M00000	CTS-Frequency Controls	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D25M00000	CTS-Frequency Controls	403	25MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS-Frequency Controls	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS-Frequency Controls	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D12M00000	CTS-Frequency Controls	403	12MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS-Frequency Controls	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS-Frequency Controls	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35D24M00000	CTS-Frequency Controls	403	24MHz	±30ppm	18pF	-20°C ~ 70°C
403C35E13M00000	CTS-Frequency Controls	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E13M00000	CTS-Frequency Controls	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E13M00000	CTS-Frequency Controls	403	13MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS-Frequency Controls	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS-Frequency Controls	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C35E27M00000	CTS-Frequency Controls	403	27MHz	±30ppm	20pF	-20°C ~ 70°C
403C11A16M00000	CTS-Frequency Controls	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M00000	CTS-Frequency Controls	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M00000	CTS-Frequency Controls	403	16MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS-Frequency Controls	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS-Frequency Controls	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A24M00000	CTS-Frequency Controls	403	24MHz	±10ppm	10pF	-20°C ~ 70°C
403C11A16M80000	CTS-Frequency Controls	403	16.8MHz	±10ppm	10pF	-20°C ~ 70°C
