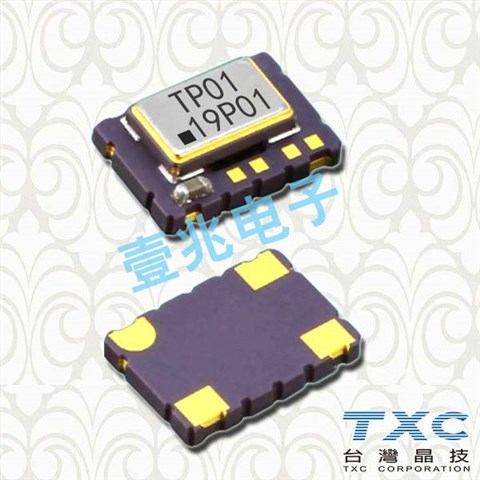

7050溫補有源晶振,7N-38.880MBP-T,TXC晶體振蕩器

產品簡介

7050溫補有源晶振,7N-38.880MBP-T,TXC晶體振蕩器，編碼：7N-38.880MBP-T，型號：7N，工作溫度：-40°C ~ 85°C，尺寸：7.0mm*5.0mm，頻率：38.88 MHz，精度：±280ppb，電壓：3.3V，電流：10mA，臺產晶振，有源7050貼片晶振，高精度溫補晶振，TCXO晶振，頻率范圍： 10MHz至52MHz，SMD接縫密封陶瓷封裝，電源電壓：3.3V，CMOS輸出，電壓控制功能可用，符合RoHS標準& Pb免費，產品廣泛應用于無線通信，基站，網絡設備，軍事設備，測試和測量設備，衛星導航。

產品詳情

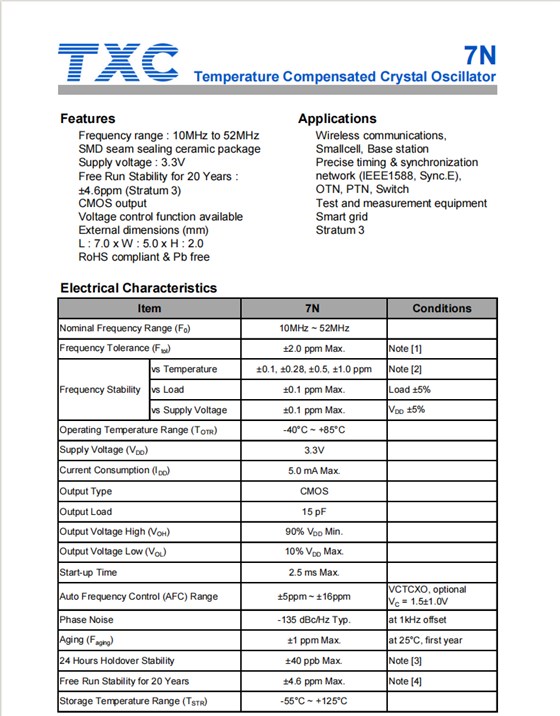

7050溫補有源晶振,7N-38.880MBP-T,TXC晶體振蕩器，參數表

編碼	7N-38.880MBP-T
品牌	TXC
型號	7N
頻率	38.88 MHz
精度	±280ppb
電壓	3.3V
電流	10mA
工作溫度	-40°C ~ 85°C
尺寸	7.0mm*5.0mm

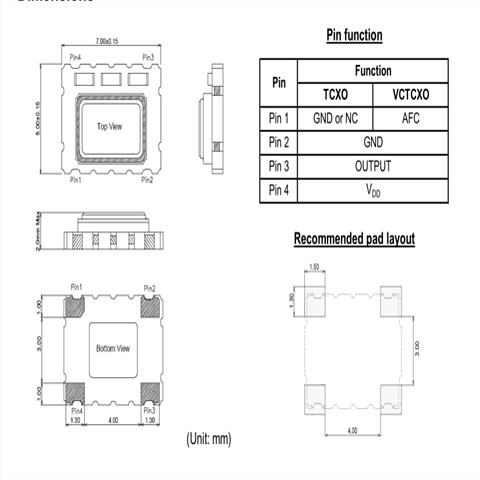

7050溫補有源晶振,7N-38.880MBP-T,TXC晶體振蕩器，尺寸圖

Mfr Part #	TCXO晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
7N-20.000MBP-T	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±280ppb
7N-12.800MBP-T	TXC CORPORATION	7N	TCXO	12.8 MHz	CMOS	3.3V	±280ppb
7N-10.000MBP-T	TXC CORPORATION	7N	TCXO	10 MHz	CMOS	3.3V	±280ppb
7P-19.200MBP-T	TXC CORPORATION	7P	TCXO	19.2 MHz	CMOS	3.3V	±280ppb
7N-19.200MBP-T	TXC CORPORATION	7N	TCXO	19.2 MHz	CMOS	3.3V	±280ppb
7N-19.440MBP-T	TXC CORPORATION	7N	TCXO	19.44 MHz	CMOS	3.3V	±280ppb
7N48071005	TXC CORPORATION	7N	TCXO	48 MHz	CMOS	3.3V	±140ppb
7N38871002	TXC CORPORATION	7N	TCXO	38.88 MHz	CMOS	3.3V	±250ppb
7N19471005	TXC CORPORATION	7N	TCXO	19.44 MHz	CMOS	3.3V	±140ppb
7N20070004	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±250ppb
7N10071003	TXC CORPORATION	7N	TCXO	10 MHz	CMOS	3.3V	±250ppb
7N20071005	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±140ppb
7N48071001	TXC CORPORATION	7N	TCXO	48 MHz	CMOS	3.3V	±250ppb
7N19471003	TXC CORPORATION	7N	TCXO	19.44 MHz	CMOS	3.3V	±250ppb
7N38871003	TXC CORPORATION	7N	TCXO	38.88 MHz	CMOS	3.3V	±140ppb
7P-25.000MBP-T	TXC CORPORATION	7P	TCXO	25 MHz	CMOS	3.3V	±280ppb
7P-26.000MBP-T	TXC CORPORATION	7P	TCXO	26 MHz	CMOS	3.3V	±280ppb
7P-38.400MBP-T	TXC CORPORATION	7P	TCXO	38.4 MHz	CMOS	3.3V	±280ppb
7N-25.000MBP-T	TXC CORPORATION	7N	TCXO	25 MHz	CMOS	3.3V	±280ppb
7N-26.000MBP-T	TXC CORPORATION	7N	TCXO	26 MHz	CMOS	3.3V	±280ppb
7N-38.880MBP-T	TXC CORPORATION	7N	TCXO	38.88 MHz	CMOS	3.3V	±280ppb
7N-40.000MBP-T	TXC CORPORATION	7N	TCXO	40 MHz	CMOS	3.3V	±280ppb
7Q-16.367667MBN-T	TXC CORPORATION	7Q	TCXO	16.367667 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-16.368MBN-T	TXC CORPORATION	7Q	TCXO	16.368 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-19.200MBS-T	TXC CORPORATION	7Q	VCTCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-26.000MBS-T	TXC CORPORATION	7Q	VCTCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-40.000MBS-T	TXC CORPORATION	7Q	VCTCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm
7Q-16.367667MBG-T	TXC CORPORATION	7Q	TCXO	16.367667 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-16.3676MBG-T	TXC CORPORATION	7Q	TCXO	16.3676 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-16.368MBG-T	TXC CORPORATION	7Q	TCXO	16.368 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-16.369MBG-T	TXC CORPORATION	7Q	TCXO	16.369 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-26.000MBG-T	TXC CORPORATION	7Q	TCXO	26 MHz	Clipped Sine Wave	3.3V	±500ppb
7Q-12.800MCS-T	TXC CORPORATION	7Q	VCTCXO	12.8 MHz	Clipped Sine Wave	2.5V	±2ppm
7Q-16.000MCS-T	TXC CORPORATION	7Q	VCTCXO	16 MHz	Clipped Sine Wave	2.5V	±2ppm
7Q-16.3676MCS-T	TXC CORPORATION	7Q	VCTCXO	16.3676 MHz	Clipped Sine Wave	2.5V	±2ppm
