JXS21P4晶體諧振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF

產品簡介

JXS21P4晶體諧振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，編碼：Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，型號：JXS21P4 ，工作溫度：-40°C ~ 85°C，尺寸：2.0*1.6mm，頻率：27MHz，精度：±20ppm，負載電容：12pF，SMD晶體，貼片晶體，石英晶振，Jauch石英晶體諧振器，2016貼片晶振，4襯墊型，2.0 x 1.6毫米-接縫密封陶瓷/金屬封裝-所有型號都通過了AEC-Q200認證- HMR版本，具有擴展的抗沖擊和振動能力，適用于時鐘鐘表，無線電話，數碼電子產品，智能手機，平板電腦，智能手表，智能水表，醫療設備，網絡設備等用途。

產品詳情

JXS21P4晶體諧振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，參數表

編碼	Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF
品牌	Jauch
型號	JXS21P4
頻率	27MHz
精度	±20ppm
負載電容	12pF
工作溫度	-40°C ~ 85°C
尺寸	2.0*1.6mm

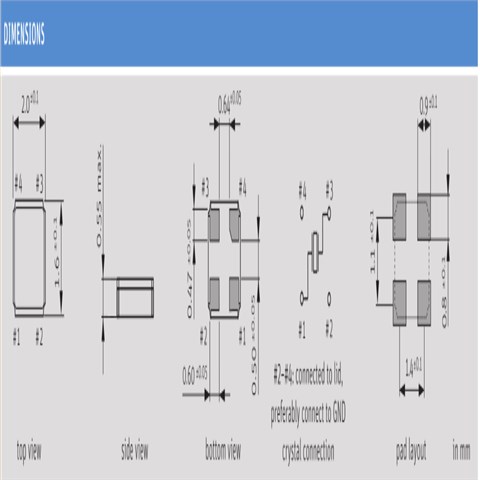

JXS21P4晶體諧振器,Q 27.0-JXS21P4-12-20/20-T1-FU-AEC-LF，尺寸圖

Manufacturer Part Number	美國進口晶振	Series	Frequency	Frequency Tolerance	Load Capacitance
Q 26.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	10pF
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	12pF
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	8pF
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	26MHz	±10ppm	9pF
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	27.12MHz	±10ppm	9pF
Q 38.4-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	10pF
Q 38.4-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	12pF
Q 38.4-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	8pF
Q 38.4-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	38.4MHz	±10ppm	9pF
Q 40.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	10pF
Q 40.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	12pF
Q 40.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	8pF
Q 40.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	40MHz	±10ppm	9pF
Q 32.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	10pF
Q 32.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	12pF
Q 32.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	8pF
Q 32.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	32MHz	±10ppm	9pF
Q 19.2-JXS21-10-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS21-12-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS21-8-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS21-9-10/10-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	10pF
Q 20.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	12pF
Q 20.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	8pF
Q 20.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	20MHz	±10ppm	9pF
Q 24.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	24MHz	±10ppm	10pF
Q 24.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	24MHz	±10ppm	12pF
