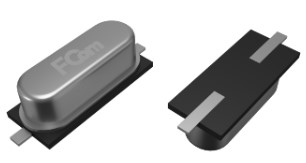

FCX9M02500020Y5L 49SMD 25M 20PF 日本富士FCom晶振參數對比
FCX9M02500020Y5L 49SMD 25M 20PF 日本富士FCom晶振參數對比
測試友商的49S/24M20pF20ppm、49S/8M20pF20ppm、49S/16M20pF20ppm的參數,各5件.具體測試數據如下:隨機選擇FCom的相同頻率,日本富士晶體晶振相同的標稱參數測試所示.
結果發現友商的頻率通常是負的.雖然友商標稱±20ppm的產品精度符合標準,但一般控制在±10ppm以上,有的高達±18ppm,這對于FCom來說已經是不合格產品了.標稱±20ppm的FCom產品精度一般控制在±10ppm以內.
同時友商產品的DLD2值過大.DLD2值是測試晶振在運行過程中的最大電阻值和最小電阻值之間的差值.具體反應是晶振與IC諧振時電阻值的變化,功率在0.01μW到100μW之間.如果晶振的DLD2值過大,晶振可能會在運行過程中停止振蕩.例如,友商的一款產品的DLD2值達到了5.7歐姆,說明晶振的電阻值不穩定,產品的一致性不夠.FCom產品的DLD2值都在1歐姆以內,比友商的產品更加一致
富士晶振, FCX-9M貼片晶振,進口晶振
此外友商晶振的FDLD2值過大.FDLD2值反映了晶振與IC諧振時頻率輸出的穩定性.參數值越小越好.該值越小,有源晶振頻率越穩定.FCom晶振的FDLD2值均設置在2ppm以內.
DLD2值和FDLD2較大的主要原因如下:
一.晶片材料問題,如晶片上的亮點雜質.
二.晶振廠在生產過程中對晶片的表面處理并不純凈.
三.當晶振在密封焊接時,內部有水分.
富士晶振, FCX-9M貼片晶振,進口晶振
比較兩個品牌使用的材料,FCom的49S晶體振蕩器外殼使用二次氧化光亮外殼,在生產過程中的49S晶振檢查顯示其外殼采用啞光工藝.從成本角度來看,二次氧化處理的光亮外殼成本略高,但保質期更長.特別是晶振在大氣環境中使用時,晶振的表面可以保持光滑,長時間不氧化,而啞光外殼更容易氧化.
從以上可以看出,FCom貼片晶振的產品在生產過程中使用更純凈的晶片原材料,生產工藝更先進,防止晶片在生產過程中受到水分污染.產品的一致性高于其他競爭對手的產品.此外,FCom還考慮了產品的可靠性和耐用性.此外,FCom還考慮了產品的可靠性和耐用性.它在產品外殼上使用更耐用的二次氧化工藝,以加長產品的使用壽命.
