ECS-130-20-3X-TR,CSM-3X石英晶體,7041無源晶振
頻率:13MHz
尺寸:7*4.1mm
石英晶振在選用晶片時應注意溫度范圍、晶振溫度范圍內的頻差要求,貼片晶振溫度范圍寬時(-40℃-85℃)晶振切割角度比窄溫(-10℃-70℃)切割角度應略高.對于晶振的條片,長邊為X軸,短邊為Z軸,面為Y軸.
石英晶振在選用晶片時應注意溫度范圍、晶振溫度范圍內的頻差要求,貼片晶振溫度范圍寬時(-40℃-85℃)晶振切割角度比窄溫(-10℃-70℃)切割角度應略高.對于晶振的條片,長邊為X軸,短邊為Z軸,面為Y軸.
編碼 | ECS-130-20-3X-TR |
品牌 | ECS 晶振 |
型號 | CSM-3X |
頻率 | 13MHz |
工作溫度 |
-10°C ~ 70°C |
尺寸 |
7.*4.1mm |

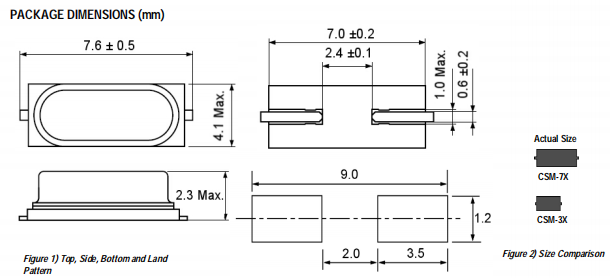

ECS-130-20-3X-TR,CSM-3X石英晶體,7041無源晶振,尺寸圖
Manufacturer Part Number原廠編碼 | 貼片晶振 | Series型號 | Frequency | Operating Temperature 工作溫度 |
ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
ECS-286.3-20-3X-EN-TR | ECS 晶振 | CSM-3X | 28.63636MHz | -40°C ~ 85°C |
