ECS-1618-260-BN-TR晶振,ECS-1618晶體振蕩器
頻率:26MHz
尺寸:2.0*1.6mm
ECS-1618-260-BN-TR晶振,ECS-1618晶體振蕩器,四腳貼片晶振,型號:ECS-1618系列晶振,編碼為:ECS-1618-260-BN-TR,頻率為:26MHz,尺寸:2.0*1.6mm,工作溫度為:﹣40℃ ~ 85°C,小型SMD有源ECS貼片晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封時鐘晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V~5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本WLAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
ECS-1618-260-BN-TR晶振,ECS-1618晶體振蕩器,參數表
編碼 | ECS-1618-260-BN-TR |
品牌 | ECS 晶振 |
型號 | ECS-1618 |
頻率 | 26MHz |
工作溫度﹣ |
﹣40℃ ~ 85°C |
尺寸 |
2.0*1.6mm |

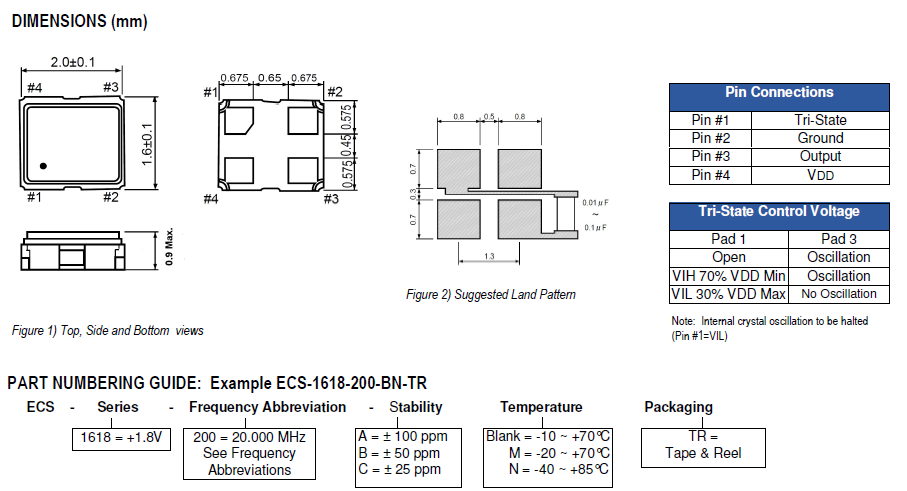

ECS-1618-260-BN-TR晶振,ECS-1618晶體振蕩器,尺寸圖
Manufacturer Part Number原廠代碼 | 有源晶振SPXO | Series型號 | Frequency 頻率 | Operating Temperature 工作溫度 |
ECS-1618-300-BN-TR | ECS 晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
ECS-1618-300-BN-TR | ECS 晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
ECS-1618-300-BN-TR | ECS 晶振 | ECS-1618 | 30MHz | -40°C ~ 85°C |
ECS-1618-060-BN-TR | ECS 晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
ECS-1618-060-BN-TR | ECS 晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
ECS-1618-060-BN-TR | ECS 晶振 | ECS-1618 | 6MHz | -40°C ~ 85°C |
ECS-1618-120-BN-TR | ECS 晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
ECS-1618-120-BN-TR | ECS 晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
ECS-1618-120-BN-TR | ECS 晶振 | ECS-1618 | 12MHz | -40°C ~ 85°C |
ECS-1618-192-BN-TR | ECS 晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
ECS-1618-192-BN-TR | ECS 晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
ECS-1618-192-BN-TR | ECS 晶振 | ECS-1618 | 19.2MHz | -40°C ~ 85°C |
ECS-1618-260-BN-TR | ECS 晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
ECS-1618-260-BN-TR | ECS 晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
ECS-1618-260-BN-TR | ECS 晶振 | ECS-1618 | 26MHz | -40°C ~ 85°C |
ECS-1618-480-BN-TR | ECS 晶振 | ECS-1618 | 48MHz | -40°C ~ 85°C |
ECS-1618-480-BN-TR | ECS 晶振 | ECS-1618 | 48MHz | -40°C ~ 85°C |
ECS-1618-480-BN-TR | ECS 晶振 | ECS-1618 | 48MHz | -40°C ~ 85°C |
ECS-1618-270-BN-TR | ECS 晶振 | ECS-1618 | 27MHz | -40°C ~ 85°C |
ECS-1618-270-BN-TR | ECS 晶振 | ECS-1618 | 27MHz | -40°C ~ 85°C |
ECS-1618-270-BN-TR | ECS 晶振 | ECS-1618 | 27MHz | -40°C ~ 85°C |
ECS-1618-240-BN-TR | ECS 晶振 | ECS-1618 | 24MHz | -40°C ~ 85°C |
ECS-1618-240-BN-TR | ECS 晶振 | ECS-1618 | 24MHz | -40°C ~ 85°C |
ECS-1618-240-BN-TR | ECS 晶振 | ECS-1618 | 24MHz | -40°C ~ 85°C |
