2520貼片有源晶振,ECS-2520Q-30-480-BP-TR
頻率：48MHz
尺寸：2.5mm x 2.0mm
2520貼片有源晶振,ECS-2520Q-30-480-BP-TR，型號：ECS-2520Q系列晶振，編碼為：ECS-2520Q-30-480-BP-TR，頻率：48MHz,尺寸：2.5*2.0mm,工作溫度為：﹣40°C ~ 105°C，2520mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接(產品無鉛對應),為無鉛產品.
訂購熱線：0755-27876236
2520貼片有源晶振,ECS-2520Q-30-480-BP-TR，型號：ECS-2520Q系列晶振，編碼為：ECS-2520Q-30-480-BP-TR，頻率：48MHz,尺寸：2.5*2.0mm,工作溫度為：﹣40°C ~ 105°C，2520mm體積的晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接(產品無鉛對應),為無鉛產品.

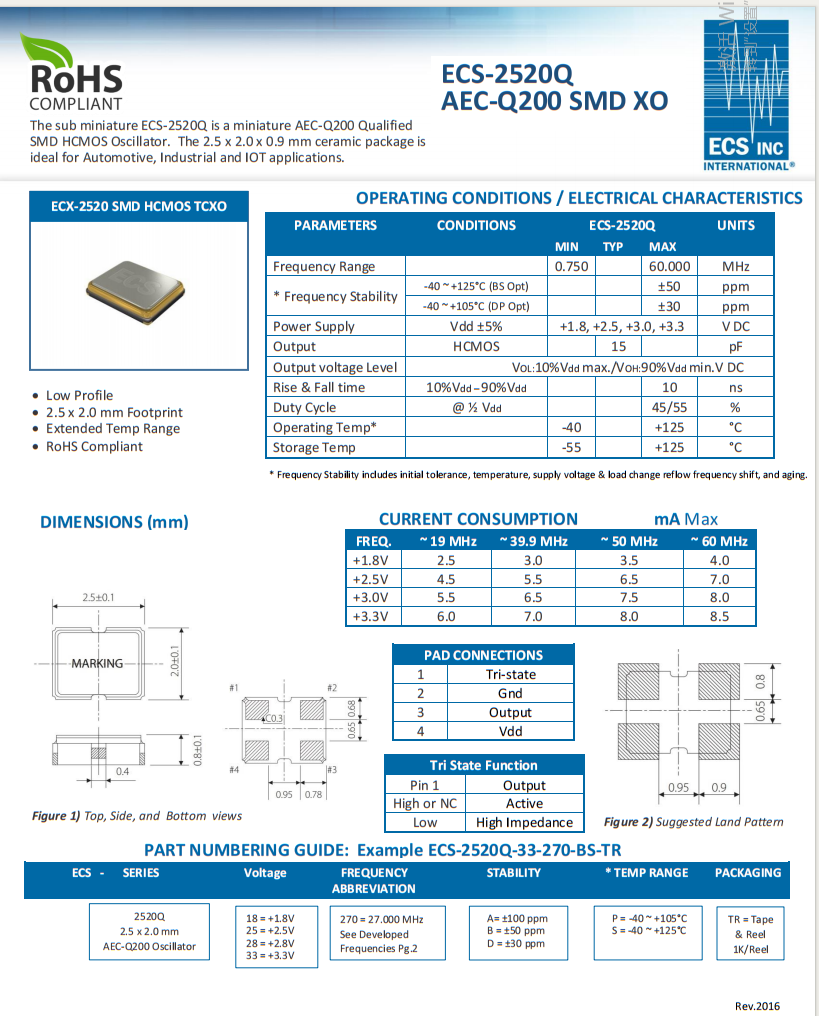

2520貼片有源晶振,ECS-2520Q-30-480-BP-TR，參數表
| PARAMETERS | CONDITIONS | ECS-2520Q | UNITS | ||||||||||||||||||
| MIN | TYP | MAX | |||||||||||||||||||
| Frequency Range |
|
48 | MHz | ||||||||||||||||||
| * Frequency Stability | -40 ~ +125°C (BS Opt) | ±50 | ppm | ||||||||||||||||||
| -40 ~ +105°C (DP Opt) | ±30 | ppm | |||||||||||||||||||
| Power Supply | Vdd ±5% | +1.8, +2.5, +3.0, +3.3 | V DC | ||||||||||||||||||
| Output | HCMOS | 15 | pF | ||||||||||||||||||
| Output voltage Level | VOL:10%Vdd max./VOH:90%Vddmin.V DC | ||||||||||||||||||||
| Rise & Fall time | 10%Vdd – 90%Vdd | 10 | ns | ||||||||||||||||||
| Duty Cycle | @ ½ Vdd | 45/55 | % | ||||||||||||||||||
| Operating Temp* | -40 | +125 | °C | ||||||||||||||||||
| Storage Temp | -55 | +125 | °C | ||||||||||||||||||

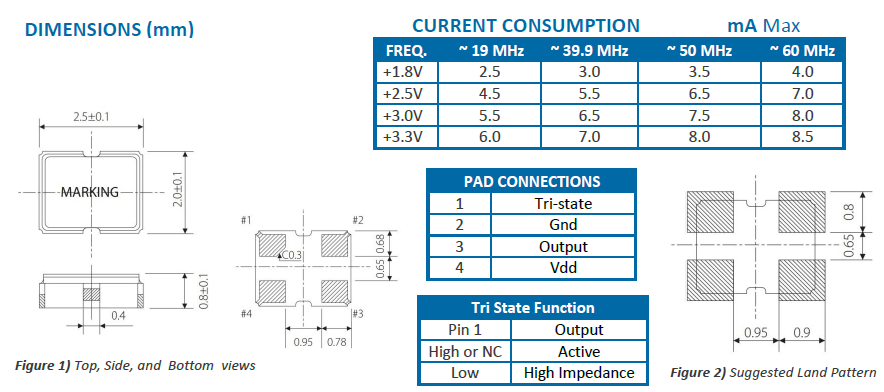

2520貼片有源晶振,ECS-2520Q-30-480-BP-TR，尺寸圖
| Manufacturer Part Number原廠代碼 | 有源ECS貼片晶振 | Series型號 | Frequency 頻率 | Operating Temperature 工作溫度 |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S25-500-FN-TR | ECS 晶振 | ECS-2520S | 50MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-100-FN-TR | ECS 晶振 | ECS-2520S | 10MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-120-FN-TR | ECS 晶振 | ECS-2520S | 12MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-160-FN-TR | ECS 晶振 | ECS-2520S | 16MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-240-FN-TR | ECS 晶振 | ECS-2520S | 24MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-250-FN-TR | ECS 晶振 | ECS-2520S | 25MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-260-FN-TR | ECS 晶振 | ECS-2520S | 26MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-320-FN-TR | ECS 晶振 | ECS-2520S | 32MHz | -40°C ~ 85°C |
| ECS-2520S18-400-FN-TR | ECS 晶振 | ECS-2520S | 40MHz | -40°C ~ 85°C |
