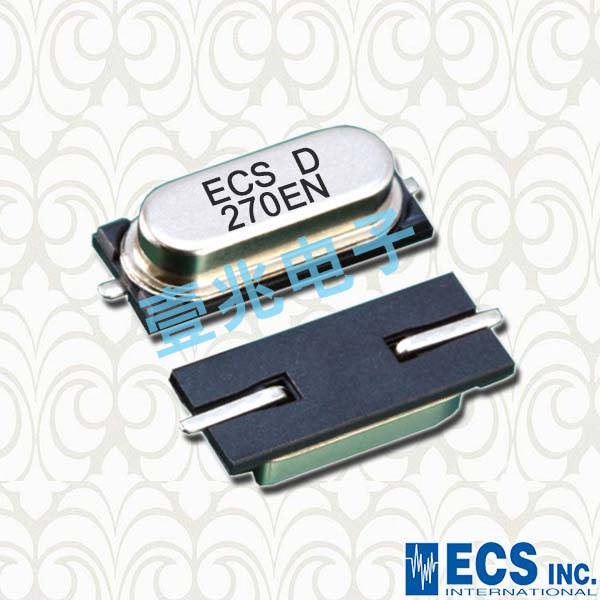

ECS-147.4-20-3X-EN-TR,CSM-3X晶振,7041貼片晶振
頻率:14.7456MHz

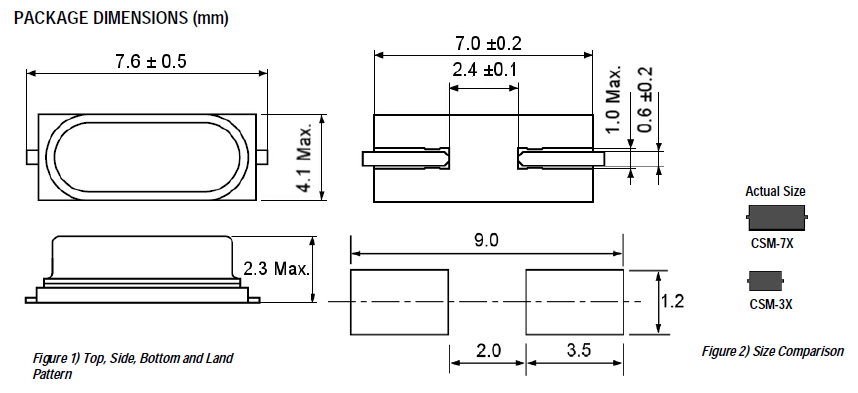

尺寸:7*4.1mm
貼片晶體是目前晶片研磨技術中表面處理技術的最高技術,最終使晶振晶片表面更光潔,平行度及平面度更好,降低諧振電阻,提高Q值.從而達到一般研磨所達不到的產品性能,使石英晶振的等效電阻等更接近理論值,使晶振可在更低功耗下工作.使用先進的牛頓環及單色光的方法去檢測晶片表面的狀態.

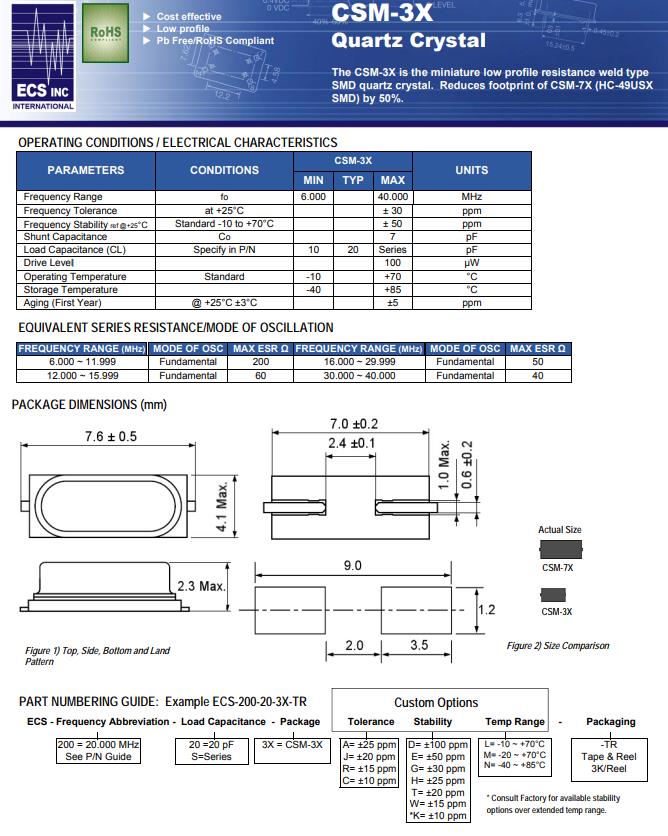

ECS-147.4-20-3X-EN-TR,CSM-3X晶振,7041貼片晶振,參數表
PARAMETERS
CONDITIONS
CSM-3X
UNITS
MIN
TYP
MAX
Frequency
14.756
MHz
Mode of Oscillation
Fundamental
Frequency Tolerance*
@ +25°C
± 30
ppm
Frequency Stability*
-10 ~ +70°C
± 50
ppm
Shunt Capacitance
Co
7
pF
Load Capacitance
Specify in P/N
10
20
Series
pF
Drive Level
DL
100
μW
Operating Temperature*
Topr
-10
+70
°C
Storage Temperature
Tstg
-40
+85
°C
Aging (First Year)
@ +25°C ±3°C
±5
ppm
Manufacturer Part Number原廠編碼 | 貼片石英晶體 | Series型號 | Frequency | Operating Temperature 工作溫度 |
ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
ECS-250-20-3X-TR | ECS 晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
ECS-120-20-3X-TR | ECS 晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
ECS-160-20-3X-TR | ECS 晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
ECS-143-20-3X-TR | ECS 晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
ECS-147.4-20-3X-TR | ECS 晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
ECS-184-20-3X-TR | ECS 晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
ECS-200-20-3X-TR | ECS 晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
ECS-245.7-20-3X-TR | ECS 晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
ECS-286.3-20-3X-EN-TR | ECS 晶振 | CSM-3X | 28.63636MHz | -40°C ~ 85°C |
聯系人:龔成
QQ:769468702
手機:13590198504
郵箱:[email protected]
網站:http://ellentracy.cn
ECS-403.2-S-20A-TR,CSM-8晶振,7050貼片晶振,參數表
PARAMETERS | CONDITIONS | MINIMUM | TYPICAL | MAXIMUM | UNITS | |||||||||||||||||||||||||||
FREQUENCY RANGE | f0 | 9.8 | 100.0 | MHz | ||||||||||||||||||||||||||||
CALIBRATION TOLERANCE | @ +25?C | -30 | +30 | PPM | ||||||||||||||||||||||||||||
FREQUENCY STABILITY, ref @ 25?C | -10 ~ +70?C | -50 | +50 | PPM | ||||||||||||||||||||||||||||
SHUNT CAPACITANCE | C0 | 5.0 | pF | |||||||||||||||||||||||||||||
LOAD CAPACITANCE (CL) | (Customer Specified) | 10.0 | 20.0 standard | Series | pF | |||||||||||||||||||||||||||
DRIVE LEVEL (DL) | 9.8 ~ 100.0MHz | 0.5 | mW | |||||||||||||||||||||||||||||
OPERATING TEMPERATURE | TOPR | -10 | +70 | ℃ | ||||||||||||||||||||||||||||
STORAGE TEMPERATURE | TSTG | -40 | +85 | ℃ | ||||||||||||||||||||||||||||
AGING (FIRST YEAR) | @ +25?C | -5.0 | +5.0 | PPM |
Manufacturer Part Number原廠編碼 | 晶振廠家 | Series型號 | Frequency | Operating Temperature 工作溫度 |
ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
ECS-80-20-20A-TR | ECS 晶振 | CSM-8 | 8MHz | -10°C ~ 70°C |
ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
ECS-240-12-20A-TR | ECS 晶振 | CSM-8 | 24MHz | -10°C ~ 70°C |
ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
ECS-100-S-20A-TR | ECS 晶振 | CSM-8 | 10MHz | -10°C ~ 70°C |
ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
ECS-400-S-20A-TR | ECS 晶振 | CSM-8 | 40MHz | -10°C ~ 70°C |
ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
ECS-200-S-20A-TR | ECS 晶振 | CSM-8 | 20MHz | -10°C ~ 70°C |
ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
ECS-320-S-20A-F-TR | ECS 晶振 | CSM-8 | 32MHz | -10°C ~ 70°C |
ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
ECS-120-20-20A-TR | ECS 晶振 | CSM-8 | 12MHz | -10°C ~ 70°C |
ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
ECS-98.3-20-20A-TR | ECS 晶振 | CSM-8 | 9.8304MHz | -10°C ~ 70°C |
ECS-110.5-S-20A-TR | ECS 晶振 | CSM-8 | 11.0592MHz | -10°C ~ 70°C |
聯系人:龔成
QQ:769468702
手機:13590198504
郵箱:[email protected]
網站:http://ellentracy.cn
采購:ECS-147.4-20-3X-EN-TR,CSM-3X晶振,7041貼片晶振
- *聯系人:
- *手機:
- 公司名稱:
- 郵箱:
- *采購意向:
- *驗證碼:
跟此產品相關的產品 / Related Products
- ECS-147.4-20-3X-EN-TR,CSM-3X晶振,7041貼片晶振
- ECS-147.4-20-3X-EN-TR,CSM-3X晶振,7041貼片晶振,型號:CSM-3X系列晶振,編碼為:ECS-147.4-20-3X-EN-TR,頻率為:14.7456MHz,尺寸:7*4.1mm,工作溫度為:-40°C ~ 85°C,CSM-3X 石英晶振 CSM-3X是小型低輪廓電阻焊接型 貼片石英晶體,減少CSM-7X(HC-49 usx)的占地面積 SMD)減少50%,適用于智能手機,平板電腦,智能家具家電,時鐘鐘表,工業設備,數碼電子,無線晶振,GPS,醫療設備等用途。
貼片晶體是目前晶片研磨技術中表面處理技術的最高技術,最終使晶振晶片表面更光潔,平行度及平面度更好,降低諧振電阻,提高Q值.從而達到一般研磨所達不到的產品性能,使石英晶振的等效電阻等更接近理論值,使晶振可在更低功耗下工作.使用先進的牛頓環及單色光的方法去檢測晶片表面的狀態.
- ECScrystal晶振,貼片晶振,CSM-3X晶振
- 普通石英晶振,外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.
- ECScrystal晶振,貼片晶振,CSM-7X-3L晶振
- 普通石英晶振,外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.
