兩腳貼片晶振,12.87163 KX-327RT晶振,GEYER晶振,
頻率:32.768KHZ

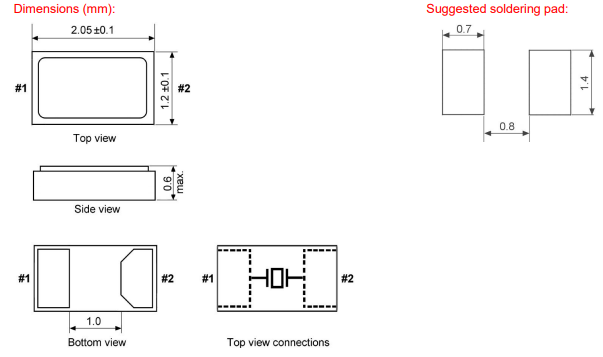

尺寸:2.00mm x 1.20mm
兩腳貼片晶振,12.87163 KX-327RT晶振,GEYER晶振,精度:±20ppm,尺寸:2.00mm x 1.20mm,頻率 32.768KHZ:工作溫度范圍:-40°C ~ 85°C,石英晶體晶振,SDM晶體,醫療設備晶振,電子設備晶振,具有耐磨型,輕薄型特點,應用于:局域網系統晶振,安保系統晶振,普通石英晶振,外觀完全使用陶瓷材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的晶體諧振器,焊接方面支持表面貼裝,外觀采用陶瓷封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.具體解決的辦法是使用高速倒邊方式,
兩腳貼片晶振,12.87163 KX-327RT晶振,GEYER晶振,

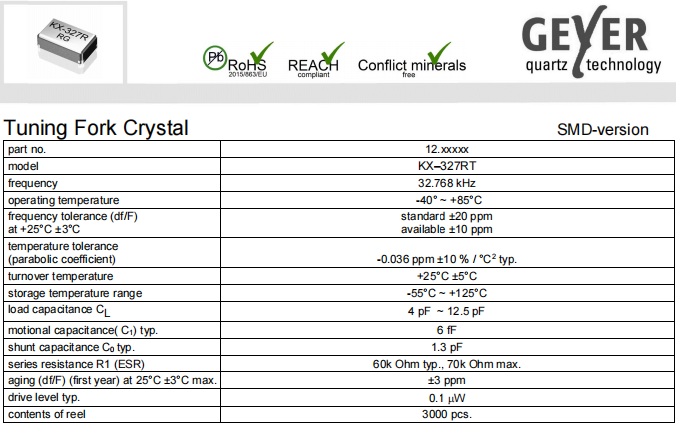

part no.
12.87623
model
KX–327RT貼片晶振
frequency
32.768 kHz
operating temperature
-40° ~ +85°C
frequency tolerance (df/F)
at +25°C ±3°C
standard ±20 ppm
available ± 10 ppm
temperature tolerance
(parabolic coefficient)
-0.036 ppm ±10 % / °C2 typ.
turnover temperature
+25°C ±5°C
storage temperature range
-55°C ~ +125°C
load capacitance CL
4 pF ~ 12.5 pF
motional capacitance( C1 ) typ.
6 fF
shunt capacitance C0 typ.
1.3 pF
series resistance R1 (ESR)
60k Ohm typ., 70k Ohm max.
aging (df/F) (first year) at 25°C ±3°C max.
±3 ppm
drive level typ.
0. 1 山W
contents of reel
3000 pcs.
原廠編碼 | 參數描述 | 供應商 | 型號 | 頻率穩定性 | 工作溫度范圍 |
12.87159 | Geyer 晶振 | CRYSTAL 32.7680kHz 12.5pF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87163 | Geyer 晶振 | CRYSTAL 32.768KHZ 7PF SMD | KX-327RT | ±20ppm | -40°C ~ 85°C |
12.87151 | Geyer 晶振 | CRYSTAL 32.7680kHz 9pF SMD | KX-327NHT | ±30ppm | -40°C ~ 85°C |
12.8717 | 晶振廠家 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327FT | ±20ppm | -40°C ~ 85°C |
12.87148 | Geyer 晶振 | CRYSTAL 32.7680KHZ 7PF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87106 | Geyer 晶振 | CRYSTAL 32.768KHZ 7PF SMD | KX-327XST | ±20ppm | -40°C ~ 85°C |
12.8716 | Geyer 晶振 | CYSTAL 32.7680KHZ 12.5PF SMD | KX-327RT | ±20ppm | -40°C ~ 85°C |
12.87143 | Geyer 晶振 | CRYSTAL 32.768KHz 9pF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.8718 | Geyer 晶振 | Crystal 32.7680kHz 9pF SMD | KX-327NHF | ±20ppm | -40°C ~ 125°C |
12.87147 | Geyer 晶振 | CRYSTAL 32.768KHz 7pF SMD | KX-327NHT | ±10ppm | -40°C ~ 85°C |
12.87081 | Geyer 晶振 | CRYSTAL 32.768KHZ 6PF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87149 | Geyer 晶振 | CRYSTAL 32.7680KHZ 9PF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87156 | Geyer 晶振 | CRYSTAL 32.768KHz 12.5pF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87154 | Geyer 晶振 | CRYSTAL 32.768KHz 12.5pF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87174 | Geyer 晶振 | CRYSTAL 32.768KHz 7pF SMD | KX-327FT | ±20ppm | -40°C ~ 85°C |
12.87114 | Geyer 晶振 | Cystal 32.7680Khz 12.5pF SMD | KX-327ST | ±20ppm | -40°C ~ 85°C |
12.8715 | Geyer 晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327NHT | ±20ppm | -40°C ~ 85°C |
12.87181 | Geyer 晶振 | CRYSTAL 32.7680KHZ 12.5PF SMD | KX-327NHF | ±20ppm | -40°C ~ 125°C |
