Q 0.032768-JTX310-12.5-20-T3-HMR-LF/3215 32.768K 12.5PF -40+125
頻率:32.768KHZ
尺寸:3.2mm*1.5mm

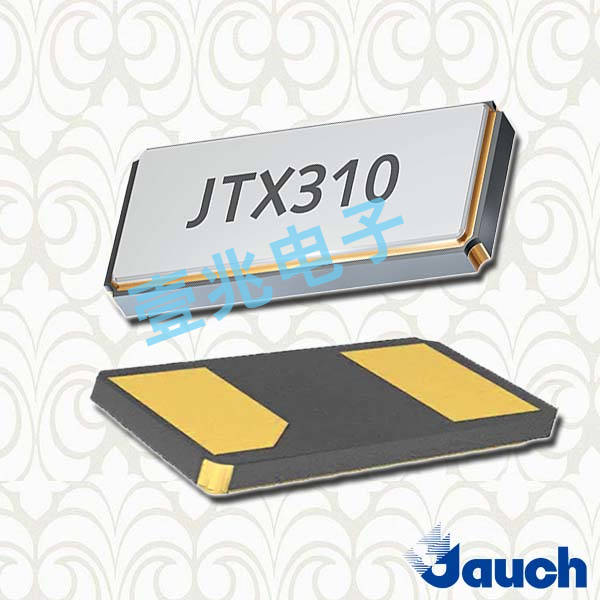

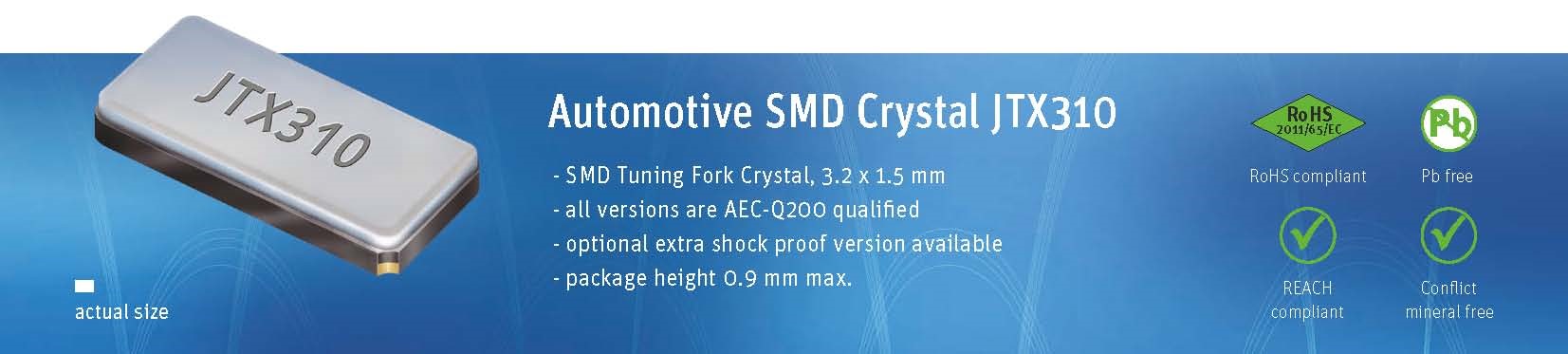

Automotive SMD Crystal JTX310
汽車SMD晶體JTX310
-SMD Tuning Fork Crystal, 3.2 x 1.5 mm
-all versions are AEC-Q200 quali?ed
-optional extra shock proof version available
-package height 0.9 mm max.
SMD音叉水晶,3.2 x 1.5毫米
-所有版本均通過AEC-Q200認證
-可選的額外防震版本
-包裝高度最大0.9 mm
Jauch Quartz 的 JTX310系列 SMD 音叉晶體采用先進的光刻工藝制造。借助這種制造工藝,貼片晶振器件可以將空白尺寸減至最小。JTX310系列晶體采用 3.2 mm x 1.5 mm x 0.9 mm 的微型封裝。特性

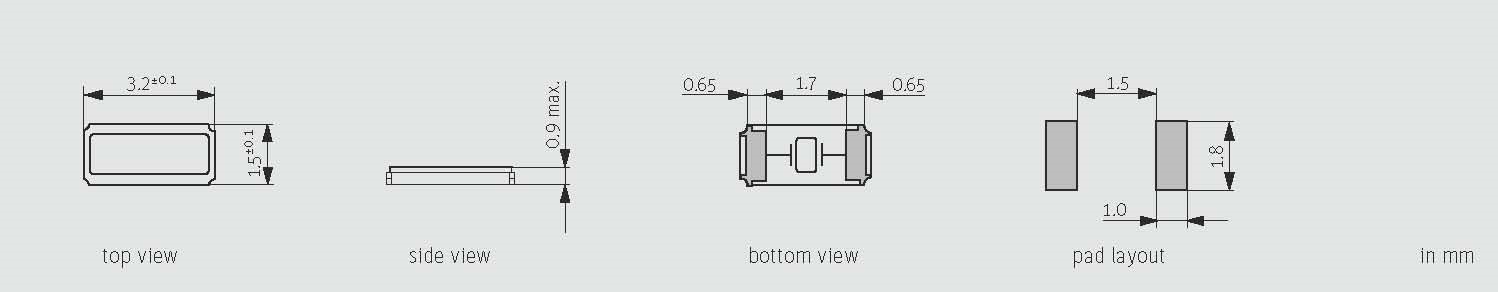

微型封裝:3.2 mm x 1.5 x 0.9 mm(最大)

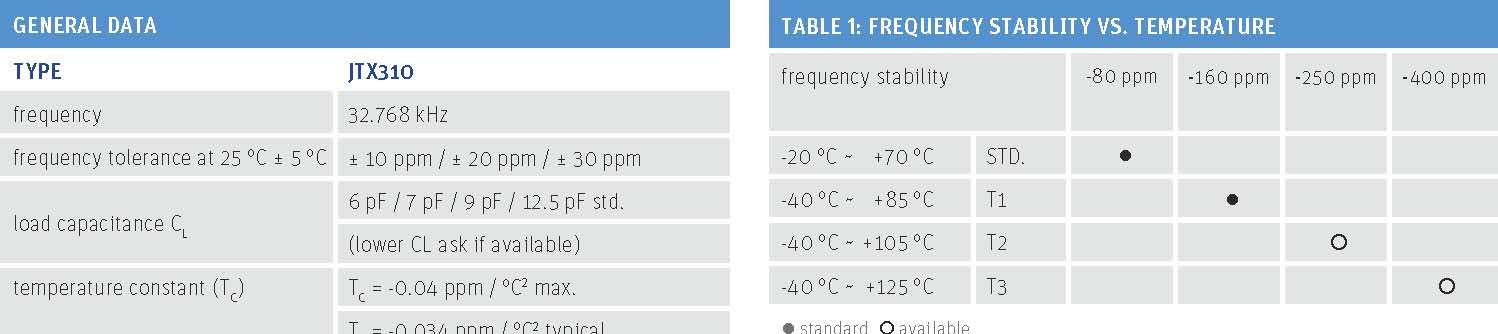

溫度范圍:-40°C 至 +125°C
頻率范圍:32.768 kHz
頻率容差:±20 ppm

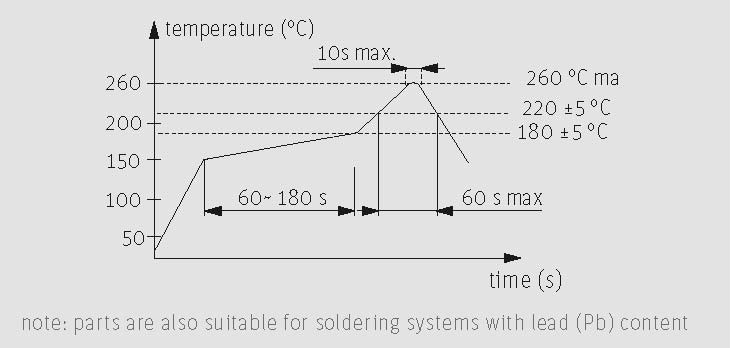

回流焊溫度:+260 °C(最大值)
符合 RoHS 和 REACH 規范
無沖突礦物
應用
物聯網
計量
工業應用
汽車
衛生保健
可穿戴設備和便攜設備 Q 0.032768-JTX310-12.5-20-T3-HMR-LF晶振/3215 32.768K 12.5PF 20PP -40+125℃車規耐高溫晶振/JTX310法國Jauch晶振
|
|
Jauch憑借深入的技術咨詢能力、豐富的應用和認證專業知識、先進的測試環境、高供應和快速產品交付能力,以及世界上最大的頻率發生器件倉庫,奠定了其在行業中的領導地位.Jauch的專家會一直伴您走過從樣品試制到批量生產全過程.從用于標準應用的頻率控制產品到高度穩定、抗沖擊的組件,Jauch晶振中國市場正規代理的產品在您的應用中一直持續可靠地運行著.其針對高技術電池解決方案的現代化電池裝配線可確保為各種應用生產單獨的電池組.這一切都依托其過硬的質量保證體系來保證,這一保證體系在生產開始之前即已啟動.Q 0.032768-JTX310-12.5-20-T3-HMR-LF晶振/3215 32.768K 12.5PF 20PP -40+125℃車規耐高溫晶振/JTX310法國Jauch晶振
Manufacturer Part Number 晶振制造商零件編號 |
Manufacturer 晶振生產商,制造商 |
Series 晶振型號 |
Frequency 晶振頻率 |
Frequency Tolerance 晶振頻差 |
Load Capacitance 晶振負載電容 |
Operating Temperature 晶振溫度 |
Package / Case 晶振腳位 |
Size / Dimension 晶振尺寸 |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-9-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-7-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T1-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 85°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T2-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 105°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
Q 0.032768-JTX310-6-10-T3-HMR-LF | Jauch Quartz | JTX310 | 32.768kHz | ±10ppm | 6pF | -40°C ~ 125°C | 2 | (3.20mm x 1.50mm) |
