簡單看懂的CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC瑞士微晶Micro Crystal晶振編碼代碼

2022-08-05 17:05:14 壹兆電子

CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC晶振,瑞士微晶Micro Crystal晶振編碼代碼

應用程序物聯網測量產業的汽車的衛生保健可穿戴設備,便攜式設備

描述CM7V-T1A是一種低頻SMT石英晶體單元,它包含音叉石英晶體諧振器.它在以下條件下運作帶金屬蓋的密封陶瓷包裝中的真空.特征金錫預制件的出色密封.密封保證了高穩定性和低老化.適用于擴展的工作溫度范圍.體積小,低姿態,重量輕(10.3毫克).高抗沖擊和振動.100%無鉛,符合RoHS標準.提供符合AEC-Q200的汽車認證. CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC晶振,瑞士微晶Micro Crystal晶振編碼代碼

CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-100PPM-40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-10PPM-40/+85C Crystals
CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA MicroCrystal 晶體32.768kHz7.0pF+/-10PPMLOWESR Crystals
CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC MicroCrystal 晶體100.000kHz9.0pF+/-100PPM-40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-100PPM-40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC MicroCrystal 晶體32.768kHz12.5pF100PPM-40/+125C Crystals
CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA MicroCrystal 晶體32.768kHz9.0pF+/-20PPMLOWESR Crystals
CC7V-T1A-32.768k-9pF-20PPM-TB-QA MicroCrystal 晶體32.768kHz9.0pF+/-20PPMAEC-Q200 Crystals
CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC MicroCrystal 晶體32.768kHz7.0pF+/-10PPM-40/+85C Crystals
CM7V-T1A-32.768k-9pF-100PPM-TC-QA MicroCrystal 晶體32.768kHz9.0pF+/-100PPMAEC-Q200 Crystals
CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC MicroCrystal 晶體32.768kHz6.0pF+/-20PPM-40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-100PPM-40/+85C Crystals
CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC MicroCrystal 晶體32.768kHz6.0pF+/-20PPM-40/+85C Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC MicroCrystal 晶體100.000kHz9.0pF+/-100PPM-40/+85C Crystals
CM7V-T1A-32.768k-6pF-20PPM-TB-QA MicroCrystal 晶體32.768kHz6.0pF+/-20PPMAEC-Q200 Crystals
MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au MicroCrystal 晶體32.768kHz12.5pF+/-10PPM-40/+85C Crystals
OV-7605-C8-32.768kHz-20PPM-TA-QC MicroCrystal 標準時鐘振蕩器32.768kHz+/-20PPM-40/+85C ClockOscillators
CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC MicroCrystal 晶體1.8432MHz10.0pF500PPM-55/+125C Crystals
OM-7604-C7-32.768kHz-20PPM-TB-QC MicroCrystal 標準時鐘振蕩器32.768kHz+/-20PPM-40/+125C ClockOscillators
CC4V-T1A-32.768k-9pF-20PPM-TC-QA MicroCrystal 晶體32.768kHz9.0pF+/-20PPMAEC-Q200 Crystals
MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au MicroCrystal 晶體32.768kHz6.0pF+/-10PPM-40/+85C Crystals
OV-7604-C7-32.768k-10PPM-TB-QA MicroCrystal 標準時鐘振蕩器32.768kHz+/-10PPM-40/+125CAEC-Q200 ClockOscillators
OV-7604-C7-32.768k-20PPM-TA-QA MicroCrystal 標準時鐘振蕩器32.768kHz+/-20PPM-40/+85C ClockOscillators
CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC MicroCrystal 晶體1.000MHz10.0pF+/-100PPM-40/+85C Crystals
CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC MicroCrystal 晶體153.600kHz9.0pF+/-30PPM-40/+85C Crystals
CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC MicroCrystal 晶體307.200kHz4.0pF100PPM-55/+125C Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC MicroCrystal 晶體1.8432MHz10.0pF+/-100PPM-40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC MicroCrystal 晶體1.8432MHz10.0pF100PPM-55/+125C Crystals
CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC MicroCrystal 晶體40.0000kHz12.5pF+/-20PPM-40/+85C Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA MicroCrystal 晶體32.768kHz12.5pF+/-20PPMAEC-Q200 Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA MicroCrystal 晶體32.768kHz12.5pF+/-20PPMAEC-Q200 Crystals
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC MicroCrystal 晶體32.768kHz9.0pF+/-10PPM-55/+125C Crystals
CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-100PPM-40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-20PPM-40/+85C Crystals
CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC MicroCrystal 晶體1.8432MHz10.0pF+/-500PPM-40/+85C Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC MicroCrystal 晶體1.2288MHz10.0pF+/-100PPM-40/+85C Crystals
CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC MicroCrystal 晶體1.2288MHz10.0pF100PPM-55/+125C Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC MicroCrystal 晶體40.000kHz9.0pF+/-30PPM-55/+125C Crystals
CC4V-T1A-32.768k-9pF-20PPM-TA-QA MicroCrystal 晶體32.768kHz9.0pF+/-20PPMAEC-Q200 Crystals
CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA MicroCrystal 晶體32.768kHz12.5pF+/-20PPMAEC-Q200 Crystals
MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au MicroCrystal 晶體32.768kHz8.2pF+/-20PPM-40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC MicroCrystal 晶體32.768kHz12.5pF+/-20PPM-55/+125C Crystals
CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC MicroCrystal 晶體32.768kHz10.0pF+/-20PPM-40/+85C Crystals
OV-7604-C7-32.768kHz-10PPM-TA-QC MicroCrystal 標準時鐘振蕩器32.768kHz+/-10PPM-40/+85C ClockOscillators
OV-0100-C7-100.000kHz-50PPM-TA-QC MicroCrystal 標準時鐘振蕩器100.0kHz+/-50PPM-40/+85C ClockOscillators
CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC MicroCrystal 晶體307.200kHz4.0pF+/-100PPM-40/+85C Crystals
CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC MicroCrystal 晶體32.768kHz12.5pF+/-30PPM-40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-30PPM-40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC MicroCrystal 晶體32.768kHz9.0pF+/-15PPM-40/+85C Crystals
CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC MicroCrystal 晶體32.768kHz9.0pF+/-30PPM-55/+125C Crystals
CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC MicroCrystal 晶體1.000MHz10.0pF+/-100PPM-40/+85C Crystals
CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC MicroCrystal 晶體2.000MHz10.0pF+/-100PPM-40/+85C Crystals
CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC MicroCrystal 晶體40.000kHz9.0pF+/-30PPM-40/+85C Crystals
200125-PL08 MicroCrystal 晶體32.768kHz7pF+/-10PPM-40C+85C Crystals
OM-7605-C8-20PPM-TA-QA MicroCrystal 標準時鐘振蕩器32.768kHz20ppm1.6-5.5V ClockOscillators
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA MicroCrystal 晶體32.768kHz7.0pF+/-20PPMAEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TA-QAT3 MicroCrystal 晶體32.768kHz9.0pF+/-20PPMAEC-Q200 Crystals

標準頻率32.768千赫/100.000千赫1)FL32.768千赫負載電容2)CL6.0/7.0/9.0/12.5pF

頻率容差3)δF/F20ppmδF/F100ppm典型串聯電阻./max.50/70千歐電阻典型動態電容.C13.7fF典型靜態電容.C01.2pF最大驅動水平.P1.0μW最小絕緣電阻.ri500mω老化第一年最大值.δF/F3ppm翻轉溫度T025±5℃頻率與溫度的關系δF/F00.035ppm/°C(T-T0)2±10%ppm CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC晶振,瑞士微晶Micro Crystal晶振編碼代碼

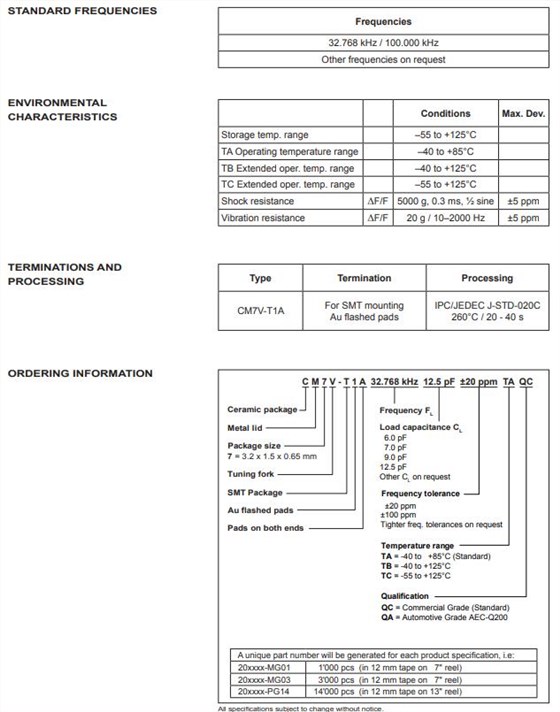

QQ截圖20220805162852

1)根據要求提供其他頻率.

2)根據要求的其他負載電容.

3)根據要求更嚴格的頻率容差.

儲存溫度.范圍–55+125攝氏度

TA工作溫度范圍–40+85°C

TB擴展操作.在…之時范圍–40+125攝氏度

TC擴展操作.在…之時范圍–55+125攝氏度

耐沖擊性δF/F5000g,0.3ms,正弦5ppm

抗振性δF/F20g/102000Hz±5ppm

32.768千赫/100.000千赫

根據要求提供其他頻率

CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC晶振,瑞士微晶Micro Crystal晶振編碼代碼

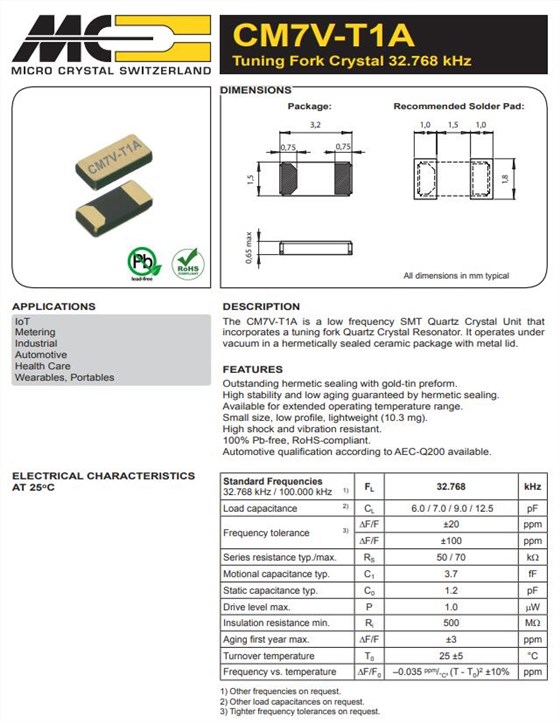

QQ截圖20220805162909
