ECS Inc.晶振集團成為市場領導者提供創新、先進的壓電石英晶體元器件、壓電石英晶體、有源晶振等頻率控制組件解決方案到電信、工業、公用事業、導航、汽車、電子、航空航天和醫療與一流的制造行業的基于石英晶體/過濾器,時鐘振蕩器、陶瓷諧振器/過濾器和其他基于壓電的產品.ECS inc .以迅速擴大的市場部門的多元化產品基礎,熱情關注客戶和市場趨勢,調動企業的力量,為世界各地的客戶提供一貫的卓越服務.

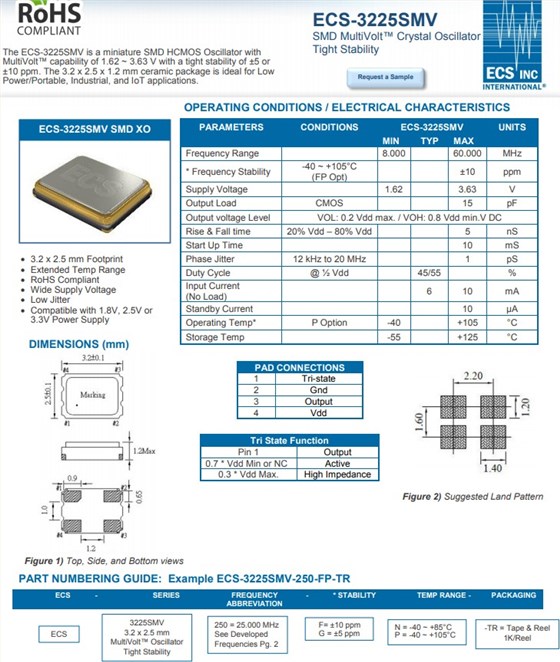

ECS晶振ECS-3225SMV是一款微型SMD HCMOS晶體振蕩器，低功耗、固定頻率、低抖動、MultiVolt表面貼裝晶體振蕩器。具有 MultiVolt能力為1.62V至3.63V，緊密穩定性為±5或10ppm，采用3.2x2.5x1.2mm (LWH)封裝，以節省電路板空間。MultiVolt特性允許客戶將同一器件用于多種設計，從而降低認證要求和庫存。ECS-3225SMV-250-FP-TR非常適合低功耗便攜式、工業和物聯網應用。
ECS-3225SMV-250-FP-TR非常適合低功耗便攜式工業和物聯網應用
特點:
小體積尺寸：3.2x2.5mm石英晶體振蕩器
多伏1.6V至3.63V
兼容1.8V、2.5V或3.3V電源
低抖動:1pS
符合RoHS 2和REACH標準
MSL 1號
鉛飾面金
FN選項：10ppm，-40℃至+85℃
FP選項：10ppm，-40℃至+105℃
GP選項：5ppm，-40℃至+105℃
應用：物聯網，存儲設備，集裝箱卸貨與傳輸系統，航行，醫療(非維持生命)，移動設備，產業的，無線設備，通用微處理器，測試設備，IP攝像機
| 原廠代碼 | 品牌 | 型號 | 頻率 | 工作溫度 |
| ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-260-FN-TR | ECS Crystal | ECS-3225S | 26MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECSCrystal晶振 | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S33-400-FN-TR | ECS Crystal | ECS-3225S | 40MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S25-250-FN-TR | ECS Crystal | ECS-3225S | 25MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-160-FN-TR | ECS Crystal | ECS-3225S | 16MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-200-FN-TR | ECS Crystal | ECS-3225S | 20MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-240-FN-TR | ECS Crystal | ECS-3225S | 24MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| ECS-3225S18-270-FN-TR | ECS Crystal | ECS-3225S | 27MHz | -40°C ~ 85°C |
| 圖片 | 編碼 | 頻率 | 頻率穩定性 | 工作溫度 |
|
|
ECS-3225SMV-100-FP-TR | 10 MHz | ±10ppm | -40°C ~ +105°C |
|
|
ECS-3225SMV-100-GP-TR | 10 MHz | ±5ppm | -40°C ~ +105°C |
|
|
ECS-3225SMV-120-FP-TR | 12 MHz | ±10ppm | -40°C ~ +105°C |
|
|
ECS-3225SMV-160-FP-TR石英晶振 | 16 MHz | ±10ppm | -40°C ~ +105°C |
|
|
ECS-3225SMV-192-FP-TR | 19.2 MHz | ±10ppm | -40°C ~ +105°C |
|
|
ECS-3225SMV-240-FP-TR | 24 MHz | ±10ppm | -40°C ~ +105°C |
|
|
ECS-3225SMV-250-FP-TR | 25 MHz | ±10ppm | -40°C ~ +105°C |
