華為手機Mate50和蘋果手機iPhone14與谷歌衛星通信6G的SG-210STF愛普生晶振X1G004171003400
之前爆料在臺灣計劃搞6G防大陸斷網、蘋果iPhone14支持衛星連接功能之后,9月份市場又有消息美國谷歌Google或通過Android14大版本更新引入對衛星連接功能的支持愛普生晶振.9月華為正式發布的Mate50已經確認具備此前余承東所說的(向上捅破天)的衛星通信功能.至此全球三大科技巨頭華為、蘋果、谷歌都確認或傳言即將在他們各自的移動終端中支持衛星通信功能.
其中涉及到臺灣欲搞6G防大陸斷網、華為、蘋果、谷歌決戰衛星通信,移動通信單6G等話題.現在僅談技術和趨勢,其他相關討論在分析.全球6G產業研究分析系列,該系列將從6G開始出現的小現象逐步深入探究它對我們生活的影響,日本進口晶振在全球科技脫鉤之下全球各國6G的現狀和布局,6G對半導體行業和產業鏈的影響,6G概念上市公司的分析以及6G與5G的交錯進程等等.

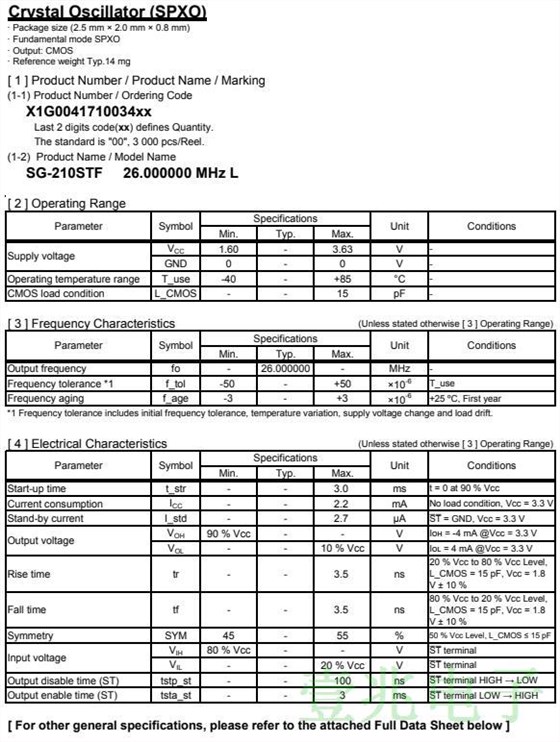

SG-210STF愛普生晶振X1G004171003400,華為手機Mate50和蘋果手機iPhone14晶振,谷歌衛星通信6G晶振
愛普生有源晶振編碼
型號
頻率
長X寬X高
輸出波
電源電壓
工作溫度
頻差
X1G004171000900
SG-210STF
4.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171001500
SG-210STF
8.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171001600
SG-210STF
10.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171001800
SG-210STF
12.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171001900
SG-210STF
12.288000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171002500
SG-210STF
14.745600MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171002700
SG-210STF
16.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171002900
SG-210STF
20.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171003100
SG-210STF
24.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171003200
SG-210STF
24.576000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171003300
SG-210STF
25.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171003400
SG-210STF
26.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171003500
SG-210STF
27.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171004000
SG-210STF
32.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171004500
SG-210STF
40.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171004600
SG-210STF
48.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171004700
SG-210STF
50.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-50ppm
X1G004171005900
SG-210STF
25.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171006100
SG-210STF
12.288000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
X1G004171006900
SG-210STF
8.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171007500
SG-210STF
33.333300MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
X1G004171007700
SG-210STF
25.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
X1G004171007800
SG-210STF
48.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
X1G004171007900
SG-210STF
50.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-20to70°C
+/-25ppm
衛星通信將是6G必不可少的一部分,同時華為被美國制裁之后,高端5G芯片不能制造和購買,造成消費者營收下滑手機銷量下跌嚴重.但是目前5G的應用其實還沒有爆發,有源晶振大部分4G已經夠用.如果華為能通過短報文衛星通信功能在Mate50及之后的機型中使其手機終端得到延續和傳承,并在某些市場實現快速逆襲,或許能夠再次搶占制銷售高點.華為能否在消費終端市場再次實現銷量市場占有率,我們期待馬上要見分曉!
SG-210STF愛普生晶振X1G004171003400,華為手機Mate50和蘋果手機iPhone14晶振,谷歌衛星通信6G晶振
