移動通信機電路框圖及其TCXO外觀由于TCXO具有較高的頻率穩定度,而且體積小,在小電流下能夠快速啟動,其應用領域重點擴展到移動通信系統.

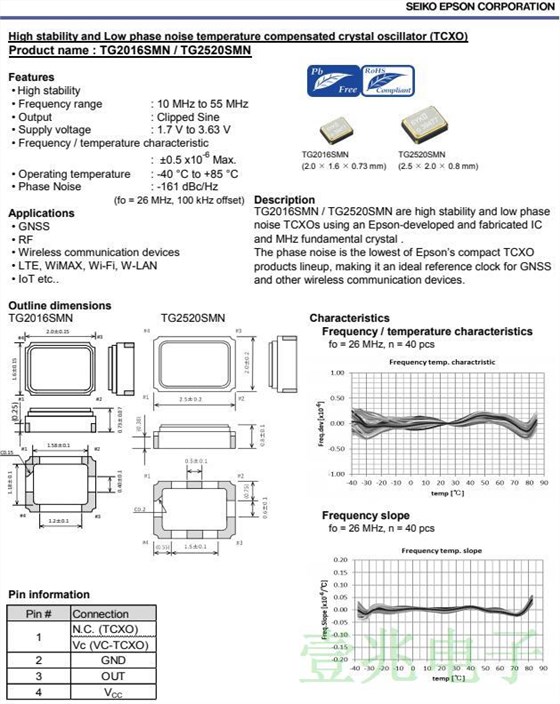

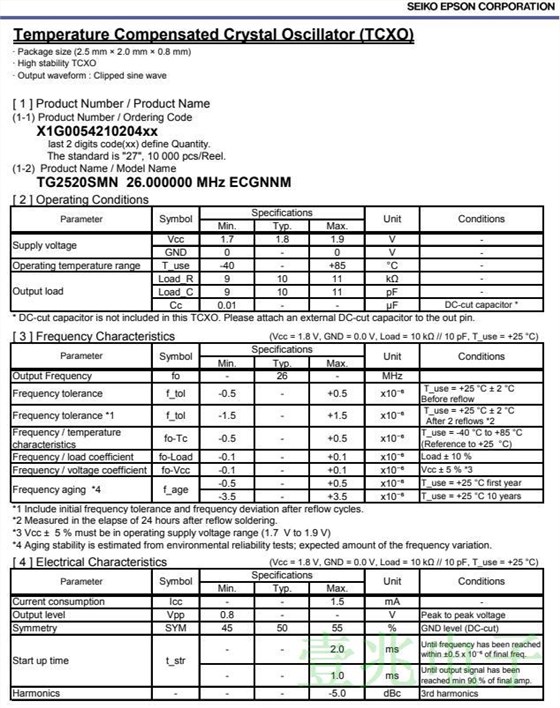

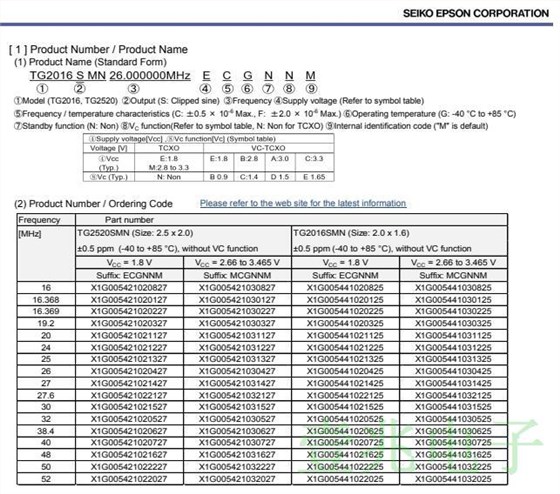

為移動通信機射頻(RF)電路框圖.愛普生晶振TCXO作為基準振蕩器為發送信道提供頻率基準,同時作為接收通道的第一級本機振蕩器;另一只TCXO作為第2級本機振蕩器,將其振蕩信號輸入到第2變頻器.移動電話要求的頻率穩定度為0.1~2.5ppm(-30~+75℃),但出于成本上的考慮,通常選用的規格為1.5~2.5ppm.移動電話用12~20MHz的TCXO代表性產品之一是VC-TCXO-201C1,采用直接補償方式.X1G005421020400愛普生溫補晶振,TCXO溫度石英晶體振蕩器
TCXO的溫度補償方式對石英晶體振子頻率溫度漂移的補償方法主要有直接補償和間接補償兩種類型:
