愛普生晶振為開發和型號替換用戶提供SG-8018系列X1G005591027900可編程石英晶振
特別適合對交貨周期有嚴格要求的客戶,以及對于新產品開發要求快速響應,包括不常用頻率的晶振也能快速批量交付的客戶.有效解決中國電子企業在新品研發中經常出現的樣品難找、標準頻率少、批量供貨交期長等難題,滿足低成本、大批量、個性化頻率定制服務.
愛普生SG-8018系列是新一代石英可編程晶振,愛普生晶振具有低成本、可定制頻率、快速交付、高穩定性、寬溫級、低功耗、規格豐富等特點,可以替換目前中國市場上大部分常規有源晶振SPXO.

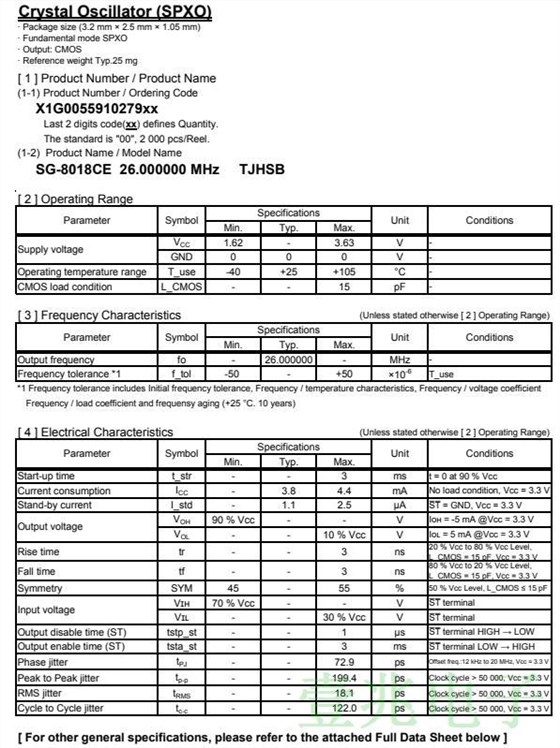

愛普生晶振SG-8018,X1G005591027900可編程石英晶振
愛普生有源晶振編碼
型號
頻率
長X寬X高
輸出波
電源電壓
工作溫度
頻差
最大值
X1G005591027500
SG-8018CE
33.300000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591027600
SG-8018CE
66.667000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591027700
SG-8018CE
15.625000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591027800
SG-8018CE
2.097152MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591027900
SG-8018CE
26.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028000
SG-8018CE
14.318180MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591028100
SG-8018CE
36.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028200
SG-8018CE
121.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤6.7mA
X1G005591028300
SG-8018CE
72.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591028400
SG-8018CE
36.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028500
SG-8018CE
33.333000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028600
SG-8018CE
120.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤6.7mA
X1G005591028700
SG-8018CE
12.582900MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591028800
SG-8018CE
26.664000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591028900
SG-8018CE
33.333333MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029000
SG-8018CE
8.890000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029100
SG-8018CE
20.160000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029200
SG-8018CE
47.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029300
SG-8018CE
11.400000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029400
SG-8018CE
52.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591029500
SG-8018CE
12.600000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029600
SG-8018CE
66.666600MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591029700
SG-8018CE
25.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029800
SG-8018CE
10.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
用戶可以在以下參數內任選自己需要的樣品(數量≤10Pcs,特殊需求另議):
?尺寸:7050、5032、3225、2520
?頻率:0.67~170MHz范圍內任意頻率
?電壓:1.8V,2.5V,3.3V(1.62V~3.63V)
?精度:50ppm(已包含十年內老化率)
?工作溫度:-40℃~+105℃
?功能:使能(OE)或待機(ST)
?輸出方式:CMOS
愛普生進一步達成合作,日本進口晶振確定將國內第一套SG-8018系列有源晶振全自動燒錄、檢測、激光刻字、編帶設備落戶于綜合基地正式投入批量生產.這將大幅度縮短有源晶振的交付時間,由目前的8~12周縮短為3個工作日.
愛普生晶振SG-8018,X1G005591027900可編程石英晶振
