Abracon's oscillator broad product offerings include standard XO, VCXO, TCXO, OCXO, VCTXO, VCOCXO and MEMS types with SMD or through-hole mounting. The collection includes options optimized for small size, long battery life, ultra-low noise performance, and industrial temperature stability & durability, and precision timing.
Abracon的有源晶體振蕩器產品種類繁多,包括標準 XO、VCXO、TCXO、OCXO、VCTXO、VCOCXO 和具有 SMD 或通孔安裝的 MEMS 類型。該系列包括針對小尺寸、長電池壽命、超低噪聲性能、工業溫度穩定性和耐用性以及精確計時而優化的選項。Abracon晶振開發AX5系列的有源振蕩器AX5PAF1-26.00000,支持差分輸出
ASG-C-X-A-38.880MHZ | Abracon晶振 | ASG-C | XO (Standard) | 38.88MHz | 3.3V | -40°C ~ 85°C |
ASG-C-X-A-50.000MHZ | Abracon晶振 | ASG-C | XO (Standard) | 50MHz | 3.3V | -40°C ~ 85°C |
ASG-C-X-B-10.000MHZ | Abracon晶振 | ASG-C | XO (Standard) | 10MHz | 2.5V | -40°C ~ 85°C |
ASG-C-X-B-19.200MHZ | Abracon晶振 | ASG-C | XO (Standard) | 19.2MHz | 2.5V | -40°C ~ 85°C |
ASG-C-X-B-19.440MHZ | Abracon晶振 | ASG-C | XO (Standard) | 19.44MHz | 2.5V | -40°C ~ 85°C |
ASG-C-X-B-20.000MHZ | Abracon晶振 | ASG-C | XO (Standard) | 20MHz | 2.5V | -40°C ~ 85°C |
ASG-C-X-B-24.576MHZ | Abracon晶振 | ASG-C | XO (Standard) | 24.756MHz | 2.5V | -40°C ~ 85°C |
ASG-C-X-B-25.000MHZ | Abracon晶振 | ASG-C | XO (Standard) | 25MHz | 2.5V | -40°C ~ 85°C |
ASG-C-X-B-38.880MHZ | Abracon晶振 | ASG-C | XO (Standard) | 38.88MHz | 2.5V | -40°C ~ 85°C |
ASVMX-100.000MHZ-5ABA | Abracon晶振 | ASVMX | XO (Standard) | 100MHz | 2.375 V ~ 3.63 V | -40°C ~ 85°C |
ASG-ULJ-156.250MHZ-514613-T2 | Abracon晶振 | ASG-ULJ | XO (Standard) | 156.25MHz | 3.3V | -40°C ~ 85°C |
ASG-ULJ-156.250MHZ-514644-T2 | Abracon晶振 | ASG-ULJ | XO (Standard) | 156.25MHz | 2.5V | -40°C ~ 85°C |
ASEMB-16.384MHZ-C-T | Abracon晶振 | Pure Silicon™ ASEMB | MEMS (Silicon) | 16.384MHz | 1.8 V ~ 3.3 V | 0°C ~ 70°C |
ASG-ULJ-114.285-MHZ-512382-T2 | Abracon晶振 | ASG-ULJ | XO (Standard) | 114.285MHz | - | - |
ASG-ULJ-98.304-MHZ-509595-T2 | Abracon晶振 | ASG-ULJ | XO (Standard) | 98.304MHz | 3.3V | -40°C ~ 85°C |
ABLJO-80.000MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 80MHz | 3.3V | -40°C ~ 85°C |
ABLJO-81.920MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 81.92MHz | 3.3V | -40°C ~ 85°C |
ABLJO-92.160MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 92.16MHz | 3.3V | -40°C ~ 85°C |
ABLJO-96.000MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 96MHz | 3.3V | -40°C ~ 85°C |
ABLJO-98.304MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 98.304MHz | 3.3V | -40°C ~ 85°C |
ABLJO-100.000MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 100MHz | 3.3V | -40°C ~ 85°C |
ABLJO-106.250MHZ-T | Abracon晶振 | ABLJO | XO (Standard) | 106.25MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-A-1000.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 1GHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-A-120.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 120MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-A-320.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 320MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-A-500.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 500MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-A-644.53125MHZ-T | Abracon晶振 | ASG2-D | VCXO | 644.53125MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-A-698.812334MHZ-T | Abracon晶振 | ASG2-D | VCXO | 698.812334MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-V-B-1000.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 1GHz | 2.5V | -40°C ~ 85°C |
ASG2-D-V-B-120.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 120MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-V-B-320.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 320MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-V-B-500.000MHZ-T | Abracon晶振 | ASG2-D | VCXO | 500MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-V-B-644.53125MHZ-T | Abracon晶振 | ASG2-D | VCXO | 644.53125MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-V-B-698.812334MHZ-T | Abracon晶振 | ASG2-D | VCXO | 698.812334MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-X-A-1000.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 1GHz | 3.3V | -40°C ~ 85°C |
ASG2-D-X-A-120.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 120MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-X-A-320.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 320MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-X-A-500.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 500MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-X-A-644.53125MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 644.53125MHz | 3.3V | -40°C ~ 85°C |
(200fs MAX, F>250MHz); spurs included
Available with any frequency from 50MHz to 2100MHz
Factory programmable; samples available within 1-2 week
lead times
Lowest in-class power consumption (60mA Typ LVDS)
±20ppm stability (-40 to +85ºC)
3.3V, 2.5V, 1.8V Vdd supply
LVPECL, LVDS, HCSL, & CML differential output options
Industry standard 5.0 x 3.2mm footprint
ASG2-D-X-A-698.812334MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 698.812334MHz | 3.3V | -40°C ~ 85°C |
ASG2-D-X-B-1000.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 1GHz | 2.5V | -40°C ~ 85°C |
ASG2-D-X-B-120.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 120MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-X-B-320.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 320MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-X-B-500.000MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 500MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-X-B-644.53125MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 644.53125MHz | 2.5V | -40°C ~ 85°C |
ASG2-D-X-B-698.812334MHZ-T | Abracon晶振 | ASG2-D | XO (Standard) | 698.812334MHz | 2.5V | -40°C ~ 85°C |
ASG2-LJ-212.500MHZ-513285-T | Abracon晶振 | ASG2-LJ | XO (Standard) | 212.5MHz | 3.3V | -40°C ~ 85°C |
ASG2-LJ-212.500MHZ-513294-T | Abracon晶振 | ASG2-LJ | XO (Standard) | 212.5MHz | 2.5V | -40°C ~ 85°C |
ASG2-P-V-A-1000.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 1GHz | 3.3V | -40°C ~ 85°C |
ASG2-P-V-A-120.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 120MHz | 3.3V | -40°C ~ 85°C |
ASG2-P-V-A-320.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 320MHz | 3.3V | -40°C ~ 85°C |
ASG2-P-V-A-500.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 500MHz | 3.3V | -40°C ~ 85°C |
ASG2-P-V-A-644.53125MHZ-T | Abracon晶振 | ASG2-P | VCXO | 644.53125MHz | 3.3V | -40°C ~ 85°C |
ASG2-P-V-A-698.812334MHZ-T | Abracon晶振 | ASG2-P | VCXO | 698.812334MHz | 3.3V | -40°C ~ 85°C |
ASG2-P-V-B-1000.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 1GHz | 2.5V | -40°C ~ 85°C |
ASG2-P-V-B-120.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 120MHz | 2.5V | -40°C ~ 85°C |
ASG2-P-V-B-320.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 320MHz | 2.5V | -40°C ~ 85°C |
ASG2-P-V-B-500.000MHZ-T | Abracon晶振 | ASG2-P | VCXO | 500MHz | 2.5V | -40°C ~ 85°C |
ASG2-P-V-B-644.53125MHZ-T | Abracon晶振 | ASG2-P | VCXO | 644.53125MHz | 2.5V | -40°C ~ 85°C |

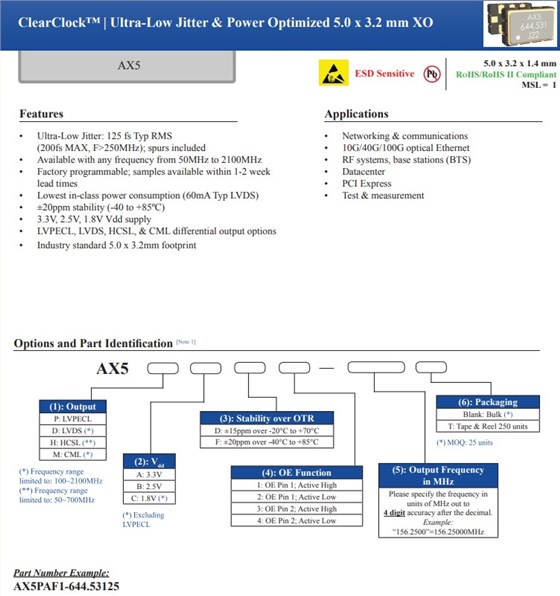

Abracon推出的ClearClock™|超低抖動和功率優化5.0 x 3.2 mm XO時鐘晶體振蕩器 超低抖動:125 fs典型均方根
(200 fs馬克斯,F > 250 mhz);包括熱刺
可與任何從50兆赫到2100兆赫頻率
工廠可編程;樣品可在1-2周內提供交貨期
同類最低功耗(60mA典型LVDS)
±20ppm穩定性(-40到+85ºC)
3.3 v, 2.5 v, 1.8 v低Vdd供應
LVPECL, LVDS, HCSL和CML差分輸出選項
工業標準5.0 x 3.2mm占地面積
應用程序
網絡與通信
10G/40G/100G光以太網
射頻系統,基站(BTS)
數據中心
串行總線
測試和測量
