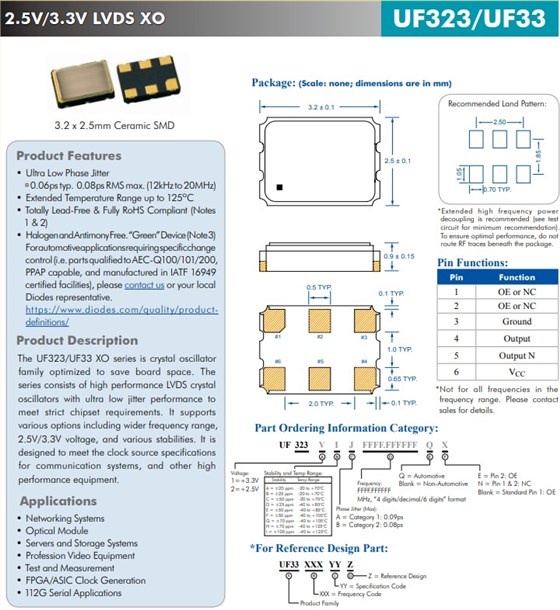

百利通亞陶晶振UF323/UF33 XO系列是經過優化的晶體振蕩器系列,可節省電路板空間。該系列由具有超低抖動性能的高性能LVDS晶體振蕩器組成,可滿足嚴格的芯片組要求。它支持多種選擇,包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
特征:
超低相位抖動石英晶振
0.06ps 典型值。0.08ps RMS最大值(12kHz至20MHz)
擴展溫度范圍高達125℃
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序:
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC時鐘生成
112G 串行應用
高性能LVDS晶體振蕩器UF323/UF33 XO系列,UF3231FB0156.250000,振蕩器,ECERA小體積晶振
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7021D0622.080000
Diodes Incorporated
SaRonix-eCera™ NX
622.08MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
NX7031D0644.531250
Diodes Incorporated
SaRonix-eCera™ NX
644.53125MHz
±25ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF7021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
WF9021B0622.080000
Diodes Incorporated
SaRonix-eCera™ WF
622.08MHz
±5ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270040
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±25ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
KD3270046Z
Diodes Incorporated
SaRonix-eCera™ KD
32.768kHz
±50ppm
-40°C ~ 85°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
JX5011C0056.000000
Diodes Incorporated
SaRonix-eCera™ JX
56MHz
±50ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
KK3270050
Diodes Incorporated
SaRonix-eCera™ KK
32.768kHz
±25ppm
-20°C ~ 70°C
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
JT255CF0026.000000
Diodes Incorporated
SaRonix-eCera™ JT
26MHz
±500ppb
-30°C ~ 85°C
JT255CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb | -30°C ~ 85°C |
FRBST1061 | Diodes Incorporated | SaRonix-eCera™ FR | 61.44MHz | ±50ppm | -40°C ~ 85°C |
JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
JT2551T0039.000000 | Diodes Incorporated | SaRonix-eCera™ JT | 39MHz | ±2.5ppm | -40°C ~ 85°C |
KM3270004 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm | -40°C ~ 85°C |
FK2500021 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
FN4000159 | Diodes Incorporated | SaRonix-eCera™ FN | 40MHz | ±50ppm | -40°C ~ 85°C |
FK0800003 | Diodes Incorporated | SaRonix-eCera™ FK | 8MHz | ±50ppm | -20°C ~ 70°C |
PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
PRBST1122 | Diodes Incorporated | SaRonix-eCera™ FR | 122.88MHz | ±50ppm | -40°C ~ 85°C |
KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
KJ3270001 | Diodes Incorporated | SaRonix-eCera™ KJ | 32.768kHz | ±25ppm | -40°C ~ 85°C |
FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
FK2500022 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 85°C |
FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm | -40°C ~ 85°C |
FK5000013 | Diodes Incorporated | SaRonix-eCera™ FK | 50MHz | ±50ppm | -40°C ~ 85°C |
FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
FD2500050 | Diodes Incorporated | SaRonix-eCera™ FD | 25MHz | ±50ppm | -20°C ~ 70°C |
FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
FDSAS2062 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 62.5MHz | ±50ppm | -20°C ~ 70°C |
FK1200011 | Diodes Incorporated | SaRonix-eCera™ FK | 12MHz | ±50ppm | -40°C ~ 85°C |

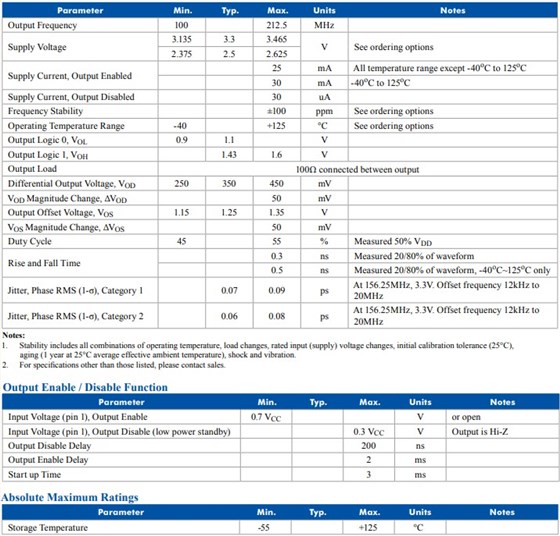

Product Parameters
