HX701系列晶體振蕩器小體積尺寸7050mm晶振,HX7011C0025.000000,晶體振蕩器,ECERA有源晶振

2022-07-06 10:12:37 壹兆電子

DIODES百利通亞陶晶振所生產的石英晶振,貼片晶振,有源晶體振蕩器,壓電石英晶體元器件、壓電石英晶體、有源晶體廣泛應用于智能設備,汽車電子,無線通訊,網絡通信,精密儀器,GPS衛星,網絡控制器,全球GPS定位系統等領域.工程、銷售、倉儲和物流辦事處設在臺北,香港、曼徹斯特、上海、深圳、中國、韓國、慕尼黑、德國、以及世界各地的支持辦事處.

HX701 XO振蕩器系列是高性能CMOS晶體振蕩器系列，支持高溫且抖動性能極低，HX701系列小體積尺寸7.0x5.0mm、高溫CMOS晶體振蕩器，它支持各種選項，包括更寬的頻率范圍、1.8V/2.5V/3.3V電壓以及在寬溫度范圍內的各種穩定性。它旨在滿足通信系統、工業應用和其他高性能設備的時鐘源規范。

特征：
支持高達125ºC的高溫
低相位抖動 - < 1ps RMS最大值。
寬頻率范圍 - 1.75至161MHz
更厚的晶體以提高可靠性
低電源電流-最大40mA。
無鉛且符合RoHS標準
應用：
網絡系統
工業系統
專業視頻設備
測試和測量

HX701系列晶體振蕩器小體積尺寸7050mm晶振,HX7011C0025.000000,晶體振蕩器,ECERA有源晶振

UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6203Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX31F6201Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±25ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
UX52I0501Z Diodes Incorporated SaRonix-eCera™ UX 180.55MHz ±50ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
NX7021D0644.531250 Diodes Incorporated SaRonix-eCera™ NX 644.53125MHz ±25ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270037 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KX2513G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3211A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
YNETHE125 Diodes Incorporated SaRonix-eCera™ ASSP VCXO 125MHz ±50ppm -40°C ~ 85°C
KX3211D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
FRSTB1027 Diodes Incorporated SaRonix-eCera™ FR 27MHz ±25ppm -20°C ~ 70°C
FRTELE016 Diodes Incorporated SaRonix-eCera™ FR 16.384MHz ±25ppm -20°C ~ 70°C
FRETHE025 Diodes Incorporated SaRonix-eCera™ FR 25MHz ±25ppm -20°C ~ 70°C
KX2013B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2013D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C

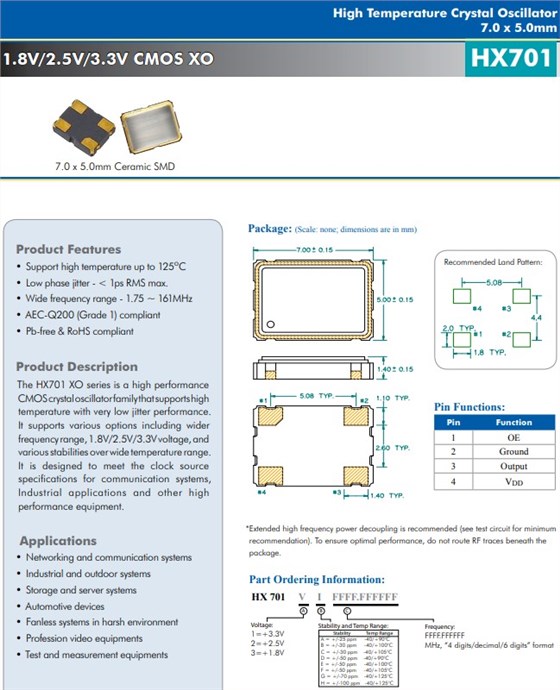

1

Product Parameters

Subfamily High Temp XO
Product Series HX
Compliance(Only Automotive supports PPAP) Standard
Freq Range (MHz) 1 to 135 (1.8V) ; 1 to 162 (2.5/3.3V)
Jitter RMS (ps) <1
Stability (PPM) 25 to 100
Package Size (mm) 7.0 x 5.0 x 1.4
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 3.3, 2.5, 1.8
Pads 4

HX701系列晶體振蕩器小體積尺寸7050mm晶振,HX7011C0025.000000,晶體振蕩器,ECERA有源晶振

產品參數：

類型 高溫XO
產品系列 HX
合規性（僅汽車支持 PPAP）標準
頻率范圍 (MHz) 1至135(1.8V) ; 1至162 (2.5/3.3V)
抖動均方根 (ps) <1
穩定性 (PPM) 25到100
包裝尺寸7.0x5.0x1.4mm貼片晶振

包裝類型 陶瓷縫
輸出邏輯 CMOS
電源電壓 3.3V, 2.5V, 1.8V
墊 4腳

KX2511A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX2513D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270008 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
JX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ JX 59MHz ±50ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270046 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KD3270031 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270045 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270049 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270052 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
JX7011B0044.736000 Diodes Incorporated SaRonix-eCera™ JX 44.736MHz ±25ppm -20°C ~ 70°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
KK3270051 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C

HX701系列晶體振蕩器小體積尺寸7050mm晶振,HX7011C0025.000000,晶體振蕩器,ECERA有源晶振

2

JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
JX5011C0120.000000 Diodes Incorporated SaRonix-eCera™ JX 120MHz ±50ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2132709Z Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7012D0025.001875 Diodes Incorporated SaRonix-eCera™ JX 25.001875MHz ±25ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
JX7011E0091.500000 Diodes Incorporated SaRonix-eCera™ JX 91.5MHz ±50ppm -40°C ~ 85°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
KJ3270004Z Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
LDA000004 Diodes Incorporated SaRonix-eCera™ LD 100MHz ±50ppm -40°C ~ 85°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C

有源晶振需要電源，但不需要附加的電容。它內部含有起振器。通常接到CPU的一根引腳即可，有源晶振不需要DSP的內部振蕩器,信號質量好,比較穩定,而且連接方式相對簡單(主要是做好電源濾波,通常使用一個電容和電感構成的PI型濾波網絡,輸出端用一個小阻值的電阻過濾信號即可),不需要復雜的配置電路.有源晶振通常的用法:一腳懸空,二腳接地,三腳接輸出,四腳接電壓。HX701系列晶體振蕩器小體積尺寸7050mm晶振,HX7011C0025.000000,晶體振蕩器,ECERA有源晶振
