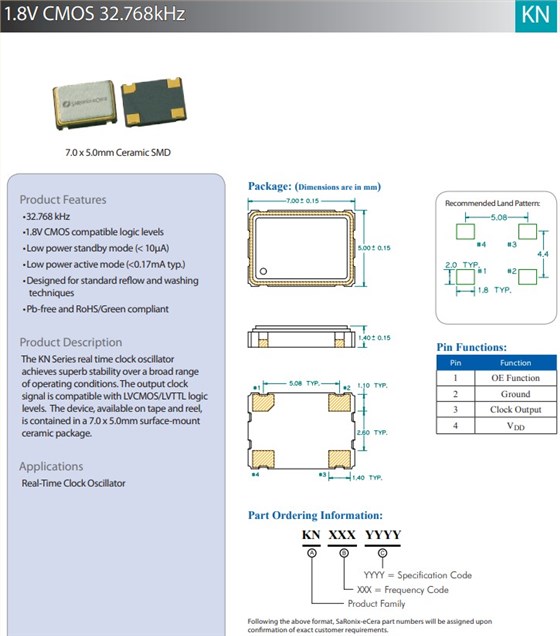

亞陶晶振KN系列實時時鐘振蕩器在廣泛的工作條件下實現了卓越的穩定性。KN系列1.8V、小體積尺寸7.0x5.0mm、32.768k有源晶振，CMOS晶體振蕩器，輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用7.0x5.0mm表面貼裝陶瓷封裝。

特征：
頻率：32.768kHz
1.8V CMOS兼容邏輯電平
低功耗待機模式（< 10μA）
低功耗主動模式（<0.17mA typ.）
專為標準回流和清洗技術而設計
無鉛且符合RoHS/Green標準
應用：實時時鐘晶體振蕩器

KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振

PXA000010	Diodes Incorporated	SaRonix-eCera™ PX	100MHz	±50ppm	-20°C ~ 70°C
NX5031E0125.000000	Diodes Incorporated	SaRonix-eCera™ NX	125MHz	±50ppm	-40°C ~ 85°C
FD0100003	Diodes Incorporated	SaRonix-eCera™ FD	1MHz	±50ppm	-20°C ~ 70°C
FD0180008	Diodes Incorporated	SaRonix-eCera™ FD	1.8432MHz	±50ppm	-20°C ~ 70°C
FD0180009	Diodes Incorporated	SaRonix-eCera™ FD	1.8432MHz	±25ppm	-20°C ~ 70°C
FD0180010	Diodes Incorporated	SaRonix-eCera™ FD	1.8432MHz	±50ppm	-40°C ~ 85°C
FD0200013	Diodes Incorporated	SaRonix-eCera™ FD	2.048MHz	±25ppm	-20°C ~ 70°C
FD0200014	Diodes Incorporated	SaRonix-eCera™ FD	2.048MHz	±50ppm	-40°C ~ 85°C
FD0200015	Diodes Incorporated	SaRonix-eCera™ FD	2.048MHz	±50ppm	-20°C ~ 70°C
FD0350006	Diodes Incorporated	SaRonix-eCera™ FD	3.579545MHz	±50ppm	-20°C ~ 70°C
FD0360017	Diodes Incorporated	SaRonix-eCera™ FD	3.6864MHz	±50ppm	-20°C ~ 70°C
FD0360018	Diodes Incorporated	SaRonix-eCera™ FD	3.6864MHz	±25ppm	-20°C ~ 70°C
FD0360019	Diodes Incorporated	SaRonix-eCera™ FD	3.6864MHz	±50ppm	-40°C ~ 85°C
FD0400021	Diodes Incorporated	SaRonix-eCera™ FD	4MHz	±25ppm	-20°C ~ 70°C
FD0500003	Diodes Incorporated	SaRonix-eCera™ FD	5MHz	±50ppm	-20°C ~ 70°C
FD0600006	Diodes Incorporated	SaRonix-eCera™ FD	6MHz	±25ppm	-20°C ~ 70°C
FD0610002	Diodes Incorporated	SaRonix-eCera™ FD	6.144MHz	±20ppm	-20°C ~ 70°C
FD0730013	Diodes Incorporated	SaRonix-eCera™ FD	7.3728MHz	±50ppm	-20°C ~ 70°C
FD0800013	Diodes Incorporated	SaRonix-eCera™ FD	8MHz	±50ppm	-40°C ~ 85°C
FD0810003	Diodes Incorporated	SaRonix-eCera™ FD	8.192MHz	±50ppm	-20°C ~ 70°C
FD0810004	Diodes Incorporated	SaRonix-eCera™ FD	8.192MHz	±25ppm	-20°C ~ 70°C
FD0810005	Diodes Incorporated	SaRonix-eCera™ FD	8.192MHz	±50ppm	-40°C ~ 85°C
FD0820001	Diodes Incorporated	SaRonix-eCera™ FD	8.25MHz	±50ppm	-20°C ~ 70°C
FD1000015	Diodes Incorporated	SaRonix-eCera™ FD	10MHz	±50ppm	-20°C ~ 70°C
FD1000016	Diodes Incorporated	SaRonix-eCera™ FD	10MHz	±25ppm	-20°C ~ 70°C
FD1000017	Diodes Incorporated	SaRonix-eCera™ FD	10MHz	±50ppm	-40°C ~ 85°C

FD1100008	Diodes Incorporated	SaRonix-eCera™ FD	11.0592MHz	±50ppm	-40°C ~ 85°C
FD1120009	Diodes Incorporated	SaRonix-eCera™ FD	11.2896MHz	±50ppm	-20°C ~ 70°C
FD1200028	Diodes Incorporated	SaRonix-eCera™ FD	12MHz	±50ppm	-20°C ~ 70°C
FD1200029	Diodes Incorporated	SaRonix-eCera™ FD	12MHz	±25ppm	-20°C ~ 70°C
FD1200030	Diodes Incorporated	SaRonix-eCera™ FD	12MHz	±50ppm	-40°C ~ 85°C
FD1220014	Diodes Incorporated	SaRonix-eCera™ FD	12.288MHz	±50ppm	-20°C ~ 70°C
FD1220015	Diodes Incorporated	SaRonix-eCera™ FD	12.288MHz	±50ppm	-40°C ~ 85°C
FD1220016	Diodes Incorporated	SaRonix-eCera™ FD	12.288MHz	±25ppm	-20°C ~ 70°C
FD1350007	Diodes Incorporated	SaRonix-eCera™ FD	13.5MHz	±50ppm	-20°C ~ 70°C
FD1430016	Diodes Incorporated	SaRonix-eCera™ FD	14.3181MHz	±50ppm	-20°C ~ 70°C
FD1430018	Diodes Incorporated	SaRonix-eCera™ FD	14.3181MHz	±50ppm	-40°C ~ 85°C
FD1470015	Diodes Incorporated	SaRonix-eCera™ FD	14.7456MHz	±50ppm	-20°C ~ 70°C
FD1470017	Diodes Incorporated	SaRonix-eCera™ FD	14.7456MHz	±50ppm	-40°C ~ 85°C
FD1600015	Diodes Incorporated	SaRonix-eCera™ FD	16MHz	±50ppm	-20°C ~ 70°C
FD1600016	Diodes Incorporated	SaRonix-eCera™ FD	16MHz	±25ppm	-20°C ~ 70°C
FD1600017	Diodes Incorporated	SaRonix-eCera™ FD	16MHz	±50ppm	-40°C ~ 85°C
FD1630009	Diodes Incorporated	SaRonix-eCera™ FD	16.384MHz	±50ppm	-20°C ~ 70°C
FD1630010	Diodes Incorporated	SaRonix-eCera™ FD	16.384MHz	±25ppm	-20°C ~ 70°C
FD1630011	Diodes Incorporated	SaRonix-eCera™ FD	16.384MHz	±50ppm	-40°C ~ 85°C
FD1630012	Diodes Incorporated	SaRonix-eCera™ FD	16.384MHz	±50ppm	-40°C ~ 85°C
FD1650001	Diodes Incorporated	SaRonix-eCera™ FD	16.5MHz	±50ppm	-20°C ~ 70°C
FD1800003	Diodes Incorporated	SaRonix-eCera™ FD	18MHz	±50ppm	-40°C ~ 85°C
FD1840014	Diodes Incorporated	SaRonix-eCera™ FD	18.432MHz	±50ppm	-20°C ~ 70°C
FD1940001	Diodes Incorporated	SaRonix-eCera™ FD	19.44MHz	±50ppm	-20°C ~ 70°C
FD1940002	Diodes Incorporated	SaRonix-eCera™ FD	19.44MHz	±25ppm	-20°C ~ 70°C

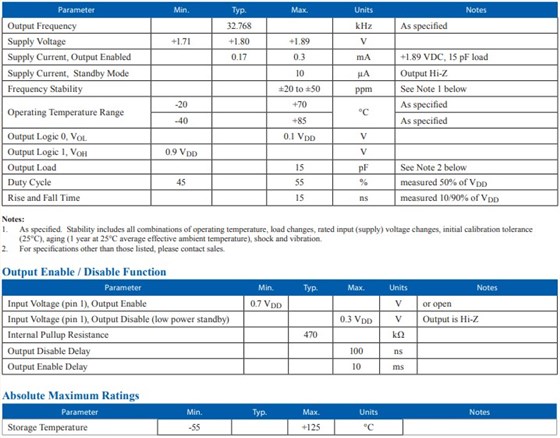

Product Parameters

Output Logic	CMOS
Supply Voltage (V)	1.8
Package Size (mm)	7.0 x 5.0 x 1.4
PkgType	Ceramic Seam
Stability (PPM)	20to50
ProductSeries	KN_1
Freq Range (MHz)	32.768KHZ
Jitter RMS (ps)	<1 PS
Pads	4
Family	kHz XO

KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振

產品參數：

輸出邏輯 CMOS
電源電壓 1.8V
包裝尺寸 7.0x5.0x1.4mm貼片晶振
包裝類型陶瓷縫
穩定性 20PPM到50PPM
產品系列 KN_1
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 PS
墊 4腳
家庭千赫XO

FD1940004	Diodes Incorporated	SaRonix-eCera™ FD	19.44MHz	±50ppm	-40°C ~ 85°C
FD2000046	Diodes Incorporated	SaRonix-eCera™ FD	20MHz	±50ppm	-20°C ~ 70°C
FD2000048	Diodes Incorporated	SaRonix-eCera™ FD	20MHz	±50ppm	-40°C ~ 85°C
FD2000049	Diodes Incorporated	SaRonix-eCera™ FD	20MHz	±25ppm	-20°C ~ 70°C
FD2400022	Diodes Incorporated	SaRonix-eCera™ FD	24MHz	±50ppm	-20°C ~ 70°C
FD2400023	Diodes Incorporated	SaRonix-eCera™ FD	24MHz	±50ppm	-40°C ~ 85°C
FD2400024	Diodes Incorporated	SaRonix-eCera™ FD	24MHz	±25ppm	-20°C ~ 70°C
FD2450018	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-20°C ~ 70°C
FD2450019	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±25ppm	-20°C ~ 70°C
FD2500049	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±25ppm	-20°C ~ 70°C
FD2500052	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-40°C ~ 85°C
FD2500054	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-40°C ~ 85°C
FD2500057	Diodes Incorporated	SaRonix-eCera™ FD	25.0012MHz	±25ppm	-20°C ~ 70°C
FD2500058	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±50ppm	-20°C ~ 70°C
FD2500061	Diodes Incorporated	SaRonix-eCera™ FD	25MHz	±25ppm	-20°C ~ 70°C
FD2600027	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±50ppm	-20°C ~ 70°C
FD2600028	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±25ppm	-20°C ~ 70°C
FD2600030	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±50ppm	-40°C ~ 85°C
FD2600031	Diodes Incorporated	SaRonix-eCera™ FD	26MHz	±25ppm	-20°C ~ 70°C
FD2660003	Diodes Incorporated	SaRonix-eCera™ FD	26.66MHz	±25ppm	-20°C ~ 70°C
FD2700033	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±25ppm	-20°C ~ 70°C
FD2700034	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm	-40°C ~ 85°C
FD2700035	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm	-20°C ~ 70°C
FD2700038	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm	-20°C ~ 70°C
FD2700043	Diodes Incorporated	SaRonix-eCera™ FD	27MHz	±50ppm	-20°C ~ 70°C

KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振

我們的32.768kHz晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器 (XO)，尺寸僅為2.0x1.6mm（KM系列）。KM 系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于10µA）和最嚴格穩定性 (+/- 20 ppm) 的32.768k XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768kHz的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。

FD2860005	Diodes Incorporated	SaRonix-eCera™ FD	28.6363MHz	±50ppm	-20°C ~ 70°C
FD2860006	Diodes Incorporated	SaRonix-eCera™ FD	28.63636MHz	±50ppm	-40°C ~ 85°C
FD3000014	Diodes Incorporated	SaRonix-eCera™ FD	30MHz	±25ppm	-20°C ~ 70°C
FD3000015	Diodes Incorporated	SaRonix-eCera™ FD	30MHz	±50ppm	-40°C ~ 85°C
FD3000016	Diodes Incorporated	SaRonix-eCera™ FD	30MHz	±50ppm	-20°C ~ 70°C
FD3120001	Diodes Incorporated	SaRonix-eCera™ FD	31.25MHz	±25ppm	-20°C ~ 70°C
FD3300021	Diodes Incorporated	SaRonix-eCera™ FD	33MHz	±50ppm	-20°C ~ 70°C
FD3300022	Diodes Incorporated	SaRonix-eCera™ FD	33MHz	±25ppm	-20°C ~ 70°C
FD3300023	Diodes Incorporated	SaRonix-eCera™ FD	33MHz	±50ppm	-40°C ~ 85°C
FD3330016	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±25ppm	-20°C ~ 70°C
FD3330017	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±50ppm	-40°C ~ 85°C
FD3330018	Diodes Incorporated	SaRonix-eCera™ FD	33.3333MHz	±50ppm	-20°C ~ 70°C
FD3330019	Diodes Incorporated	SaRonix-eCera™ FD	33.3333MHz	±25ppm	-20°C ~ 70°C
FD3330020	Diodes Incorporated	SaRonix-eCera™ FD	33.3333MHz	±50ppm	-40°C ~ 85°C
FD3330022	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±50ppm	-20°C ~ 70°C
FD3330024	Diodes Incorporated	SaRonix-eCera™ FD	33.333333MHz	±25ppm	-20°C ~ 70°C
FD3330026	Diodes Incorporated	SaRonix-eCera™ FD	33.333MHz	±50ppm	-40°C ~ 85°C
FD3430001	Diodes Incorporated	SaRonix-eCera™ FD	34.368MHz	±25ppm	-20°C ~ 70°C
FD3530003	Diodes Incorporated	SaRonix-eCera™ FD	35.328MHz	±50ppm	-20°C ~ 70°C
FD3530004	Diodes Incorporated	SaRonix-eCera™ FD	35.328MHz	±25ppm	-20°C ~ 70°C
FD3530005	Diodes Incorporated	SaRonix-eCera™ FD	35.328MHz	±50ppm	-40°C ~ 85°C
FD3600009	Diodes Incorporated	SaRonix-eCera™ FD	36MHz	±25ppm	-20°C ~ 70°C
FD3680001	Diodes Incorporated	SaRonix-eCera™ FD	36.864MHz	±50ppm	-20°C ~ 70°C
FD3680002	Diodes Incorporated	SaRonix-eCera™ FD	36.864MHz	±25ppm	-20°C ~ 70°C
FD3680003	Diodes Incorporated	SaRonix-eCera™ FD	36.864MHz	±50ppm	-40°C ~ 85°C

KN系列1.8V小體積尺寸7050mm有源晶振,KN3270034,KN3270026,時鐘晶體振蕩器,ECERA晶振

KN 1.8V 1.8 7.0x5.0x1.4 陶瓷縫 20~50 KN_1 32.768KHZ <1 4 1.8V、7.0x5.0mm、32.768kHz CMOS晶體振蕩器
KN 2.5V 2.5 7.0x5.0x1.4 陶瓷縫 20~50 KN_2 32.768KHZ <1 4 2.5V、7.0x5.0mm、32.768kHz CMOS晶體振蕩器
KN 3.3V 3.3 7.0x5.0x1.4 陶瓷縫 20~50 KN_3 32.768KHZ <1 4 3.3V、7.0x5.0mm、32.768kHz CMOS晶體振蕩器
KX201 1.82.53.3 2.0x1.6x0.75 陶瓷縫 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS晶體振蕩器
KX251 1.82.53.3 2.5x2.0x0.9 陶瓷縫 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS晶體振蕩器
KX31Q 3.32.51.8 3.2x2.5 陶瓷縫 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器
KX321 1.82.53.3 3.2x2.5x1.0 陶瓷縫 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS晶體振蕩器
KX501 1.82.53.3 5.0x3.2x1.2 陶瓷縫 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS晶體振蕩器
