LR系列3.3V壓控晶體振蕩器具有出色的溫度穩定性,LDGPON155,壓控晶振,ECERA晶振

2022-07-04 11:49:12 壹兆電子

我們的振蕩器是低抖動、高度穩定的振蕩器模塊,將成熟的石英晶體諧振器技術與領先的時鐘IC技術相結合。我們的電壓控制有源晶振提供CMOS/TTL、LVPECL或LVDS輸出邏輯,可為各種應用(包括WiFi、WiMax、PON和SONET/SDH等電信標準)實現非常嚴格的±20ppm整體精度。此外,一些振蕩器產品具有電壓控制功能,可以在線調整輸出頻率,用于數據信號采集、時鐘重定時和抖動衰減或頻率合成。

LR系列3.3V壓控晶體振蕩器具有出色的溫度穩定性,LDGPON155,壓控晶振,ECERA晶振

HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C

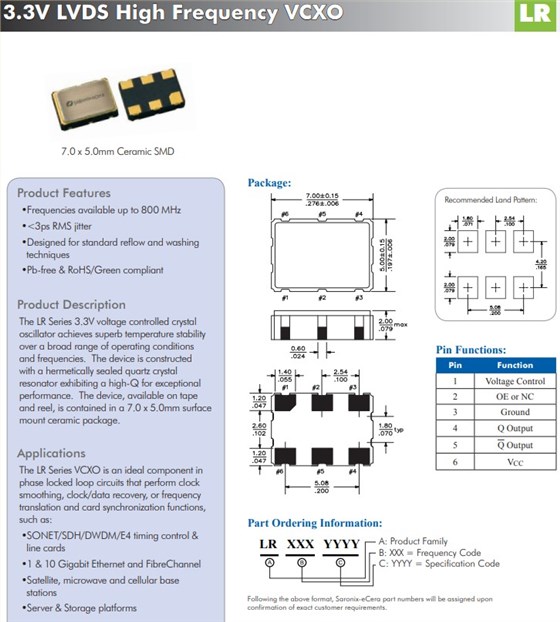

百利通亞陶晶振LR系列3.3V壓控晶體振蕩器可在廣泛的工作條件和頻率范圍內實現出色的溫度穩定性。該器件由一個密封的石英晶體諧振器構成,具有高Q值,具有卓越的性能。該器件采用卷帶包裝,采用7.0x5.0mm表面貼裝陶瓷封裝SMD晶體

特征:
可用頻率高達800MHz
<3ps RMS抖動
專為標準回流和清洗技術而設計
無鉛且符合 RoHS/Green標準
應用:LR系列VCXO是執行時鐘平滑、時鐘/數據恢復或頻率轉換和卡同步功能的鎖相環電路中的理想組件,例如:SONET/SDH/DWDM/E4 時序控制和線卡,1和10Gb以太網和光纖通道,衛星、微波和蜂窩基站,服務器和存儲平臺

LR系列3.3V壓控晶體振蕩器具有出色的溫度穩定性,LDGPON155,壓控晶振,ECERA晶振

NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C

1

Product Parameters

ProductSeries LR_3
Family VCXO
Legacy PN None
Output Logic LVDS
SupplyVoltage 3.3
PullRange 50 to 100 ppm
Freq Range (MHz) 19.44 to 800
Jitter RMS (ps) <3 ps RMS
Package Type Ceramic Seam
Package Size (mm) 7.0 x 5.0 x 2.0
Pads 6
NotRecommended 0

LR系列3.3V壓控晶體振蕩器具有出色的溫度穩定性,LDGPON155,壓控晶振,ECERA晶振

產品參數:

產品系列 LR_3
家庭 VCXO壓控有源晶振
舊版 PN 沒有任何
輸出邏輯 LVDS
電源電壓 3.3V
拉距 50 至 100 ppm
頻率范圍 19.44MHz至800MHz
抖動均方根 (ps) <3 ps RMS
包裝類型 陶瓷縫
包裝尺寸7.0x5.0x2.0mm
墊 6
不建議 0

NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
JX5021E0156.250000 Diodes Incorporated SaRonix-eCera™ JX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX73F62003 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX52F6204Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX72F6214Z Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C

電壓控制晶體振蕩器(VCXO)詳細信息
Diodes Incorporated 與SaRonix-eCera進行了獨特的垂直整合,用于陶瓷封裝振蕩器的專有大容量自動化生產
輸出頻率高達670MHz,總壽命精度為±20ppm
提供5V、3.3V、2.5V和1.8V產品
專利XP技術,用于經濟高效的高頻、低抖動時鐘電路
VCXO控制電壓功能,用于與另一個時鐘或數據信號同步
Diodes Incorporated時鐘和VCXO IC可縮短交貨時間并降低成本
使用ASSP XO晶體振蕩器快速獲得成熟的技術

LR系列3.3V壓控晶體振蕩器具有出色的溫度穩定性,LDGPON155,壓控晶振,ECERA晶振
