7L-38.400MCS-T,2520高精度溫補晶振,臺產晶振

產品簡介

7L-38.400MCS-T,2520高精度溫補晶振,臺產晶振，編碼：7L-38.400MCS-T，型號：7L，工作溫度：-30°C ~ 85°C，尺寸：2.5mm*2.0mm，頻率：38.4 MHz，精度：±2ppm，電壓：2.5V，電流：2mA，臺灣進口晶振，溫度補償晶振，溫補有源晶振，石英晶體振蕩器，有源晶振SPXO，溫補晶振(TCXO)產品本身具有溫度補償作用,高低溫度穩定性:頻率精度高0.5PPM~2.0PPM,常用頻率:26M,33.6M,38.4M,40M.因產品性能穩定,精度高等優勢,被廣泛應用到一些比較高端的數碼通訊產品領域,GPS全球定位系統,智能手機,WiMAX和無線通信等產品,符合RoHS/無鉛.

產品詳情

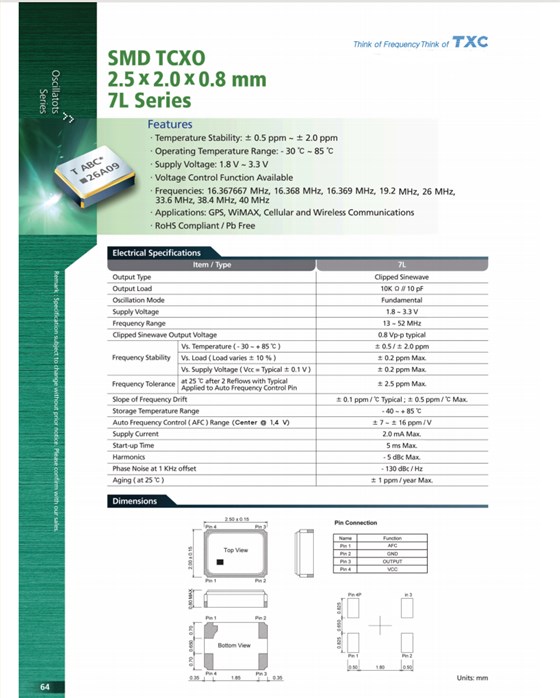

7L-38.400MCS-T,2520高精度溫補晶振,臺產晶振，參數表

編碼	7L-38.400MCS-T
品牌	TXC
型號	7L
頻率	38.4 MHz
精度	±2ppm
電壓	2.5V
電流	2mA
工作溫度	-30°C ~ 85°C
尺寸	2.5mm*2.0mm

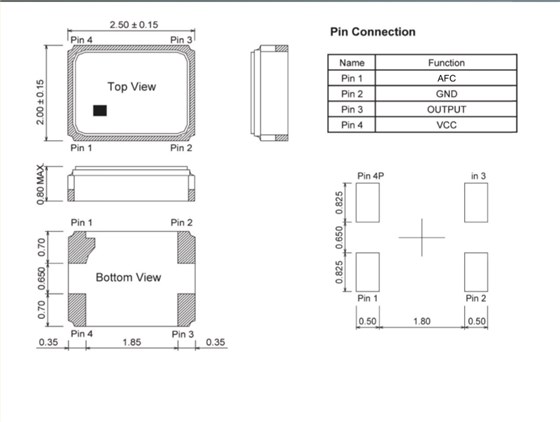

7L-38.400MCS-T,2520高精度溫補晶振,臺產晶振，尺寸圖

Mfr Part #	臺產晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
7L-38.400MCS-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-19.200MCS-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-26.000MCS-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-40.000MCS-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-19.200MBS-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MBS-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-38.400MBS-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-40.000MBS-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MBN-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MCN-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-26.000MDN-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-26.000MDS-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-38.400MBN-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-38.400MCN-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-38.400MDN-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-38.400MDS-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-40.000MBN-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-40.000MCN-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-40.000MDN-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-40.000MDS-T	TXC CORPORATION	7L	TCXO	40 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-19.200MCG-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-38.400MCG-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-16.368MCG-T	TXC CORPORATION	7L	TCXO	16.368 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-16.369MCG-T	TXC CORPORATION	7L	TCXO	16.369 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
7L-16.368MBG-T	TXC CORPORATION	7L	TCXO	16.368 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-16.369MBG-T	TXC CORPORATION	7L	TCXO	16.369 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-19.200MBG-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-26.000MBG-T	TXC CORPORATION	7L	TCXO	26 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-38.400MBG-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-32.000MBH-T	TXC CORPORATION	7L	TCXO	32 MHz	Clipped Sine Wave	3.3V	±1ppm	-30°C ~ 85°C
7L-38.400MDG-T	TXC CORPORATION	7L	TCXO	38.4 MHz	Clipped Sine Wave	1.8V	±2ppm	-30°C ~ 85°C
7L-16.368MDG-T	TXC CORPORATION	7L	TCXO	16.368 MHz	Clipped Sine Wave	1.8V	±2ppm	-40°C ~ 85°C
7L-16.369MDG-T	TXC CORPORATION	7L	TCXO	16.369 MHz	Clipped Sine Wave	1.8V	±2ppm	-40°C ~ 85°C
7L-19.200MBV-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	3.3V	±2ppm	-30°C ~ 85°C
7L-19.200MCV-T	TXC CORPORATION	7L	TCXO	19.2 MHz	Clipped Sine Wave	2.5V	±2ppm	-30°C ~ 85°C
