OAJRGLLTNF-125.000000振蕩器,3225差分有源晶振

產品簡介

OAJRGLLTNF-125.000000振蕩器,3225差分有源晶振，編碼：OAJRGLLTNF-125.000000，型號：OA，工作溫度：-40°C ~ 85°C，尺寸：3.2mm*2.5mm，頻率：125MHz，精度：±50ppm，電壓：2.5V，電流：75mA，,TAITIEN石英晶振，進口石英晶體振蕩器，差分輸出振蕩器，OSC石英晶振，3225進口晶振，行業標準3.2 x 2.5 x 0.9密封陶瓷封裝，極低抖動性能:12 kHz至20 MHz范圍內的典型值為0.1 pS RMS，基頻/第三泛音晶體設計，輸出頻率高達250 MHz，三態使能/禁用，高達125℃的工作溫度范圍。產品廣泛應用于萬兆以太網、光纖通道、存儲區域網絡、SONET，企業服務器、時鐘鐘表等應用。

產品詳情

OAJRGLLTNF-125.000000振蕩器,3225差分有源晶振，參數表

編碼	OAJRGLLTNF-125.000000
品牌	Taitien
型號	OA
頻率	125MHz
精度	±50ppm
電壓	2.5V
電流	75mA
工作溫度	-40°C ~ 85°C
尺寸	3.2mm*2.5mm

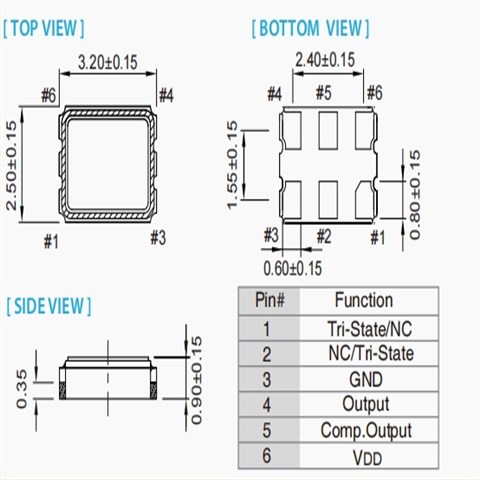

OAJRGLLTNF-125.000000振蕩器,3225差分有源晶振，尺寸圖

Mfr Part #	泰藝晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability
OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm
OAJMGLLANF-125.000000	Taitien	OA-M	XO (Standard)	125 MHz	LVPECL	2.5V	±50ppm
OAJRGLLTNF-156.250000	Taitien	OA	XO (Standard)	156.25 MHz	LVPECL	2.5V	±50ppm
OAJMGLLANF-100.000000	Taitien	OA-M	XO (Standard)	100 MHz	LVPECL	2.5V	±50ppm
OAEMDLLANF-100.000000	Taitien	OA-M	XO (Standard)	100 MHz	LVPECL	3.3V	±25ppm
OAJRGLLTNF-100.000000	Taitien	OA	XO (Standard)	100 MHz	LVPECL	2.5V	±50ppm
OAJMGLLANF-156.250000	Taitien	OA-M	XO (Standard)	156.25 MHz	LVPECL	2.5V	±50ppm
OAEMDLLANF-212.500000	Taitien	OA-M	XO (Standard)	212.5 MHz	LVPECL	3.3V	±25ppm
OAJMGLLANF-212.500000	Taitien	OA-M	XO (Standard)	212.5 MHz	LVPECL	2.5V	±50ppm
OCETGLJTNF-133.000000	Taitien	OC	XO (Standard)	133 MHz	CMOS	3.3V	±50ppm
OAEMDLLANF-125.000000	Taitien	OA-M	XO (Standard)	125 MHz	LVPECL	3.3V	±25ppm
OAERGLLTNF-125.000000	Taitien	OA	XO (Standard)	125 MHz	LVPECL	3.3V	±50ppm
OAJRGLLTNF-125.000000	Taitien	OA	XO (Standard)	125 MHz	LVPECL	2.5V	±50ppm
OAERGLLTNF-156.250000	Taitien	OA	XO (Standard)	156.25 MHz	LVPECL	3.3V	±50ppm
OAERGLLTNF-100.000000	Taitien	OA	XO (Standard)	100 MHz	LVPECL	3.3V	±50ppm
OAEMDLLANF-156.250000	Taitien	OA-M	XO (Standard)	156.25 MHz	LVPECL	3.3V	±25ppm
ODKMDLVTNF-125.000000	Taitien	OD-M	XO (Standard)	125 MHz	LVDS	1.8V	±25ppm
ODEMDLVTNF-200.000000	Taitien	OD-M	XO (Standard)	200 MHz	LVDS	3.3V	±25ppm
OJKMDLVTNF-200.000000	Taitien	OJ-M	XO (Standard)	200 MHz	LVDS	1.8V	±25ppm
OAEWDLLTYF-150.000000	Taitien	OA-U	XO (Standard)	150 MHz	LVPECL	3.3V	±25ppm
OAEWDLVTYF-125.000000	Taitien	OA-U	XO (Standard)	125 MHz	LVDS	3.3V	±25ppm
OAEWDLHTYF-100.000000	Taitien	OA-U	XO (Standard)	100 MHz	HCSL	3.3V	±25ppm
OAEWDLVTYF-156.257812	Taitien	OA-U	XO (Standard)	156.257812 MHz	LVDS	3.3V	±25ppm
OAEWDLVTYF-156.250000	Taitien	OA-U	XO (Standard)	156.25 MHz	LVDS	3.3V	±25ppm
OCETGLJANF-26.000000	Taitien	OC	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.666000	Taitien	OC	XO (Standard)	66.666 MHz	CMOS	3.3V	±50ppm
OCJTGLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
OCETDLJTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO (Standard)	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OCETDCKANF-12.800000	Taitien	OC	XO (Standard)	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO (Standard)	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO (Standard)	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO (Standard)	2.048 MHz	CMOS	3.3V	±25ppm
