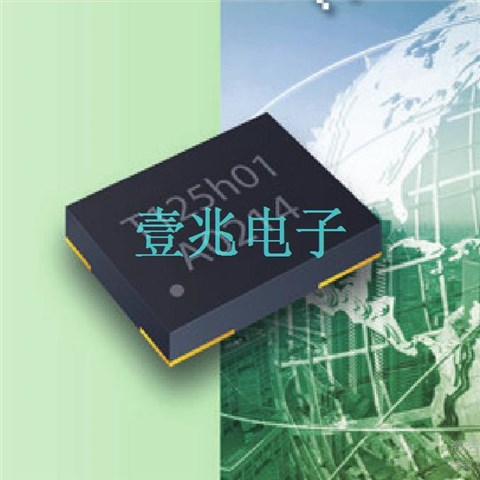

TD-33.33333MBD-T,2520有源貼片晶振,TXC進口晶振,編碼:TD-33.33333MBD-T,型號:TD,工作溫度:-40°C ~ 85°,尺寸:2.5mm*2.0mm,頻率:33.33333 MHz,精度:±25ppm,電壓:3.3V,電流:25mA,石英晶體振蕩器,XO振蕩器,2520小體積晶振,有源晶振,美國進口晶振,具有體積小,重量輕,精度偏差小特點,產品廣泛應用于智能手機,平板電腦,無線電話,網絡設備,工業設備,車載設備等用途。

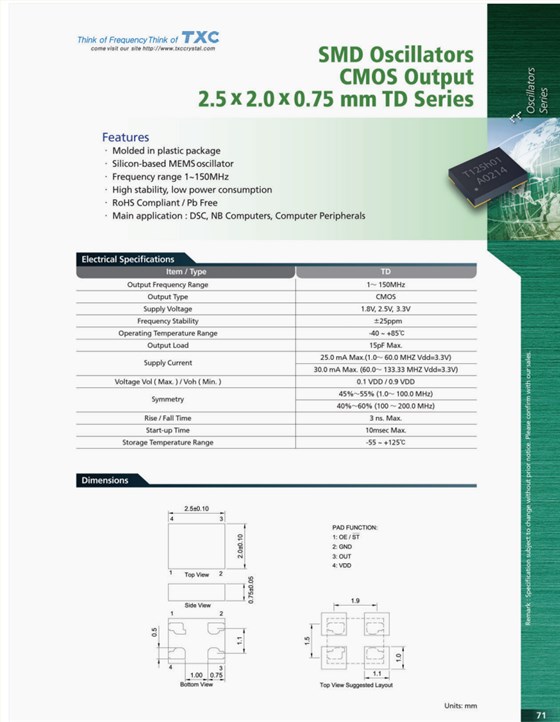

TD-33.33333MBD-T,2520有源貼片晶振,TXC進口晶振,參數表
編碼 |
TD-33.33333MBD-T |
品牌 | TXC |
型號 | TD |
頻率 | 33.33333 MHz |
精度 |
±254ppm |
電壓 |
3.3V |
電流 |
25mA |
工作溫度 |
-40°C ~ 85° |

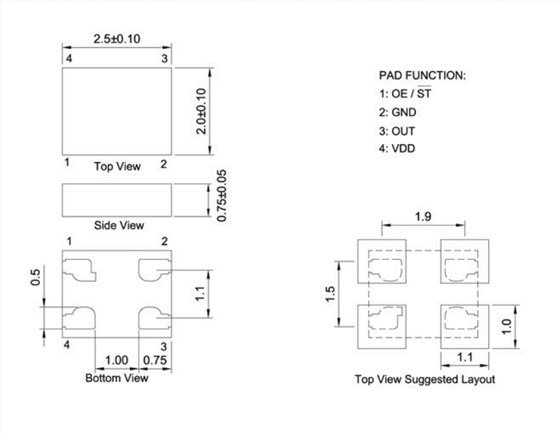

尺寸 | 2.5mm*2.0mm |
Mfr Part # | 有源晶振 | Series | Type | Frequency | Output | Voltage - Supply | Frequency Stability |
TD-7.3728MBD-T | TXC CORPORATION | TD | XO (Standard) | 7.3728 MHz | CMOS | 3.3V | ±25ppm |
TD-40.000MBD-T | TXC CORPORATION | TD | XO (Standard) | 40 MHz | CMOS | 3.3V | ±25ppm |
TD-24.576MBD-T | TXC CORPORATION | TD | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±25ppm |
TD-12.000MBD-T | TXC CORPORATION | TD | XO (Standard) | 12 MHz | CMOS | 3.3V | ±25ppm |
TD-70.000MBD-T | TXC CORPORATION | TD | XO (Standard) | 70 MHz | CMOS | 3.3V | ±25ppm |
TD-32.768MBD-T | TXC CORPORATION | TD | XO (Standard) | 32.768 MHz | CMOS | 3.3V | ±25ppm |
TD-27.000MBD-T | TXC CORPORATION | TD | XO (Standard) | 27 MHz | CMOS | 3.3V | ±25ppm |
TD-33.000MBD-T | TXC CORPORATION | TD | XO (Standard) | 33 MHz | CMOS | 3.3V | ±25ppm |
TD-33.000MBE-T | TXC CORPORATION | TD | XO (Standard) | 33 MHz | CMOS | 3.3V | ±50ppm |
TD-33.000MCD-T | TXC CORPORATION | TD | XO (Standard) | 33 MHz | CMOS | 2.5V | ±25ppm |
TD-33.000MCE-T | TXC CORPORATION | TD | XO (Standard) | 33 MHz | CMOS | 2.5V | ±50ppm |
TD-33.000MDD-T | TXC CORPORATION | TD | XO (Standard) | 33 MHz | CMOS | 1.8V | ±25ppm |
TD-33.000MDE-T | TXC CORPORATION | TD | XO (Standard) | 33 MHz | CMOS | 1.8V | ±50ppm |
TD-33.33333MBD-T | TXC CORPORATION | TD | XO (Standard) | 33.33333 MHz | CMOS | 3.3V | ±25ppm |
TD-33.33333MBE-T | TXC CORPORATION | TD | XO (Standard) | 33.33333 MHz | CMOS | 3.3V | ±50ppm |
TD-33.33333MCD-T | TXC CORPORATION | TD | XO (Standard) | 33.33333 MHz | CMOS | 2.5V | ±25ppm |
TD-33.33333MCE-T | TXC CORPORATION | TD | XO (Standard) | 33.33333 MHz | CMOS | 2.5V | ±50ppm |
TD-33.33333MDD-T | TXC CORPORATION | TD | XO (Standard) | 33.33333 MHz | CMOS | 1.8V | ±25ppm |
TD-33.33333MDE-T | TXC CORPORATION | TD | XO (Standard) | 33.33333 MHz | CMOS | 1.8V | ±50ppm |
TD-35.328MBD-T | TXC CORPORATION | TD | XO (Standard) | 35.328 MHz | CMOS | 3.3V | ±25ppm |
TD-35.328MBE-T | TXC CORPORATION | TD | XO (Standard) | 35.328 MHz | CMOS | 3.3V | ±50ppm |
TD-35.328MCD-T | TXC CORPORATION | TD | XO (Standard) | 35.328 MHz | CMOS | 2.5V | ±25ppm |
TD-35.328MCE-T | TXC CORPORATION | TD | XO (Standard) | 35.328 MHz | CMOS | 2.5V | ±50ppm |
TD-35.328MDD-T | TXC CORPORATION | TD | XO (Standard) | 35.328 MHz | CMOS | 1.8V | ±25ppm |
TD-35.328MDE-T | TXC CORPORATION | TD | XO (Standard) | 35.328 MHz | CMOS | 1.8V | ±50ppm |
TD-36.000MBD-T | TXC CORPORATION | TD | XO (Standard) | 36 MHz | CMOS | 3.3V | ±25ppm |
TD-36.000MBE-T | TXC CORPORATION | TD | XO (Standard) | 36 MHz | CMOS | 3.3V | ±50ppm |
TD-36.000MCD-T | TXC CORPORATION | TD | XO (Standard) | 36 MHz | CMOS | 2.5V | ±25ppm |
TD-36.000MCE-T | TXC CORPORATION | TD | XO (Standard) | 36 MHz | CMOS | 2.5V | ±50ppm |
TD-36.000MDD-T | TXC CORPORATION | TD | XO (Standard) | 36 MHz | CMOS | 1.8V | ±25ppm |
TD-36.000MDE-T | TXC CORPORATION | TD | XO (Standard) | 36 MHz | CMOS | 1.8V | ±50ppm |
TD-37.500MBD-T | TXC CORPORATION | TD | XO (Standard) | 37.5 MHz | CMOS | 3.3V | ±25ppm |
TD-37.500MBE-T | TXC CORPORATION | TD | XO (Standard) | 37.5 MHz | CMOS | 3.3V | ±50ppm |
TD-37.500MCD-T | TXC CORPORATION | TD | XO (Standard) | 37.5 MHz | CMOS | 2.5V | ±25ppm |
TD-37.500MCE-T | TXC CORPORATION | TD | XO (Standard) | 37.5 MHz | CMOS | 2.5V | ±50ppm |
TD-37.500MDD-T | TXC CORPORATION | TD | XO (Standard) | 37.5 MHz | CMOS | 1.8V | ±25ppm |
