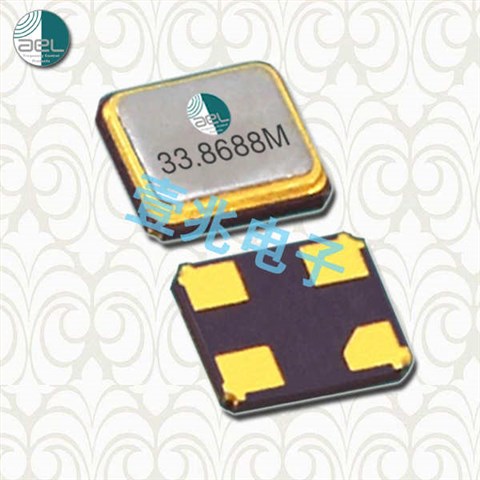

ELM12W-24.000MHz-6-R120-D7X-T晶振,AEL石英晶體諧振器

產品簡介

ELM12W-24.000MHz-6-R120-D7X-T晶振,AEL石英晶體諧振器，編碼：ELM12W-24.000MHz-6-R120-D7X-T，型號：ELM12W，工作溫度：-40°C ~ 85°C，尺寸：1.6mm*1.2mm，頻率：24MHz，精度：±15ppm，負載電容：6pF，無源貼片晶振，進口石英晶振，貼片晶體，石英晶體諧振器，貼片艾爾晶振，美國進口晶振，1612貼片晶振超小型,薄型,質地輕的表面貼片音叉型晶體諧振器,手機晶體,產品體積小,特別適用于各種小巧的便攜式消費電子數碼產品,被廣泛應用到一些比較高端的數碼通訊產品領域,環保性能符合ROHS/無鉛標準,滿足無鉛焊接的回流溫度曲線要求。

產品詳情

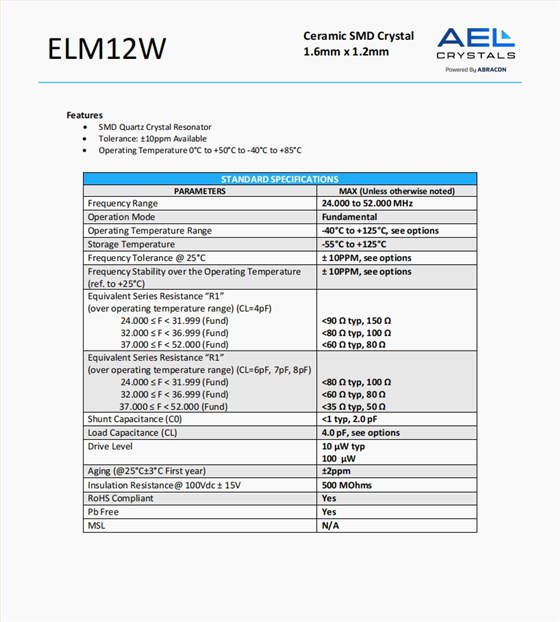

ELM12W-24.000MHz-6-R120-D7X-T晶振,AEL石英晶體諧振器，參數表

編碼	ELM12W-24.000MHz-6-R120-D7X-T
品牌	AEL
型號	ELM12W
頻率	24MHz
精度	±15ppm
負載電容	6pF
工作溫度	-40°C ~ 85°C
尺寸	1.6mm*1.2mm

ELM12W-24.000MHz-6-R120-D7X-T晶振,AEL石英晶體諧振器，尺寸圖

Part	貼片晶體	型號	Length	Width	Height	Operating Temperature
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C
ELLS-12.000MHz-18-R60-A-4-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C
ELLS-30.000MHz-10-R50-B1U-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C
ELLS-4.000MHz-16-R120-A4-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C
ELLS-4.000MHz-16-R120-B1X-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-25°C ~ 75°C
ELLS-4.000MHz-30-R120-D4-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C
ELLS-8.000MHz-16-R45-D4-F-T	AEL Crystals	ELLS	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	ELM10	2.5mm	2mm	0.5mm	-40°C ~ 85°C
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	ELM10	2.5mm	2mm	0.5mm	-30°C ~ 85°C
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	ELM11	2mm	1.6mm	0.5mm	-40°C ~ 85°C
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	ELM12W	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-20°C ~ 70°C
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-10°C ~ 60°C
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-30°C ~ 85°C
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 75°C
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
