表貼式有源晶振,12.94600 KXO-V99晶振,GEYER晶振
頻率:16MHz
尺寸:5.0mmx3.2mm
表貼式有源晶振,12.94600 KXO-V99晶振,GEYER晶振,公差:±50ppm,工作溫度:-20°C~+70°C,儲存溫度范圍:-55°C~+125°C,尺寸:5.0mmx3.2mm,頻率:16MHz,有源晶振,石英晶體振蕩器,SMD晶體,5032有源晶振,具有:低電壓,低損耗,小型,輕薄等特點,應用于:汽車晶振,安防晶振,智能穿戴晶振,
石英晶振,外觀完全使用陶瓷材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的晶體諧振器,焊接方面支持表面貼裝,外觀采用陶瓷封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.具體解決的辦法是使用高速倒邊方式,

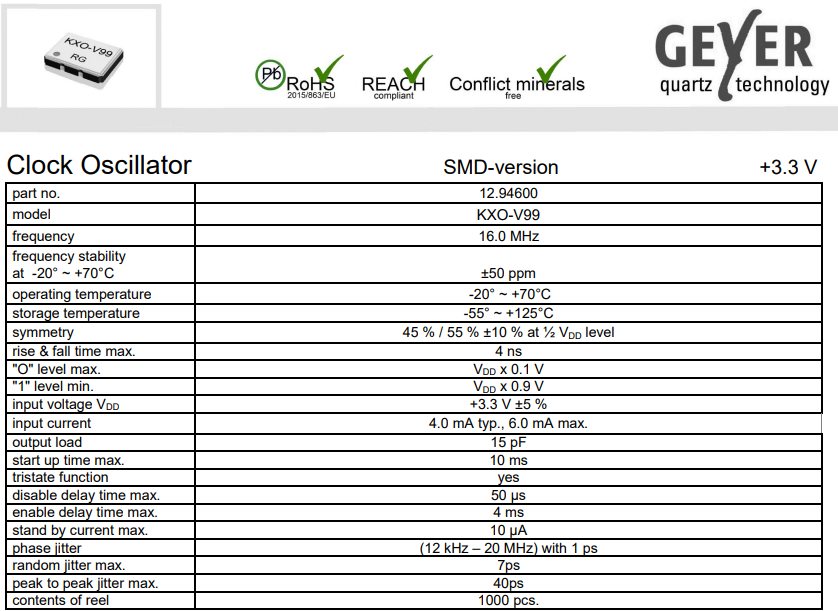

表貼式有源晶振,12.94600 KXO-V99晶振,GEYER晶振,參數表
part no.
12.94600
model表貼式晶振
KXO-V99
frequency
16.0 MHz
±50 ppm
operating temperature
-20° ~ +70°C
storage temperature
-55° ~ +125°C
symmetry
45 % / 55 % ± 10 % at ½ VDD level
rise & fall time max.
4 ns
"O" level max.
VDD x 0. 1 V
"1" level min.
VDD x 0.9 V
input voltage VDD
+3.3 V ±5 %
input current
4.0 mA typ., 6.0 mA max.
output load
15 pF
start up time max.
10 ms
tristate function
yes
disable delay time max.
50 µs
enable delay time max.
4 ms
stand by current max.
10 pA
phase jitter
( 12 kHz – 20 MHz) with 1 ps
random jitter max.
7ps
peak to peak jitter max.
40ps

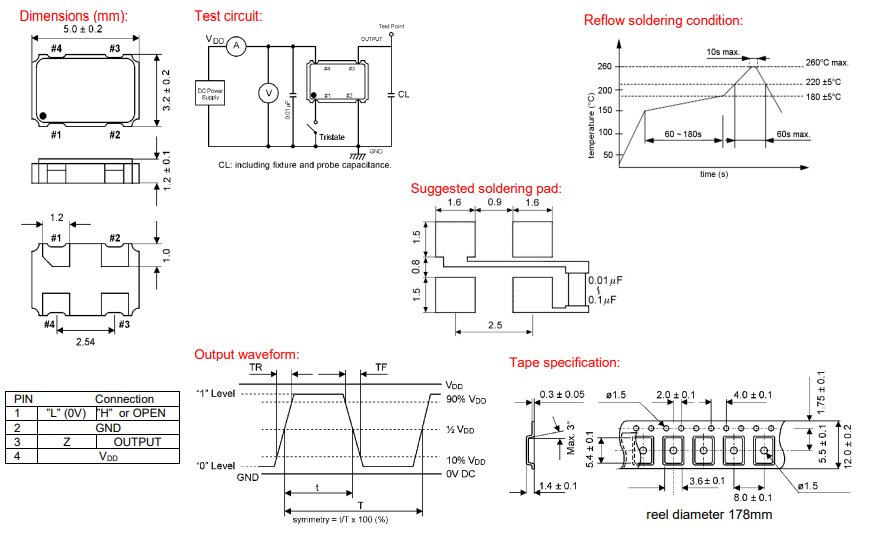

表貼式有源晶振,12.94600 KXO-V99晶振,GEYER晶振,尺寸圖
編碼 | 晶振廠家 | 描述 | 型號 | 標準頻率 | 頻率容差 | 工作溫度 |
12.95582 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ SMD | KXO-V95 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95549 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V95T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.95531 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V95T | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90328 | Geyer 晶振 | XTAL OSC XO 16.0000MHZ CMOS SMD | KXO-V94T | 16 MHz | ±50ppm | -40°C ~ 85°C |
12.90321 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±50ppm | -40°C ~ 85°C |
12.95545 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V95T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95103 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V96T | 32 MHz | ±50ppm | -40°C ~ 85°C |
12.9558 | Geyer 晶振 | XTAL OSC XO 3.579545MHZ SMD | KXO-V95 | 3.579545 MHz | ±50ppm | -20°C ~ 70°C |
12.95094 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V96T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95034 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V96T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95542 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V95T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.94474 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V97T | 27 MHz | ±100ppm | -40°C ~ 85°C |
12.90343 | Geyer 晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V94T | 12 MHz | ±50ppm | -40°C ~ 85°C |
12.90325 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ HCMOS SMD | KXO-V94 | 3.6864 MHz | ±50ppm | -40°C ~ 85°C |
12.90311 | Geyer 晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz | ±100ppm | -40°C ~ 85°C |
12.95128 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V96E | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.95102 | Geyer 晶振 | XTAL OSC XO 80.0000MHZ SMD | KXO-V96T | 80 MHz | ±50ppm | -40°C ~ 85°C |
12.90333 | Geyer 晶振 | XTAL OSC XO 40.0000MHZ SMD | KXO-V94T | 40 MHz | ±50ppm | -40°C ~ 85°C |
12.90337 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V94T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.94273 | Geyer 晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V97T | 32 MHz | ±100ppm | -40°C ~ 85°C |
12.94365 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V97T | 14.31818 MHz | ±100ppm | -40°C ~ 85°C |
12.95546 | Geyer 晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V95T | 26 MHz | ±50ppm | -40°C ~ 85°C |
12.92106 | Geyer 晶振 | XTAL OSC XO 65.0000MHZ SMD | KXO-V97T | 65 MHz | ±100ppm | -40°C ~ 85°C |
12.95571 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V95T | 32.768 kHz | ±30ppm | -40°C ~ 85°C |
12.90344 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V94T | 4 MHz | ±50ppm | -40°C ~ 85°C |
12.95538 | Geyer 晶振 | XTAL OSC XO 27.1200MHZ SMD | KXO-V95 | 27.12 MHz | ±50ppm | -20°C ~ 70°C |
12.94364 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V97T | 48 MHz | ±100ppm | -40°C ~ 85°C |
12.95568 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95F | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90324 | Geyer 晶振 | XTAL OSC XO 27.0000MHZ HCMOS SMD | KXO-V94 | 27 MHz | ±50ppm | -40°C ~ 85°C |
12.94609 | Geyer 晶振 | XTAL OSC XO 1.0000MHZ SMD | KXO-V99 | 1 MHz | ±50ppm | -40°C ~ 85°C |
12.95101 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V96T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.92146 | Geyer 晶振 | XTAL OSC XO 22.1184MHZ SMD | KXO-V97T | 22.1184 MHz | ±100ppm | -40°C ~ 85°C |
12.90327 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ HCMOS SMD | KXO-V94T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.95091 | Geyer 晶振 | XTAL OSC XO 10.0000MHZ SMD | KXO-V96T | 10 MHz | ±50ppm | -40°C ~ 85°C |
12.94449 | Geyer 晶振 | XTAL OSC XO 18.4320MHZ SMD | KXO-V97T | 18.432 MHz | ±100ppm | -40°C ~ 85°C |
12.94456 | Geyer 晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V97T | 3.6864 MHz | ±100ppm | -40°C ~ 85°C |
12.95551 | Geyer 晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95T | 48 MHz | ±50ppm | -40°C ~ 85°C |
12.90322 | Geyer 晶振 | XTAL OSC XO 20.0000MHZ CMOS SMD | KXO-V94T | 20 MHz | ±50ppm | -40°C ~ 85°C |
12.95524 | Geyer 晶振 | XTAL OSC XO 25.0000MHZ SMD | KXO-V95E | 25 MHz | ±100ppm | -40°C ~ 85°C |
12.9034 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V94T | 32.768 kHz | ±20ppm | -40°C ~ 85°C |
12.95543 | Geyer 晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V95T | 14.31818 MHz | ±50ppm | -40°C ~ 85°C |
12.95104 | Geyer 晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V96-18 | 32.768 kHz | ±50ppm | -20°C ~ 70°C |
12.94422 | Geyer 晶振 | XTAL OSC XO 11.0592MHZ SMD | KXO-V97T | 11.0592 MHz | ±100ppm | -40°C ~ 85°C |
12.95548 | Geyer 晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V95T | 4 MHz | ±50ppm | -40°C ~ 85°C |
