402F2401XIAR,美國CTS晶振,2016貼片晶振
頻率:24MHz
尺寸:2.0mm x 1.6mm

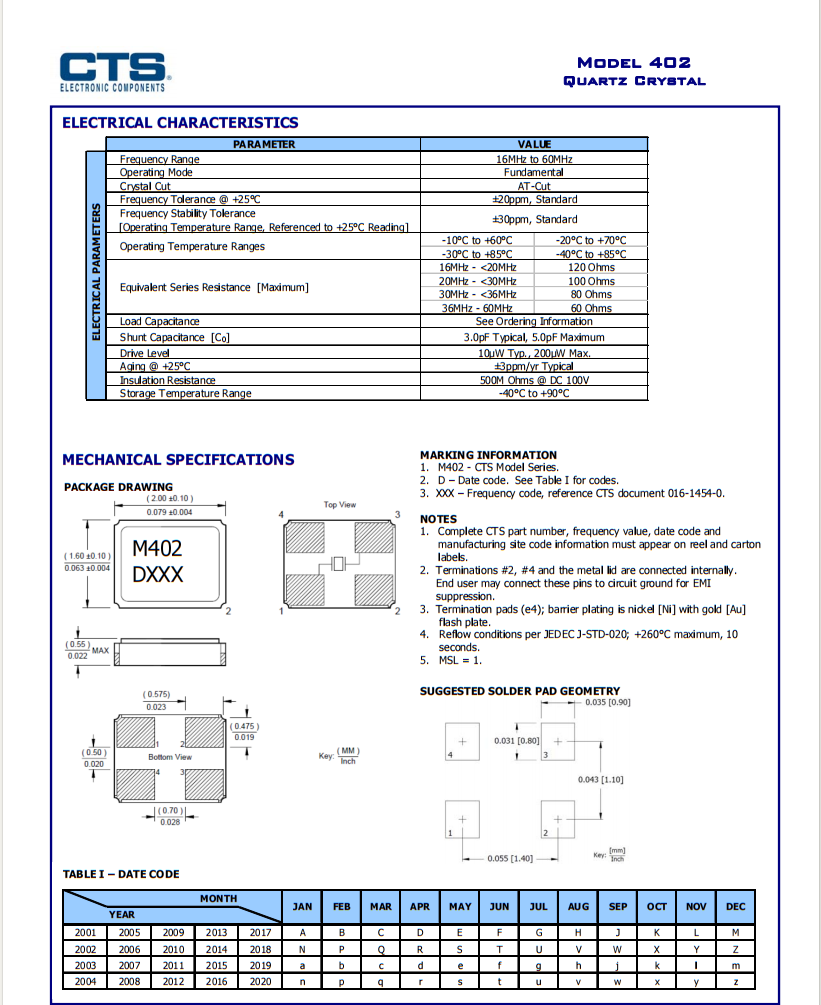

402F2401XIAR,美國CTS晶振,2016貼片晶振,參數表
PARAMETER
VALUE
Frequency Range
16MHz to 60MHz
Operating Mode
Fundamental
Crystal Cut
AT-Cut
Frequency Tolerance @ +25°C
±20ppm, Standard
Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]
±30ppm, Standard
Operating Temperature Ranges
-10°C to +60°C
-20°C to +70°C
-30°C to +85°C
-40°C to +85°C
Equivalent Series Resistance [Maximum]
16MHz - <20MHz
120 Ohms
20MHz - <30MHz
100 Ohms
30MHz - <36MHz
80 Ohms
36MHz - 60MHz
60 Ohms
Load Capacitance
See Ordering Information
Shunt Capacitance [C0]
3.0pF Typical, 5.0pF Maximum
Drive Level
10µW Typ., 200µW Max.
Aging @ +25°C
±3ppm/yr Typical
Insulation Resistance
500M Ohms @ DC 100V
Storage Temperature Range
-40°C to +90°C

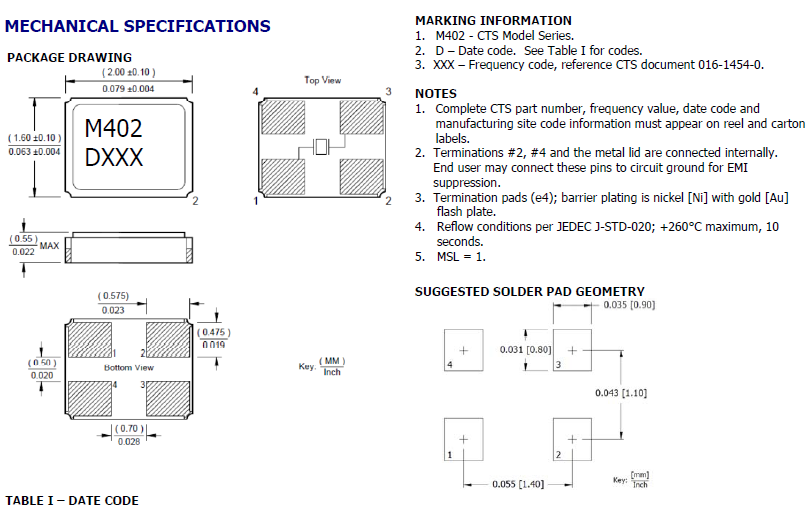

402F2401XIAR,美國CTS晶振,2016貼片晶振,尺寸圖
Manufacturer Part Number原廠編碼 | 壹兆晶振廠家 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Frequency Tolerance頻率偏差 | Load Capacitance負載電容 | ESR (Equivalent Series Resistance)電阻 | Operating Temperature 工作溫度 |
402F2401XIAR | CTS-Frequency Controls | 402 | 24MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2401XIAR | CTS-Frequency Controls | 402 | 24MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2401XIAR | CTS-Frequency Controls | 402 | 24MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2501XIAR | CTS-Frequency Controls | 402 | 25MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2501XIAR | CTS-Frequency Controls | 402 | 25MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2501XIAR | CTS-Frequency Controls | 402 | 25MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F27011CAR | CTS-Frequency Controls | 402 | 27MHz | ±10ppm | ±10ppm | 10pF | 100 Ohm | -20°C ~ 70°C |
402F27011CAR | CTS-Frequency Controls | 402 | 27MHz | ±10ppm | ±10ppm | 10pF | 100 Ohm | -20°C ~ 70°C |
402F27011CAR | CTS-Frequency Controls | 402 | 27MHz | ±10ppm | ±10ppm | 10pF | 100 Ohm | -20°C ~ 70°C |
402F30011CAR | CTS-Frequency Controls | 402 | 30MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
402F30011CAR | CTS-Frequency Controls | 402 | 30MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
402F30011CAR | CTS-Frequency Controls | 402 | 30MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
402F38411CAR | CTS-Frequency Controls | 402 | 38.4MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
402F38411CAR | CTS-Frequency Controls | 402 | 38.4MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
402F38411CAR | CTS-Frequency Controls | 402 | 38.4MHz | ±10ppm | ±10ppm | 10pF | 60 Ohm | -20°C ~ 70°C |
402F2001XIAR | CTS-Frequency Controls | 402 | 20MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2001XIAR | CTS-Frequency Controls | 402 | 20MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F2001XIAR | CTS-Frequency Controls | 402 | 20MHz | ±15ppm | ±10ppm | 10pF | 100 Ohm | -40°C ~ 85°C |
402F4001XIAR | CTS-Frequency Controls | 402 | 40MHz | ±15ppm | ±10ppm | 10pF | 60 Ohm | -40°C ~ 85°C |
402F4001XIAR | CTS-Frequency Controls | 402 | 40MHz | ±15ppm | ±10ppm | 10pF | 60 Ohm | -40°C ~ 85°C |
402F4001XIAR | CTS-Frequency Controls | 402 | 40MHz | ±15ppm | ±10ppm | 10pF | 60 Ohm | -40°C ~ 85°C |
402F24011CAR | CTS-Frequency Controls | 402 | 24MHz | ±10ppm | ±10ppm | 10pF | 100 Ohm | -20°C ~ 70°C |
402F24011CAR | CTS-Frequency Controls | 402 | 24MHz | ±10ppm | ±10ppm | 10pF | 100 Ohm | -20°C ~ 70°C |
402F24011CAR | CTS-Frequency Controls | 402 | 24MHz | ±10ppm | ±10ppm | 10pF | 100 Ohm | -20°C ~ 70°C |
402F3201XIAR | CTS-Frequency Controls | 402 | 32MHz | ±15ppm | ±10ppm | 10pF | 80 Ohm | -40°C ~ 85°C |
402F3201XIAR | CTS-Frequency Controls | 402 | 32MHz | ±15ppm | ±10ppm | 10pF | 80 Ohm | -40°C ~ 85°C |
402F3201XIAR | CTS-Frequency Controls | 402 | 32MHz | ±15ppm | ±10ppm | 10pF | 80 Ohm | -40°C ~ 85°C |
402F32011CAR | CTS-Frequency Controls | 402 | 32MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
402F32011CAR | CTS-Frequency Controls | 402 | 32MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
402F32011CAR | CTS-Frequency Controls | 402 | 32MHz | ±10ppm | ±10ppm | 10pF | 80 Ohm | -20°C ~ 70°C |
402F160XXCKR | CTS-Frequency Controls | 402 | 16MHz | ±15ppm | ±15ppm | 8pF | 120 Ohm | -20°C ~ 70°C |
