402F271XXCJR,2016貼片晶體,美國CTS晶振
頻率:27.12MHz
尺寸:2.0mm x 1.6mm

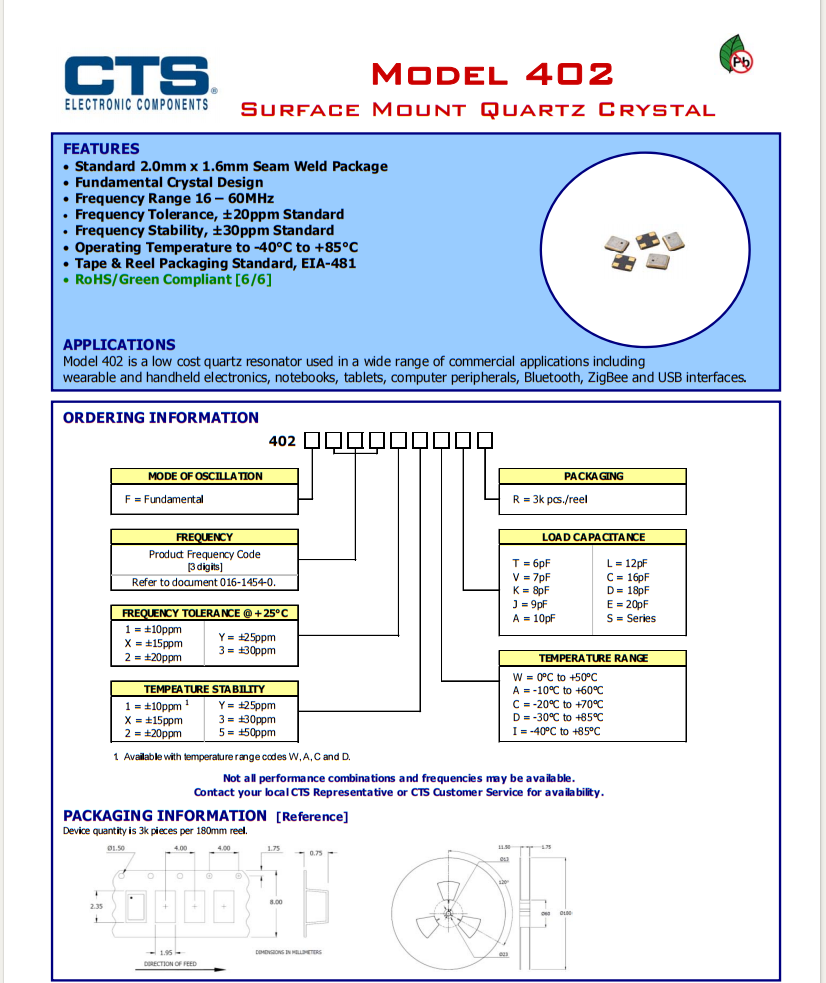

402F271XXCJR,2016貼片晶體,美國CTS晶振,參數表
PARAMETER
VALUE
Frequency Range
16MHz to 60MHz
Operating Mode
Fundamental
Crystal Cut
AT-Cut
Frequency Tolerance @ +25°C
±20ppm, Standard
Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]
±30ppm, Standard
Operating Temperature Ranges
-10°C to +60°C
-20°C to +70°C
-30°C to +85°C
-40°C to +85°C
Equivalent Series Resistance [Maximum]
16MHz - <20MHz
120 Ohms
20MHz - <30MHz
100 Ohms
30MHz - <36MHz
80 Ohms
36MHz - 60MHz
60 Ohms
Load Capacitance
See Ordering Information
Shunt Capacitance [C0]
3.0pF Typical, 5.0pF Maximum
Drive Level
10µW Typ., 200µW Max.
Aging @ +25°C
±3ppm/yr Typical
Insulation Resistance
500M Ohms @ DC 100V
Storage Temperature Range
-40°C to +90°C
Manufacturer Part Number原廠編碼 |
西迪斯美國進口晶振 |
Series型號 | Type 系列 | Frequency | Frequency Tolerance頻率偏差 | Load Capacitance負載電容 | Operating Temperature 工作溫度 |
402F271XXCKR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±15ppm | 8pF | -20°C ~ 70°C |
402F271XXCJR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±15ppm | 9pF | -20°C ~ 70°C |
402F271XXCAR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±15ppm | 10pF | -20°C ~ 70°C |
402F271XXCLR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±15ppm | 12pF | -20°C ~ 70°C |
402F271XXCDR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±15ppm | 18pF | -20°C ~ 70°C |
402F27133CKR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±30ppm | 8pF | -20°C ~ 70°C |
402F27133CJR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±30ppm | 9pF | -20°C ~ 70°C |
402F27133CAR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
402F27133CLR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±30ppm | 12pF | -20°C ~ 70°C |
402F27133CDR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±30ppm | 18pF | -20°C ~ 70°C |
402F2711XIKR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 8pF | -40°C ~ 85°C |
402F2711XIJR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 9pF | -40°C ~ 85°C |
402F2711XIAR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 10pF | -40°C ~ 85°C |
402F2711XILR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 12pF | -40°C ~ 85°C |
402F2711XIDR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 18pF | -40°C ~ 85°C |
402F27112IKR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 8pF | -40°C ~ 85°C |
402F27112IJR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 9pF | -40°C ~ 85°C |
402F27112IAR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 10pF | -40°C ~ 85°C |
402F27112ILR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 12pF | -40°C ~ 85°C |
402F27112IDR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 18pF | -40°C ~ 85°C |
402F27122IKR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±20ppm | 8pF | -40°C ~ 85°C |
402F27122IJR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±20ppm | 9pF | -40°C ~ 85°C |
402F27122IAR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±20ppm | 10pF | -40°C ~ 85°C |
402F27122ILR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±20ppm | 12pF | -40°C ~ 85°C |
402F27122IDR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±20ppm | 18pF | -40°C ~ 85°C |
402F27111CKR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 8pF | -20°C ~ 70°C |
402F27111CJR | CTS-Frequency Controls | 402 | MHz Crystal | 27.12MHz | ±10ppm | 9pF | -20°C ~ 70°C |
