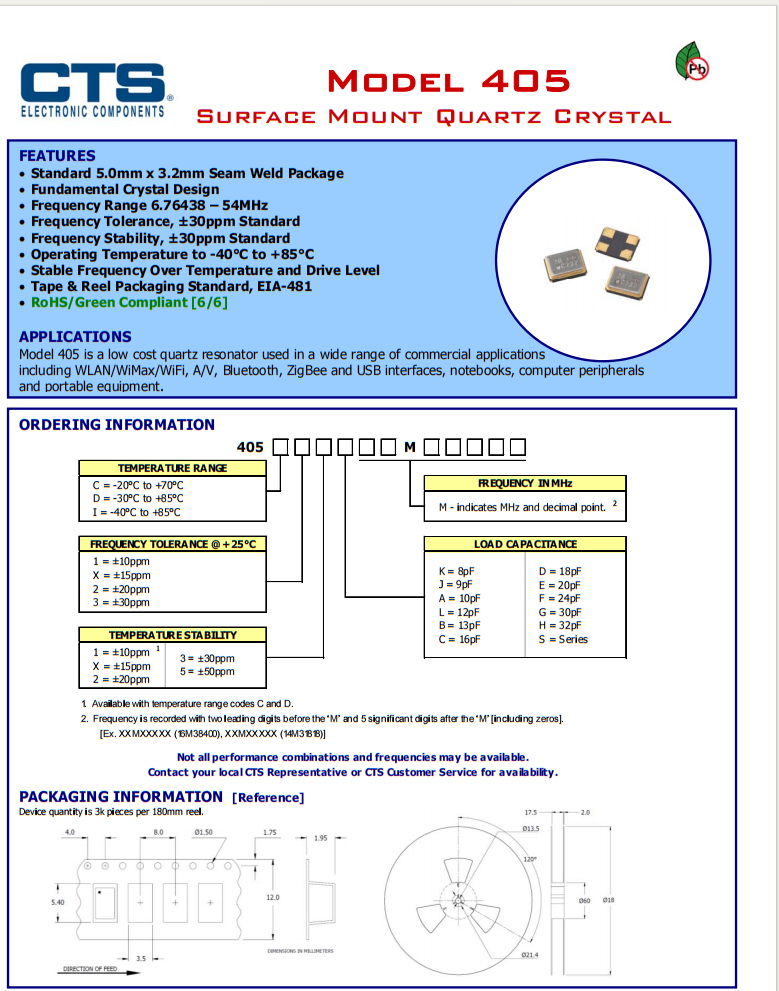

405C35B16M00000,CTS晶振,5032貼片晶振
頻率:16MHz

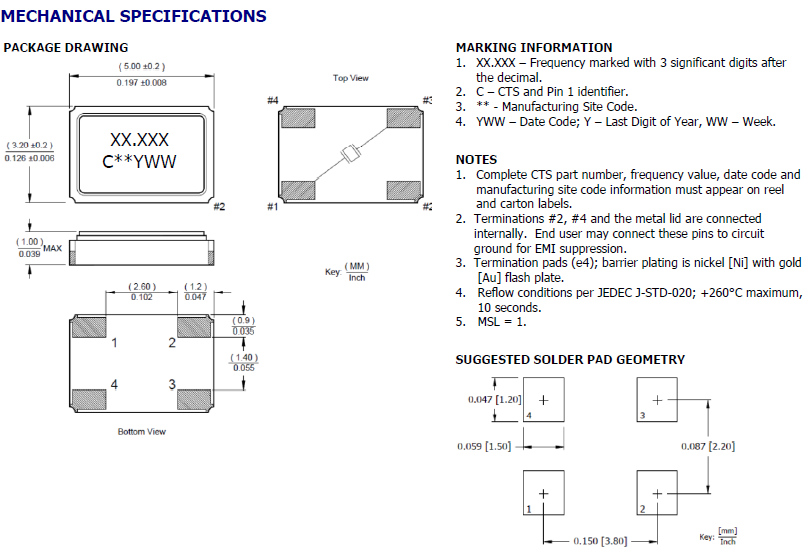

尺寸:5.0mm x 3.2mm
405C35B16M00000,CTS晶振,5032貼片晶振,參數表
PARAMETER
VALUE
Frequency Range
6.76438MHz to 54MHz
Operating Mode
Fundamental
Crystal Cut
AT-Cut
Frequency Tolerance @ +25°C
±30ppm, Standard
Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]
±30ppm, Standard
Operating Temperature Ranges
-20°C to +70°C
-30°C to +85°C
-40°C to +85°C
Equivalent Series Resistance [Maximum]
6.76438MHz - <11MHz
80 Ohms
11MHz - <15MHz
60 Ohms
15MHz - <35MHz
50 Ohms
35MHz - 54MHz
40 Ohms
Load Capacitance
See Ordering Information
Shunt Capacitance [C0]
5.0pF Typical, 7.0pF Maximum
Drive Level
10µW Typ., 200µW Max.
Aging @ +25°C
±3ppm/yr Typical
Insulation Resistance
500M Ohms @ DC 100V
Storage Temperature Range
-40°C to +100°C
Manufacturer Part Number原廠編碼 | 晶振廠家 | Series型號 | Frequency | Frequency Stability頻率穩定度 | Frequency Tolerance頻率偏差 | Load Capacitance負載電容 | ESR (Equivalent Series Resistance)電阻 | Operating Temperature 工作溫度 |
405C35B16M00000 | CTS-Frequency Controls | 405 | 16MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
405C35B16M00000 | CTS-Frequency Controls | 405 | 16MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
405C35B16M00000 | CTS-Frequency Controls | 405 | 16MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
405I35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
405I35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
405I35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
405C35B25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±50ppm | ±30ppm | 13pF | 50 Ohm | -20°C ~ 70°C |
405C35B25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±50ppm | ±30ppm | 13pF | 50 Ohm | -20°C ~ 70°C |
405C35B25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±50ppm | ±30ppm | 13pF | 50 Ohm | -20°C ~ 70°C |
405I35D25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±50ppm | ±30ppm | 18pF | 50 Ohm | -40°C ~ 85°C |
405I35D25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±50ppm | ±30ppm | 18pF | 50 Ohm | -40°C ~ 85°C |
405I35D25M00000 | CTS-Frequency Controls | 405 | 25MHz | ±50ppm | ±30ppm | 18pF | 50 Ohm | -40°C ~ 85°C |
405C35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
405C35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
405C35D12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
405C35B12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
405C35B12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
405C35B12M00000 | CTS-Frequency Controls | 405 | 12MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
405C35B24M00000 | CTS-Frequency Controls | 405 | 24MHz | ±50ppm | ±30ppm | 13pF | 50 Ohm | -20°C ~ 70°C |
405C35B24M00000 | CTS-Frequency Controls | 405 | 24MHz | ±50ppm | ±30ppm | 13pF | 50 Ohm | -20°C ~ 70°C |
405C35B24M00000 | CTS-Frequency Controls | 405 | 24MHz | ±50ppm | ±30ppm | 13pF | 50 Ohm | -20°C ~ 70°C |
405C35D27M00000 | CTS-Frequency Controls | 405 | 27MHz | ±50ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
405C35D27M00000 | CTS-Frequency Controls | 405 | 27MHz | ±50ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
405C35D27M00000 | CTS-Frequency Controls | 405 | 27MHz | ±50ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
405C35B16M36800 | CTS-Frequency Controls | 405 | 16.368MHz | ±50ppm | ±30ppm | 13pF | 60 Ohm | -20°C ~ 70°C |
