445C35A12M00000,CTS貼片晶體,5032晶振
頻率:12MHz
尺寸:5.0mm x 3.2mm

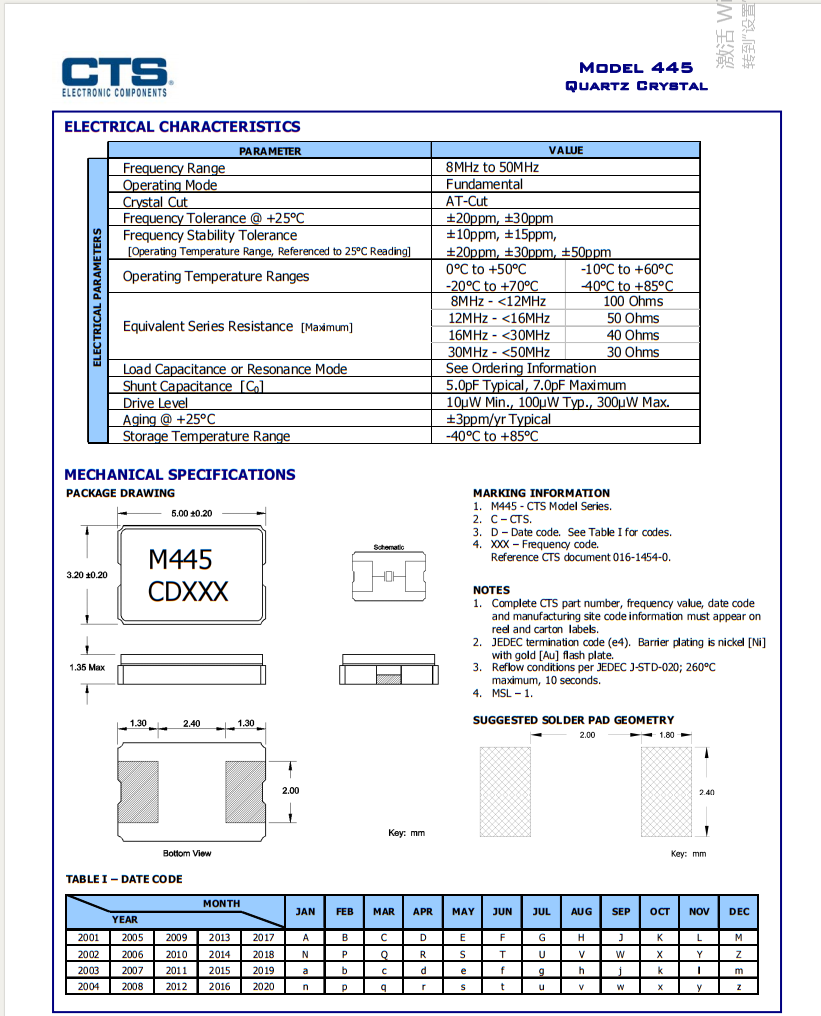

445C35A12M00000,CTS貼片晶體,5032晶振,參數表

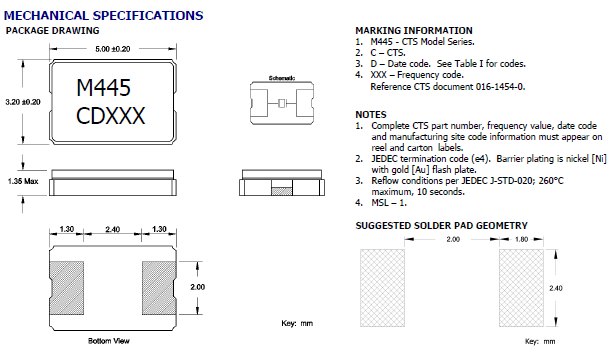

445C35A12M00000,CTS貼片晶體,5032晶振,尺寸圖
PARAMETER
VALUE
Frequency Range
8MHz to 50MHz
Operating Mode
Fundamental
Crystal Cut
AT-Cut
Frequency Tolerance @ +25°C
±20ppm, ±30ppm
Frequency Stability Tolerance
[Operating Temperature Range, Referenced to 25°C Reading]
±10ppm, ±15ppm,
±20ppm, ±30ppm, ±50ppm
Operating Temperature Ranges
0°C to +50°C
-20°C to +70°C
-10°C to +60°C
-40°C to +85°C
Equivalent Series Resistance [Maximum]
8MHz - <12MHz
100 Ohms
12MHz - <16MHz
50 Ohms
16MHz - <30MHz
40 Ohms
30MHz - <50MHz
30 Ohms
Load Capacitance or Resonance Mode
See Ordering Information
Shunt Capacitance [C0]
5.0pF Typical, 7.0pF Maximum
Drive Level
10µW Min., 100µW Typ., 300µW Max.
Aging @ +25°C
±3ppm/yr Typical
Storage Temperature Range
-40°C to +85°C
Manufacturer Part Number原廠編碼 |
西迪斯Oscillator |
Series型號 | Frequency | Frequency Tolerance頻率偏差 | Load Capacitance負載電容 | Operating Temperature 工作溫度 |
445C35A12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
445C35A12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
445C35A12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±30ppm | 10pF | -20°C ~ 70°C |
445C25D25M00000 | CTS-Frequency Controls | 445 | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D25M00000 | CTS-Frequency Controls | 445 | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D25M00000 | CTS-Frequency Controls | 445 | 25MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D24M00000 | CTS-Frequency Controls | 445 | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D24M00000 | CTS-Frequency Controls | 445 | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D24M00000 | CTS-Frequency Controls | 445 | 24MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D20M00000 | CTS-Frequency Controls | 445 | 20MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D20M00000 | CTS-Frequency Controls | 445 | 20MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D20M00000 | CTS-Frequency Controls | 445 | 20MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D27M00000 | CTS-Frequency Controls | 445 | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D27M00000 | CTS-Frequency Controls | 445 | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445C25D27M00000 | CTS-Frequency Controls | 445 | 27MHz | ±20ppm | 18pF | -20°C ~ 70°C |
445I23D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -40°C ~ 85°C |
445I23D12M00000 | CTS-Frequency Controls | 445 | 12MHz | ±20ppm | 18pF | -40°C ~ 85°C |
