CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC小型便捷式專用晶振

2023-04-26 17:04:15

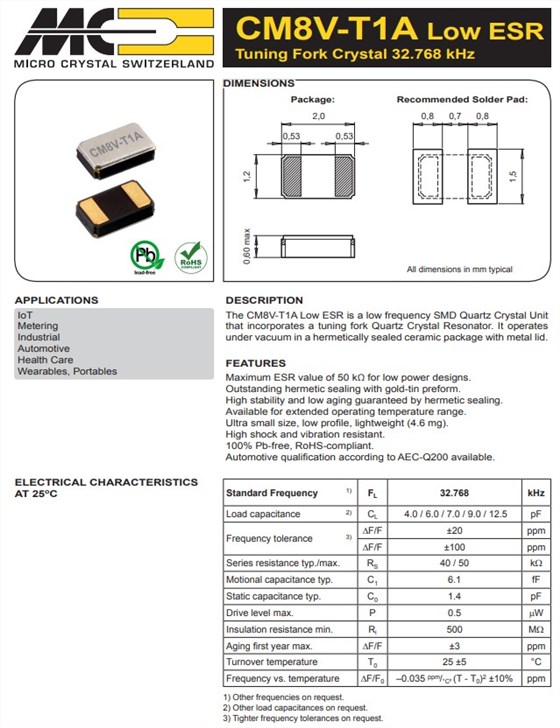

Microcrystal微晶CM8V-T1A低ESR是一款低頻SMD石英晶體器件，小體積晶振尺寸2.0x1.2mm晶振，兩腳貼片晶振，32.768K晶振，無源晶振，石英晶體諧振器，內置音叉石英晶體諧振器，最大ESR值為50kω，適合低功耗設計。它在帶金屬蓋的密封陶瓷封裝中的真空下工作。具有超小型，輕薄型，耐熱及耐環境特點，適用于通訊設備，無線藍牙，可穿戴設備，小型便捷式設備，智能手機，平板電腦，物聯網，衛生保健，測量，產業的，汽車的，超小型設備應用等。

CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC小型便捷式專用晶振

特征：
超小尺寸:2.0x1.2x0.60毫米貼片晶振
超小型、薄型、重量輕(4.6毫克)
金錫預制件的出色密封
密封保證了高穩定性和低老化
適用于擴展的工作溫度范圍
高抗沖擊和振動
100%無鉛，符合RoHS標準
提供符合AEC-Q200的汽車認證

品牌	美國進口晶振	描述	頻率
Micro Crystal	CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz
Micro Crystal	CM8V-T1A-32.768k-9pF-20PPM-TB-QA	32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	32.768 kHz 9.0 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	32.768 kHz 12.5 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	32.768 kHz 7.0 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	32.768 kHz 9.0 pF +/-20 PPM -55/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	32.768 kHz 6.0 pF +/-20 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	32.768 kHz 6.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	32.768 kHz 6.0 pF +/-10 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	32.768 kHz 6.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	32.768 kHz 12.5 pF +/-20 PPM 0.3mm	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	32.768 kHz 9.0 pF +/-10 PPM -40/+85C	32.768k
Micro Crystal	CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	32.768 kHz 12.5 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC	32.768 kHz 7.0 pF +/-10 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	32.768 kHz 12.5 pF +/-20 PPM -55/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC	32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC	32.768 kHz 9.0 pF +/-10 PPM -40/+125C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	32.768 kHz 12.5 pF +/-20 PPM -55/+125C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA	32.768 kHz 7.0 pF +/-10 PPM LOW ESR	32.768 kHz
Micro Crystal	CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC	32.768 kHz 9.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA	32.768 kHz 9.0 pF +/-20 PPM LOW ESR	32.768 kHz
MicroCrystal	CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	32.768 kHz 9.0 pF +/-100 PPM -40/+85C	32.768 kHz
Micro Crystal	CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	100.000 kHz 9.0 pF +/-100 PPM -40/+85C	100 kHz
Micro Crystal	CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA	32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	32.768 kHz

CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC小型便捷式專用晶振，陶瓷或金屬封裝的32.768kHz和低頻(LF)石英晶體單元。有低ESR和寬負載電容(CL)范圍的音叉晶體可供選擇。這些XTAL產品滿足市場對振蕩器或微控制器等低功耗定時器件、高可靠性、擴展工作溫度和符合AEC-Q200汽車認證的要求。
