微型的HCMOS輸出溫補晶振很適合無線物聯網應用ECS-TXO-2520-33-120-AN-TR，Startup time is the period when an oscillator is first turned on. During this period there will be instabilities until the oscillations stabilize. Start-up time is usually measured in microseconds (µS), but it is frequency dependent and controlled by the feedback loop. The magnitude of the closed loop gain has great influence on the startup time. Factors that negatively affect closed loop gain include the low drive level, higher values of crystal capacitive load (CL), and equivalent series resistance (ESR). Low gain can cause excessively long start-up time, and too high of gain can cause start-up to fail altogether or over drive the crystal structure. The ideal gain is dependent on the negative resistance of the oscillator circuit, where the drive must overcome the negative resistance to start-up and build the oscillator output. Because of this the oscillator frequency directly influences the start-up time, so the time it takes to circulate the loop is considerably longer for a KHz oscillator than a MHz oscillator. Poor gain margin is a common problem in kHz oscillators, since drive levels are an order of magnitude lower and crystal ESR’s an order of magnitude higher. To overcome these issues careful design is required to match drive levels to suitable CL and ESR values.

The impedance of quartz crystal changes so dramatically with changes in the applied frequency, that all other circuit components can be considered as being of essentially continuous reactance. Consequently, when a crystal unit is used in the feedback loop of an oscillator, the frequency of the crystal unit will regulate itself so that it presents a reactance which satisfies the loop phase gain. A representation of the reactance vs. frequency of a quartz crystal unit is displayed in Figure 3.

啟動時間是石英晶體振蕩器第一次開啟的時間。在此期間，將出現不穩定，直到振蕩穩定。啟動時間通常以微秒 (µS) 為單位，但它取決于頻率并由反饋回路控制。閉環增益的大小對啟動時間影響很大。對閉環增益產生負面影響的因素包括低驅動電平、較高的晶體電容負載 (CL) 和等效串聯電阻 (ESR)。低增益會導致啟動時間過長，增益過高會導致啟動完全失敗或過度驅動晶體結構。理想增益取決于振蕩器電路的負電阻，其中驅動器必須克服負電阻才能啟動并建立振蕩器輸出。因此，振蕩器頻率直接影響啟動時間，因此KHz振蕩器的循環循環時間比MHz振蕩器長得多。增益裕度差是kHz振蕩器的常見問題，因?yàn)轵?qū)動電平低一個數量級，而晶體ESR高一個數量級。為了克服這些問題，需要仔細設計以使驅動電平與合適的CL和 ESR值相匹配。

微型的HCMOS輸出溫補晶振很適合無線物聯網應用ECS-TXO-2520-33-120-AN-TR，石英晶體的阻抗隨著應用頻率的變化而變化如此劇烈，以至于所有其他電路SMD有源晶振元件都可以被認為具有基本連續的電抗。因此，當晶體單元用于振蕩器的反饋回路時，晶體單元的頻率將自行調節，使其呈現滿足回路相位增益的電抗。圖 3 顯示了石英晶體單元的電抗與頻率的關系。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature 工作溫度
ECS-2033-200-BN	ECS晶振	ECS-2033	20MHz	-40°C ~ 85°C
ECS-2033-320-BN	ECS晶振	ECS-2033	32MHz	-40°C ~ 85°C
ECS-2033-320-BN	ECS晶振	ECS-2033	32MHz	-40°C ~ 85°C
ECS-2033-320-BN	有源ECS貼片晶振	ECS-2033	32MHz	-40°C ~ 85°C
ECS-TXO-2520-33-120-AN-TR	ECS晶振	*	12MHz	-40°C ~ 85°C
ECS-TXO-2520-33-120-AN-TR	ECS晶振	*	12MHz	-40°C ~ 85°C
ECS-TXO-2520-33-120-AN-TR	ECS晶振	*	12MHz	-40°C ~ 85°C
ECS-2333-330-BN-TR	ECS晶振	ECS-2333	33MHz	-40°C ~ 85°C
ECS-2333-330-BN-TR	ECS晶振	ECS-2333	33MHz	-40°C ~ 85°C
ECS-2333-330-BN-TR	ECS晶振	ECS-2333	33MHz	-40°C ~ 85°C
ECS-2333-200-BN-TR	ECS晶振	ECS-2333	20MHz	-40°C ~ 85°C
ECS-2333-200-BN-TR	ECS晶振	ECS-2333	20MHz	-40°C ~ 85°C
ECS-2333-200-BN-TR	ECS晶振	ECS-2333	20MHz	-40°C ~ 85°C

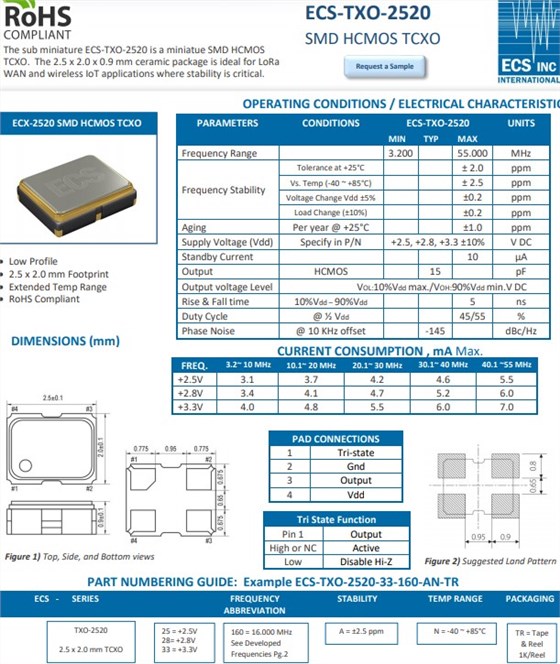

ECS這款高性能的TCXO溫度補償晶振ECS-TXO-2520-33-120-AN-TR，微縮ECS-TXO-2520是一種微縮SMD HCMOS TCXO。2.5 x 2.0 x 0.9 mm的陶瓷包裝是LoRa的理想選擇，在廣域網和無線物聯網應用中，穩定性至關重要。
