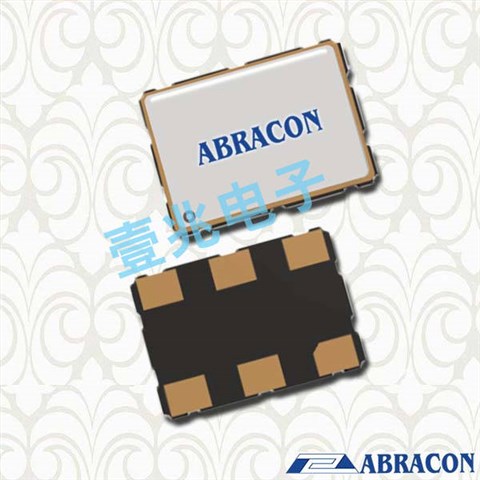

ASG-ULJ-100.000MHZ-514895-T2,ASG-ULJ有源晶振SPXO

產品簡介

ASG-ULJ-100.000MHZ-514895-T2,ASG-ULJ有源晶振SPXO，編碼：ASG-ULJ-100.000MHZ-514895-T2，型號：ASG-ULJ系列晶振，電壓：2.5v，工作溫度：-40°C ~ 85°C，尺寸：7.0*5.0mm，頻率：100MHz，電流：75mA，石英晶體振蕩器，有源晶振，超低相位抖動:最大0.2皮秒，集成12 kHz至20 MHz帶寬 -40°C至+85°C溫度范圍內的總頻率穩定性為50ppm 輸出類型:LVCMOS，LVPECL，LVDS 工業標準陶瓷SMD封裝:7.0 x5毫米，適用于時鐘鐘表，無線通信，智能手機，平板電腦，工業設備

產品詳情

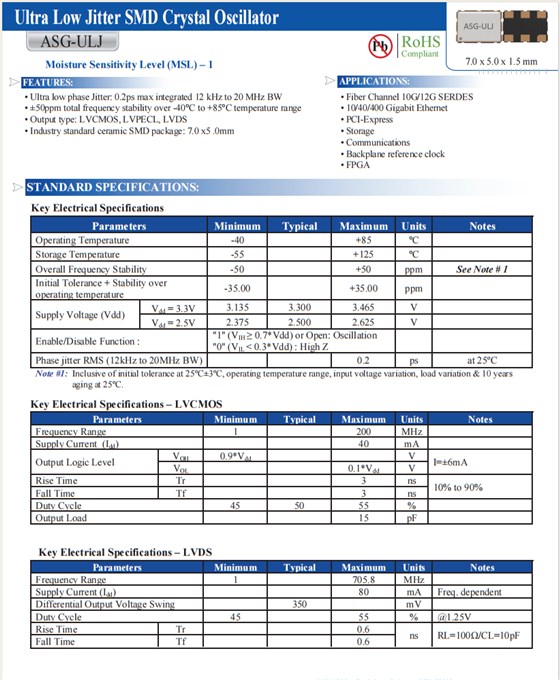

ASG-ULJ-100.000MHZ-514895-T2,ASG-ULJ有源晶振SPXO，參數表

原廠編碼	ASG-ULJ-100.000MHZ-514895-T2
品牌	Abracon 晶振
型號	ASG-ULJ
頻率	100MHz
輸出方式	LVPECL
電壓	2.5v
工作溫度	-40°C ~ 85°C

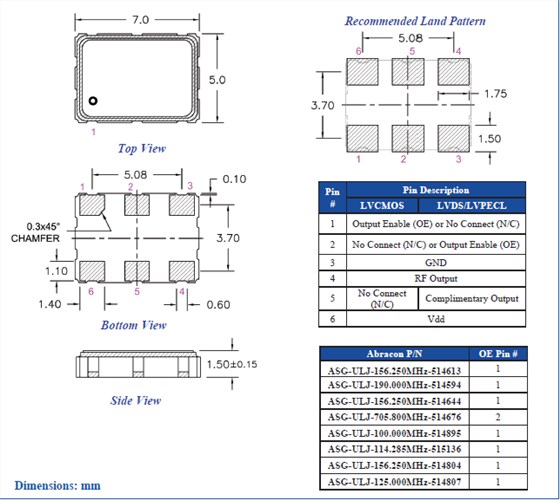

ASG-ULJ-100.000MHZ-514895-T2,ASG-ULJ有源晶振SPXO，尺寸圖

Manufacturer Part Number	晶振廠家	Series	Type 類型	Frequency 頻率	Output 輸出	Voltage - Supply電壓	Frequency Stability頻率穩定度	Operating Temperature工作溫度
ASG-ULJ-100.000MHZ-514895-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	100MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C
ASG-ULJ-100.000MHZ-514895-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	100MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C
ASG-ULJ-100.000MHZ-514895-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	100MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514804-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514804-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514804-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-114.285MHZ-515136-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	114.285MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
ASG-ULJ-114.285MHZ-515136-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	114.285MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
ASG-ULJ-114.285MHZ-515136-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	114.285MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
ASG-ULJ-125.000MHZ-514807-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	125MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-125.000MHZ-514807-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	125MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-125.000MHZ-514807-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	125MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514613-T	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514644-T	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C
ASG-ULJ-100.000MHZ-514895-T	Abracon 晶振	ASG-ULJ	XO (Standard)	100MHz	LVPECL	2.5V	±50ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514804-T	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-125.000MHZ-514807-T	Abracon 晶振	ASG-ULJ	XO (Standard)	125MHz	LVPECL	3.3V	±35ppm	-40°C ~ 85°C
ASG-ULJ-114.285-MHZ-512382-T	Abracon 晶振	ASG-ULJ	XO (Standard)	114.285MHz	-	-	-	-
ASG-ULJ-98.304-MHZ-509595-T	Abracon 晶振	ASG-ULJ	XO (Standard)	98.304MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
ASG-ULJ-114.285MHZ-515136-T	Abracon 晶振	ASG-ULJ	XO (Standard)	114.285MHz	LVCMOS	3.3V	±25ppm	-40°C ~ 85°C
ASG-ULJ-190.000MHZ-514594-T	Abracon 晶振	ASG-ULJ	XO (Standard)	190MHz	LVCMOS	3.3V	±50ppm	-40°C ~ 85°C
ASG-ULJ-156.250MHZ-514613-T2	Abracon 晶振	ASG-ULJ	XO (Standard)	156.25MHz	LVPECL	3.3V	±50ppm	-40°C ~ 85°C
