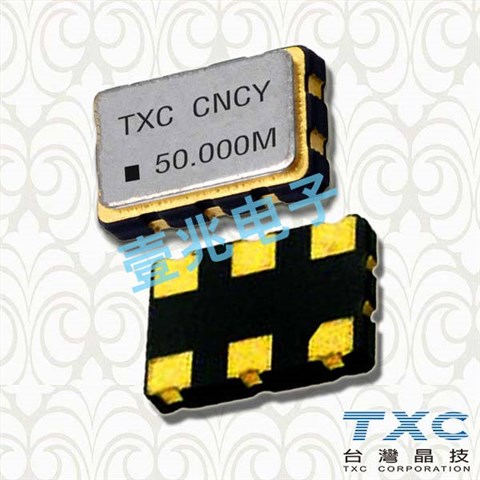

TXC CORPORATION,5032壓控晶振,TXC差分有源晶體，編碼：TXC CORPORATION，型號：CJ，工作溫度：-40°C ~ 85°，尺寸：5.0mm*3.2mm，頻率：156.25 MHz，精度：±50ppm，電壓：3.3V，電流：80mA，VCXO石英晶體振蕩器，差分輸出振蕩器，石英晶體振蕩器，貼片石英晶體，5032晶振，臺晶晶振 ，受電壓控制的晶體振蕩器，PECL輸出，優秀的低相位噪聲，具有三態功能，應用于以太網，無線電話，網絡設備，平板電腦，數碼電子。

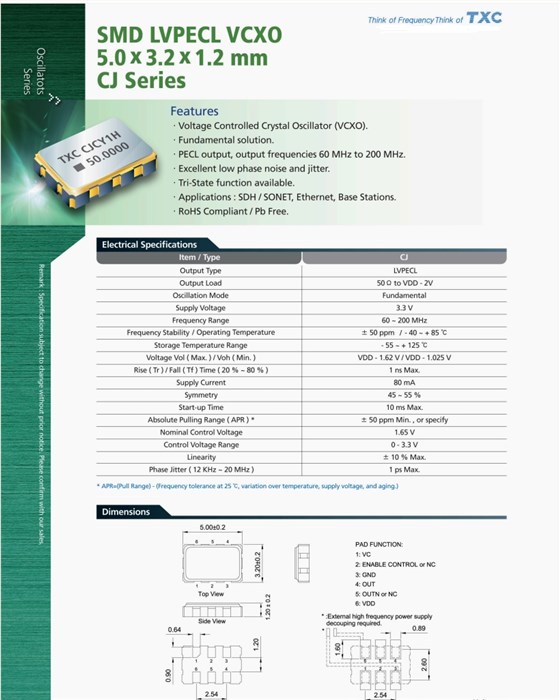

TXC CORPORATION,5032壓控晶振,TXC差分有源晶體，參數表
| 編碼 |
TXC CORPORATION |
| 品牌 | TXC |
| 型號 | CJ |
| 頻率 | 156.25 MHz |
| 精度 |
±50ppm |
| 電壓 |
3.3V |
| 電流 |
80mA |
| 工作溫度 |
-40°C ~ 85° |
| 尺寸 | 5.0mm*3.2mm |

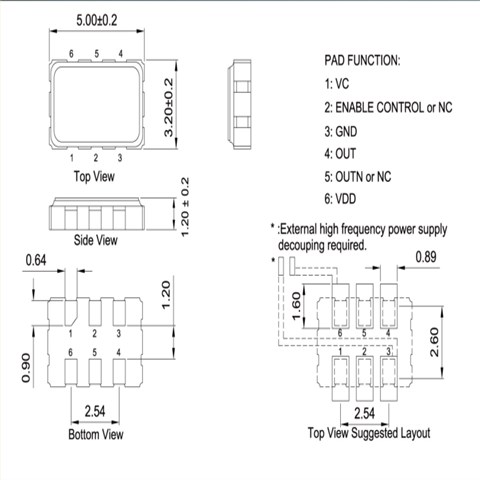

TXC CORPORATION,5032壓控晶振,TXC差分有源晶體，尺寸圖
| Mfr Part # | 壓控有源晶振 | Series | Type | Frequency | Output | Voltage - Supply | Frequency Stability | Operating Temperature |
| BX-100.000MBE-T | TXC CORPORATION | BX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| BT-156.250MBC-T | TXC CORPORATION | BT | SO (SAW) | 156.25 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-250.000MBC-T | TXC CORPORATION | BS | SO (SAW) | 250 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CJ-153.600MBE-T | TXC CORPORATION | CJ | VCXO | 153.6 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-125.000MBE-T | TXC CORPORATION | CF | XO (Standard) | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| CB-100.000MBE-T | TXC CORPORATION | CB | XO (Standard) | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CB-125.000MBE-T | TXC CORPORATION | CB | XO (Standard) | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-100.000MBE-T | TXC CORPORATION | CF | XO (Standard) | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-155.520MBB-T | TXC CORPORATION | CF | XO (Standard) | 155.52 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CF-150.000MBB-T | TXC CORPORATION | CF | XO (Standard) | 150 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| BX-125.000MBE-T | TXC CORPORATION | BX | XO (Standard) | 125 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-133.3330MBB-T | TXC CORPORATION | CF | XO (Standard) | 133.333 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CF-156.250MBB-T | TXC CORPORATION | CF | XO (Standard) | 156.25 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| BX-156.250MBE-T | TXC CORPORATION | BX | XO (Standard) | 156.25 MHz | HCSL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-61.440MBE-T | TXC CORPORATION | CJ | VCXO | 61.44 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-125.000MBE-T | TXC CORPORATION | CJ | VCXO | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-122.880MBE-T | TXC CORPORATION | CJ | VCXO | 122.88 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-156.250MBE-T | TXC CORPORATION | CJ | VCXO | 156.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| BS-106.250MBC-T | TXC CORPORATION | BS | SO (SAW) | 106.25 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-125.000MBC-T | TXC CORPORATION | BS | SO (SAW) | 125 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-150.000MBC-T | TXC CORPORATION | BS | SO (SAW) | 150 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-156.250MBC-T | TXC CORPORATION | BS | SO (SAW) | 156.25 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-212.500MBC-T | TXC CORPORATION | BS | SO (SAW) | 212.5 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-312.500MBC-T | TXC CORPORATION | BS | SO (SAW) | 312.5 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BT-150.000MBC-T | TXC CORPORATION | BT | SO (SAW) | 150 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| BT-212.500MBC-T | TXC CORPORATION | BT | SO (SAW) | 212.5 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| BT-250.000MBC-T | TXC CORPORATION | BT | SO (SAW) | 250 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| BT-312.500MBC-T | TXC CORPORATION | BT | SO (SAW) | 312.5 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-400.000MBC-T | TXC CORPORATION | BS | SO (SAW) | 400 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-425.000MBC-T | TXC CORPORATION | BS | SO (SAW) | 425 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-500.000MBC-T | TXC CORPORATION | BS | SO (SAW) | 500 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| BS-75.000MCC-T | TXC CORPORATION | BS | SO (SAW) | 75 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| BS-78.125MCC-T | TXC CORPORATION | BS | SO (SAW) | 78.125 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| BS-87.500MCC-T | TXC CORPORATION | BS | SO (SAW) | 87.5 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| BS-93.750MCC-T | TXC CORPORATION | BS | SO (SAW) | 93.75 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| BS-100.000MCC-T | TXC CORPORATION | BS | SO (SAW) | 100 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| BS-106.250MCC-T | TXC CORPORATION | BS | SO (SAW) | 106.25 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| BS-125.000MCC-T | TXC CORPORATION | BS | SO (SAW) | 125 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
