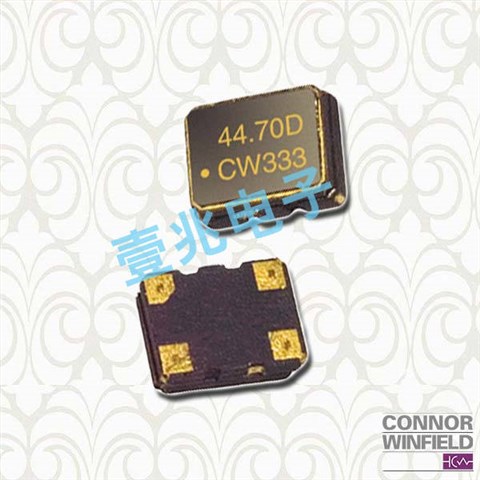

CWX813-024.0M,ConnorWinfield晶體振蕩器,7050差分晶振，編碼：CWX813-024.0M，型號：CWX813系列晶振，工作溫度：-20°C ~ 70°C，尺寸：7.0*5.0mm，頻率：24MHz，電壓：3.3V，精度：±25ppm，電流：30mA，輸出方式：LVCMOS，美國進口晶振，差分輸出振蕩器，康納-溫菲爾德CWX8xx -
系列符合RoHS標準
5.0x7.0mm毫米表面貼裝，固定
頻率晶體控制
振蕩器(XO)。為使用而設計
在要求嚴格頻率的應用中
穩定性和低抖動。表面貼裝
封裝設計用于高密度
安裝，是質量的最佳選擇
生產，型號CWX8xx系列

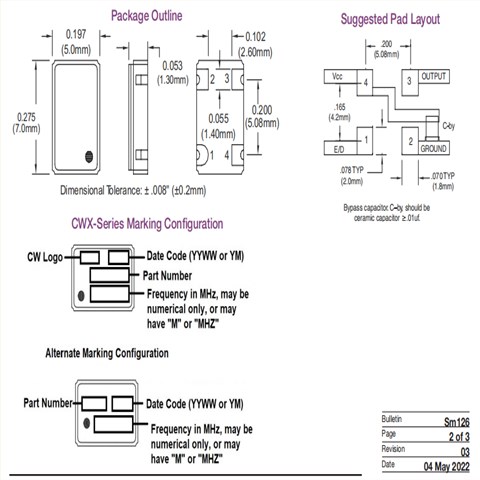

5.0 x 7.0毫米表面貼裝封裝
3.3V或5.0V工作電壓
CMOS輸出邏輯
可用的頻率穩定性:
低抖動《1pS RMS
三態使能/禁用
卷帶包裝
+/-25ppm或+/-50ppm
溫度范圍:-20至70攝氏度。

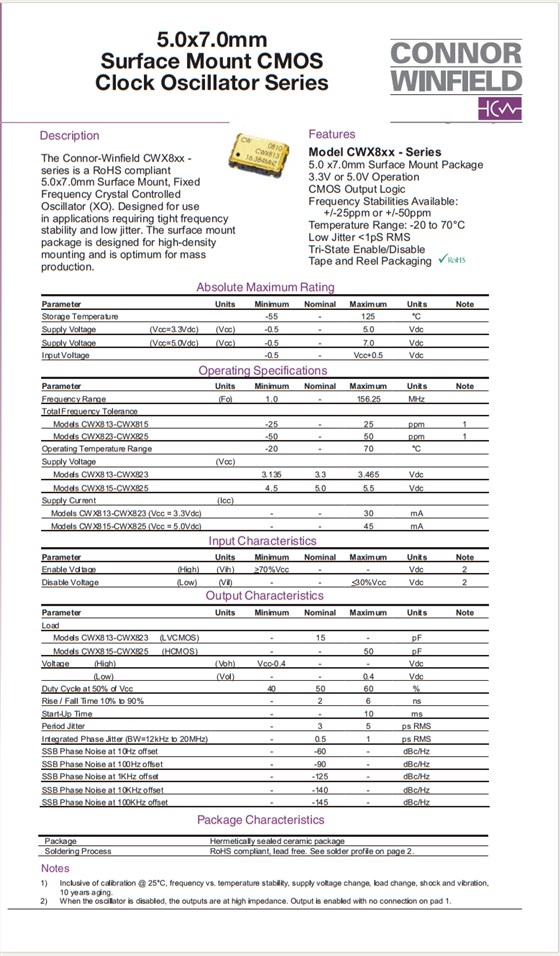

CWX813-024.0M,ConnorWinfield晶體振蕩器,7050差分晶振，參數表
| 編碼 | CWX813-024.0M |
| 品牌 | Connor-Winfield |
| 型號 | CWX813 |
| 頻率 | 24MHz |
| 輸出方式 | LVCMOS |
| 電壓 | 3.3V |
| 精度 | ±25ppm |
| 工作溫度 | -20°C ~ 70°C |
| 電流 | 30mA |
| Manufacturer Part Number原廠代碼 | 晶振廠家 | Series型號 | Type 類型 | Frequency 頻率 | Output 輸出 | Voltage - Supply電壓 | Frequency Stability頻率穩定度 | Operating Temperature 工作溫度 |
| CWX813-024.0M | Connor-Winfield | CWX813 | XO (Standard) | 24MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-024.0M | Connor-Winfield | CWX813 | XO (Standard) | 24MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-024.0M | Connor-Winfield | CWX813 | XO (Standard) | 24MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-012.0M | Connor-Winfield | CWX813 | XO (Standard) | 12MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-012.0M | Connor-Winfield | CWX813 | XO (Standard) | 12MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-012.0M | Connor-Winfield | CWX813 | XO (Standard) | 12MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-018.432M | Connor-Winfield | CWX813 | XO (Standard) | 18.432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-018.432M | Connor-Winfield | CWX813 | XO (Standard) | 18.432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-018.432M | Connor-Winfield | CWX813 | XO (Standard) | 18.432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-001.8432M | Connor-Winfield | CWX813 | XO (Standard) | 1.8432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-001.8432M | Connor-Winfield | CWX813 | XO (Standard) | 1.8432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-001.8432M | Connor-Winfield | CWX813 | XO (Standard) | 1.8432MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-007.3728M | Connor-Winfield | CWX813 | XO (Standard) | 7.3728MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-007.3728M | Connor-Winfield | CWX813 | XO (Standard) | 7.3728MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-007.3728M | Connor-Winfield | CWX813 | XO (Standard) | 7.3728MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-010.0M | Connor-Winfield | CWX813 | XO (Standard) | 10MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-010.0M | Connor-Winfield | CWX813 | XO (Standard) | 10MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-010.0M | Connor-Winfield | CWX813 | XO (Standard) | 10MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-025.0M | Connor-Winfield | CWX813 | XO (Standard) | 25MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-025.0M | Connor-Winfield | CWX813 | XO (Standard) | 25MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
| CWX813-025.0M | Connor-Winfield | CWX813 | XO (Standard) | 25MHz | LVCMOS | 3.3V | ±25ppm | -20°C ~ 70°C |
