6035無源貼片晶體,H10S-25.000-18-F-EXT-TR,拉隆晶振

產品簡介

6035無源貼片晶體,H10S-25.000-18-F-EXT-TR,拉隆晶振 ，編碼：H10S-25.000-18-F-EXT-TR，型號：H10S，工作溫度：-40°C ~ 85°C，尺寸：6.0mm*3.5mm，頻率：25MHz，精度：±100ppm，負載電容：18pF，美國進口晶振，無源晶振，貼片石英晶體，石英晶體諧振器，t貼片晶振，進口6035貼片晶振 ，高精度和穩定性，從8.00 MHz到200.00 MHz的寬頻率范圍，產品公司應用于時鐘鐘表，智能手機，智能手表，無線電話，無線通信，平板電腦，手機導航等應用

產品詳情

6035無源貼片晶體,H10S-25.000-18-F-EXT-TR,拉隆晶振，編碼：H10S-25.000-18-F-EXT-TR，型號：H10S，工作溫度：-40°C ~ 85°C，尺寸：6.0mm*3.5mm，頻率：25MHz，精度：±100ppm，負載電容：18pF，美國進口晶振，無源晶振，貼片石英晶體，石英晶體諧振器，t貼片晶振，進口6035貼片晶振 ，高精度和穩定性，從8.00 MHz到200.00 MHz的寬頻率范圍，產品公司應用于時鐘鐘表，智能手機，智能手表，無線電話，無線通信，平板電腦，手機導航等應用。

6035無源貼片晶體,H10S-25.000-18-F-EXT-TR,拉隆晶振，參數表

編碼	H10S-25.000-18-F-EXT-TR
品牌	Raltron
型號	H10S
頻率	25MHz
精度	±100ppm
負載電容	18pF
工作溫度	-40°C ~ 85°C
尺寸	6.0mm*3.5mm

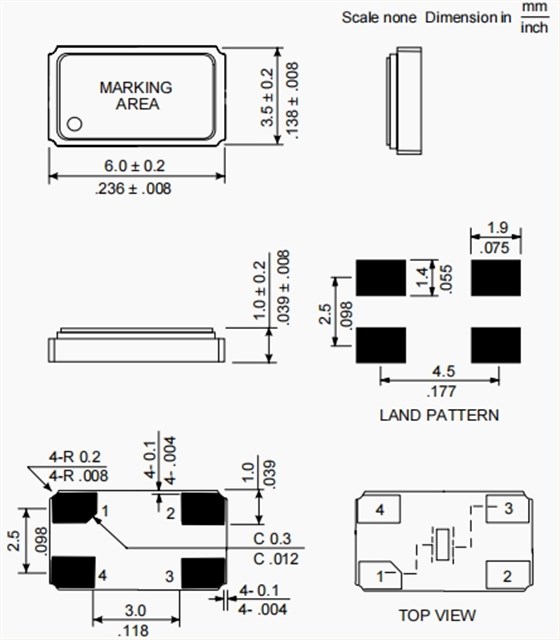

6035無源貼片晶體,H10S-25.000-18-F-EXT-TR,拉隆晶振，尺寸圖

Mfr Part #	拉隆晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
H13-8.000-18-3030-EXT-TR	Raltron Electronics	H13	8 MHz	±30ppm	18pF	-40°C ~ 85°C
H13-6.000-16-5050-EXT-TR	Raltron Electronics	H13	6 MHz	±50ppm	16pF	-30°C ~ 85°C
H10S-25.000-18-F-EXT-TR	Raltron Electronics	H10S	25 MHz	±100ppm	18pF	-40°C ~ 85°C
H13-6.000-18-3030-EXT-TR	Raltron Electronics	H13	6 MHz	±30ppm	18pF	-40°C ~ 85°C
H13-24.000-18-1020-EXT-TR	Raltron Electronics	H13	24 MHz	±10ppm	18pF	-30°C ~ 85°C
H10S-26.000-18-F-1030-EXT-TR	Raltron Electronics	H10S	26 MHz	±10ppm	18pF	-40°C ~ 85°C
H10S-27.120-18-F-3050-TR	Raltron Electronics	H10S	27.12 MHz	±30ppm	18pF	-10°C ~ 60°C
H13-25.000-20-F-2030-TR-NS1	Raltron Electronics	H13	25 MHz	±20ppm	20pF	-10°C ~ 60°C
H120B-24.000-18-3030-TR	Raltron Electronics	H120B	24 MHz	±30ppm	18pF	-20°C ~ 70°C
H13-10.000-18-TR	Raltron Electronics	H13	10 MHz	±50ppm	18pF	-10°C ~ 60°C
H13-18.432-18-EXT-TR	Raltron Electronics	H13	18.432 MHz	±50ppm	18pF	-40°C ~ 85°C
H13-11.0592-20-3030-EXT-TR	Raltron Electronics	H13	11.0592 MHz	±30ppm	20pF	-40°C ~ 85°C
H13-14.31818-18-1030-EXT-TR	Raltron Electronics	H13	14.31818 MHz	±10ppm	18pF	-40°C ~ 85°C
H13-12.000-18-2020-TR	Raltron Electronics	H13	12 MHz	±20ppm	18pF	-10°C ~ 60°C
H13-30.000-18-F-TR	Raltron Electronics	H13	30 MHz	±50ppm	18pF	-10°C ~ 60°C
H13-6.000-20-3030-EXT-TR-NS1	Raltron Electronics	H13	6 MHz	±30ppm	20pF	-40°C ~ 85°C
H10S-10.000-18-EXT-TR	Raltron Electronics	H10S	10 MHz	±100ppm	18pF	-40°C ~ 85°C
H10S-12.000-18-2020-TR-NS1	Raltron Electronics	H10S	12 MHz	±20ppm	18pF	-10°C ~ 60°C
H10S-12.000-18-5050-EXT-TR	Raltron Electronics	H10S	12 MHz	±50ppm	18pF	-40°C ~ 85°C
H10S-13.560-10-1010-TR	Raltron Electronics	H10S	13.56 MHz	±10ppm	10pF	-10°C ~ 60°C
H10S-14.7456-16-1020-TR	Raltron Electronics	H10S	14.7456 MHz	±10ppm	16pF	-10°C ~ 60°C
H10S-16.000-20-3050-EXT-TR	Raltron Electronics	H10S	16 MHz	±30ppm	20pF	-40°C ~ 85°C
H10S-16.384-18-1030-TR	Raltron Electronics	H10S	16.384 MHz	±10ppm	18pF	-10°C ~ 60°C
H10S-18.432-18-EXT-TR	Raltron Electronics	H10S	18.432 MHz	±100ppm	18pF	-40°C ~ 85°C
H10S-20.000-18-1010-TR	Raltron Electronics	H10S	20 MHz	±10ppm	18pF	-10°C ~ 60°C
H10S-24.000-18-2020-EXT-TR	Raltron Electronics	H10S	24 MHz	±20ppm	18pF	-40°C ~ 85°C
H10S-6.000-20-3050-TR	Raltron Electronics	H10S	6 MHz	±30ppm	20pF	-10°C ~ 60°C
H10S-8.000-18-1020-EXT-TR	Raltron Electronics	H10S	8 MHz	±10ppm	18pF	-40°C ~ 85°C
H10S-8.000-18-2020-TR-NS1	Raltron Electronics	H10S	8 MHz	±20ppm	18pF	-10°C ~ 60°C
