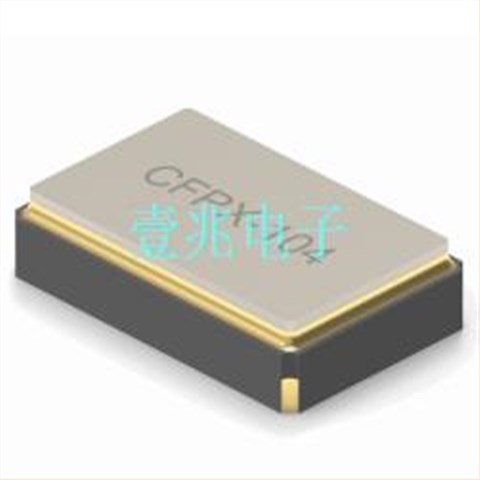

LFXTAL059531REEL,CFPX-104諧振器,IQD石英晶振

產品簡介

LFXTAL059531REEL,CFPX-104諧振器,IQD石英晶振，編碼：LFXTAL059531REEL，型號：CFPX-104，工作溫度：-40C ~ 85°C，尺寸：5.0mm*3.2mm，頻率：24.576 MHz，精度：±20ppm，負載電容：18pF，歐美晶振，5032晶振，石英晶體諧振器，石英貼片晶體，貼片晶振，SMD晶體，帶四個焊盤的標準5x3.2mm毫米SMD晶體，帶接縫密封金屬蓋的陶瓷封裝，密封，被廣泛應用于時鐘鐘表，智能手機，數碼電子產品，智能家具家電，平板電腦，計算機，網絡設備，GPS，藍牙等用途。

產品詳情

LFXTAL059531REEL,CFPX-104諧振器,IQD石英晶振，參數表

編碼	LFXTAL059531REEL
品牌	IQD
型號	CFPX-104
頻率	24.576 MHz
精度	±20ppm
負載電容	18pF
工作溫度	-40C ~ 85°C
尺寸	5.0mm*3.2mm

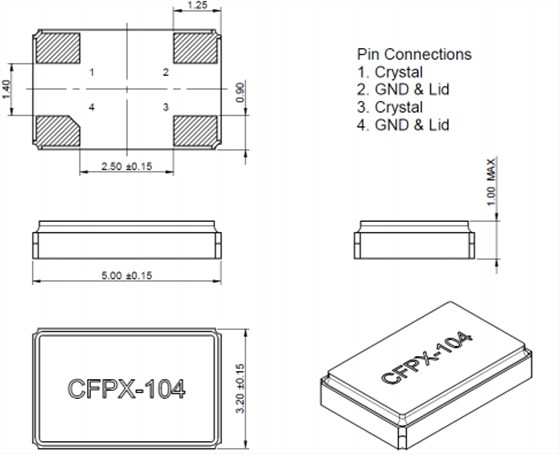

LFXTAL059531REEL,CFPX-104諧振器,IQD石英晶振，尺寸圖

Mfr Part #	石英晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL055663REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL061627REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055901REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL059158REEL	IQD Frequency Products	CFPX-104	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL055663BULK	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL030819REEL	IQD Frequency Products	CFPX-104	16 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059530REEL	IQD Frequency Products	CFPX-104	24 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL061633REEL	IQD Frequency Products	CFPX-104	13.56 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055999REEL	IQD Frequency Products	CFPX-104	12 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL033075REEL	IQD Frequency Products	CFPX-104	25 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059532REEL	IQD Frequency Products	CFPX-104	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL056556REEL	IQD Frequency Products	CFPX-104	12.5 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL059528REEL	IQD Frequency Products	CFPX-104	16.384 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL050518REEL	IQD Frequency Products	CFPX-104	12 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL061486REEL	IQD Frequency Products	CFPX-104	8.192 MHz	±30ppm	10pF	-40°C ~ 85°C
LFXTAL036401REEL	IQD Frequency Products	CFPX-104	12 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL069277REEL	IQD Frequency Products	CFPX-104	8 MHz	±20ppm	20pF	-40°C ~ 85°C
LFXTAL059531REEL	IQD Frequency Products	CFPX-104	24.576 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL033645REEL	IQD Frequency Products	CFPX-104	40 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL056583REEL	IQD Frequency Products	CFPX-104	10 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL061642REEL	IQD Frequency Products	CFPX-104	25 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL032817REEL	IQD Frequency Products	CFPX-104	24 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL072402REEL	IQD Frequency Products	CFPX-104	10 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL059523REEL	IQD Frequency Products	CFPX-104	12.288 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL033328BULK	IQD Frequency Products	CFPX-104	14.7456 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL033075BULK	IQD Frequency Products	CFPX-104	25 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059532BULK	IQD Frequency Products	CFPX-104	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL032878BULK	IQD Frequency Products	CFPX-104	12 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059522BULK	IQD Frequency Products	CFPX-104	12 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL030819BULK	IQD Frequency Products	CFPX-104	16 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059530BULK	IQD Frequency Products	CFPX-104	24 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL059522REEL	IQD Frequency Products	CFPX-104	12 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL032878REEL	IQD Frequency Products	CFPX-104	12 MHz	±50ppm	18pF	-10°C ~ 60°C
