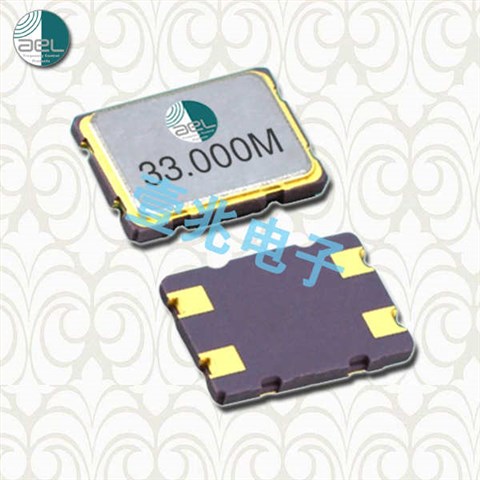

ELM10-16.000MHz-8-R60-2-D20-T,AEL貼片晶振,2520小體積晶振

產品簡介

ELM10-16.000MHz-8-R60-2-D20-T,AEL貼片晶振,2520小體積晶振，編碼：ELM10-16.000MHz-8-R60-2-D20-T，型號：ELM10，工作溫度：-40°C ~ 85°C，尺寸：2.5mm*2.0mm，頻率：16MHz，精度：±20ppm，負載電容：8pF，美國進口晶振，石英晶體諧振器，石英晶體晶振，貼片晶體，艾爾貼片晶振，無源晶體，貼片石英晶體諧振器公差:15ppm 工作溫度0攝氏度至+50攝氏度至-40攝氏度至+125攝氏度，產品廣泛應用于時鐘鐘表，智能手機，智能兒童游戲機，手機導航，數碼電子，無線局域網，無線電話等應用。

產品詳情

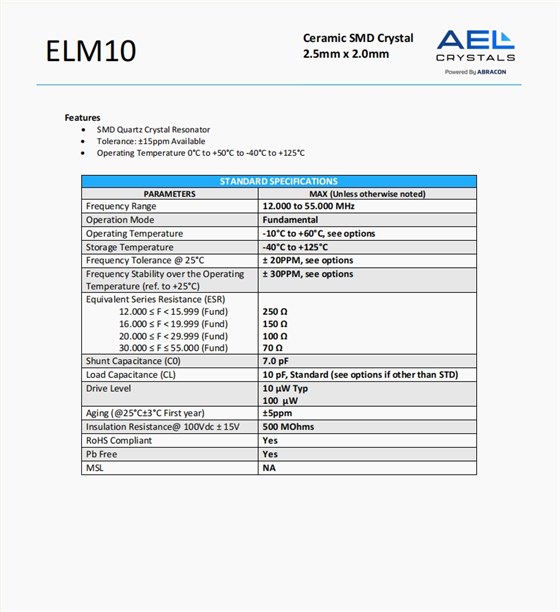

ELM10-16.000MHz-8-R60-2-D20-T,AEL貼片晶振,2520小體積晶振，參數表

編碼	ELM10-16.000MHz-8-R60-2-D20-T
品牌	AEL
型號	ELM10
頻率	16MHz
精度	±20ppm
負載電容	8pF
工作溫度	-40°C ~ 85°C
尺寸	2.5mm*2.0mm

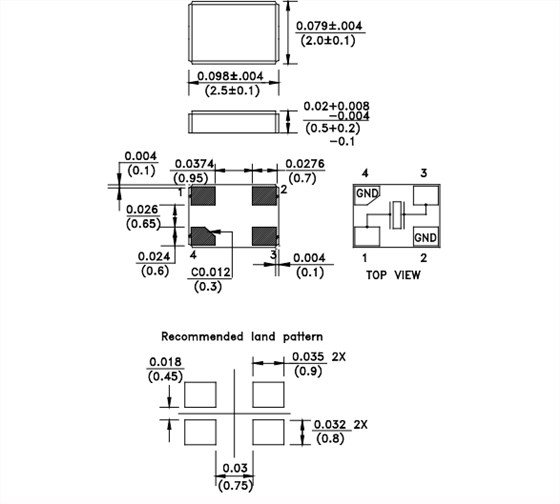

ELM10-16.000MHz-8-R60-2-D20-T,AEL貼片晶振,2520小體積晶振，尺寸圖

Part	AEL晶振	型號	Length	Width	Height	Operating Temperature
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	ELM10	2.5mm	2mm	0.5mm	-40°C ~ 85°C
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	ELM10	2.5mm	2mm	0.5mm	-30°C ~ 85°C
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	ELM11	2mm	1.6mm	0.5mm	-40°C ~ 85°C
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	ELM12W	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-40°C ~ 85°C
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	ELM3	5mm	3.2mm	1mm	-20°C ~ 70°C
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-10°C ~ 60°C
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-30°C ~ 85°C
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 70°C
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-20°C ~ 75°C
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	ELM8	3mm	2.5mm	0.6mm	-40°C ~ 85°C
ELS05-32.768kHz-9-T	AEL Crystals	ELS05	1.6mm	1mm	0.5mm	-40°C ~ 85°C
ELS06-32.768kHz-9-T	AEL Crystals	ELS06	2mm	1.2mm	0.6mm	-40°C ~ 85°C
ELS07-32.768kHz-6-T	AEL Crystals	ELS07	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C
ELS07-32.768kHz-T	AEL Crystals	ELS07	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C
ELS13-32.768kHz-7-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
ELS13-32.768kHz-7-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
ELS13-32.768kHz-9-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
ELS13-32.768kHz-T	AEL Crystals	ELS13	7mm	1.5mm	1.4mm	-40°C ~ 85°C
