C3E-12.000-8-2050-X1-R無源晶體,AKER貼片石英晶體
頻率:12 MHz

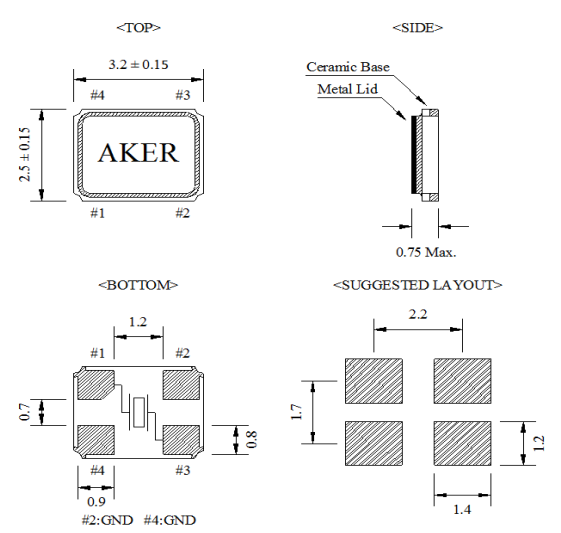

尺寸:3.2*2.5mm
C3E-12.000-8-2050-X1-R無源晶體,AKER貼片石英晶體,編碼:C3E-12.000-8-2050-X1-R,型號:C3E X1,工作溫度:-40°C ~ 125°C,尺寸:3.2*2.5mm,頻率:12 MHz,精度:±20ppm,負載電容:8pF,3225進口晶振,安基貼片晶振,石英晶體諧振器,貼片晶體,數碼電子晶振,石英晶體晶振,超小型表面貼片型SMD晶振,最適合使用在汽車電子領域中,也是特別要求高可靠性的引擎控制用CPU的時鐘部分.低頻晶振可從7.98MHz起對應,小型,超薄型具備強防焊裂性,石英晶體在極端嚴酷的環境條件下也能發揮穩定的起振特性,產品本身具有耐熱,耐振,耐撞擊等優良的耐環境特性,滿足無鉛焊接以及高溫回流溫度曲線要求,符合AEC-Q200標準.
C3E-12.000-8-2050-X1-R無源晶體,AKER貼片石英晶體,參數表
編碼 | C3E-12.000-8-2050-X1-R |
品牌 | AKER |
型號 | C3E X1 |
頻率 | 12MHz |
精度 |
±20pm |
負載電容 | 8pF |
工作溫度 |
40°C ~ 125°C |
尺寸 | 3.2*2.5mm |
Mfr Part # | 石英晶體晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
C5S-26.000-16-1010-R | Aker Technology USA | C5S | 26 MHz | ±10ppm | 16pF | -20°C ~ 70°C |
C5S-8.000-18-3030-R | Aker Technology Corp | C5S | 8 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
CAA-4.000-18-3050-X-R | Aker Technology Corp | CAA | 4 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
CAA-11.0592-18-3050-R | Aker Technology Corp | CAA | 11.0592 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
CAA-8.000-18-3050-X-R | Aker Technology Corp | CAA | 8 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
CAA-40.000-18-3050-R | Aker Technology Corp | CAA | 40 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
C3E-12.000-8-2050-X1-R | Aker Technology Corp | C3E X1 | 12 MHz | ±20ppm | 8pF | -40°C ~ 125°C |
C3E-16.000-10-3050-X1-R | Aker Technology Corp | C3E X1 | 16 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
C3E-20.000-8-3050-X1-R | Aker Technology Corp | C3E X1 | 20 MHz | ±30ppm | 8pF | -40°C ~ 125°C |
C5S-12.000-18-1020-R | Aker Technology Corp | C5S | 12 MHz | ±10ppm | 18pF | -10°C ~ 70°C |
C3E-16.000-10-2050-X1-R | Aker Technology Corp | C3E X1 | 10 MHz | ±20ppm | 10pF | -40°C ~ 125°C |
C3E-30.000-8-2050-X1-R | Aker Technology Corp | C3E X1 | 30 MHz | ±20ppm | 8pF | -40°C ~ 125°C |
C7S-12.000-12-3030-X-R | Aker Technology Corp | C7S | 12 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
C7S-8.000-18-1020-R | Aker Technology Corp | C7S | 8 MHz | ±10ppm | 18pF | -10°C ~ 70°C |
C7S-8.000-18-1030-X-R | Aker Technology Corp | C7S | 8 MHz | ±10ppm | 18pF | -40°C ~ 85°C |
CA4-16.000-18-3050-R | Aker Technology Corp | CA4 | 16 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
CA4-8.000-16-3050-R | Aker Technology Corp | CA4 | 8 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
C3E-16.000-8-2050-X1-R | Aker Technology Corp | C3E X1 | 16 MHz | ±20ppm | 8pF | -40°C ~ 125°C |
C3E-20.000-10-3050-X1-R | Aker Technology Corp | C3E X1 | 20 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
C5S-24.000-20-3030-X-R | Aker Technology Corp | C5S | 24 MHz | ±30ppm | 20pF | -40°C ~ 85°C |
C5S-12.000-16-5050-X-R | Aker Technology Corp | C5S | 12 MHz | ±50ppm | 16pF | -40°C ~ 85°C |
C5S-20.000-20-3050-X-R | Aker Technology Corp | C5S | 20 MHz | ±50ppm | 20pF | -40°C ~ 85°C |
C5S-12.000-16-3030-X-R | Aker Technology USA | C5S | 12 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
C5S-8.000-12-2020-X-R | Aker Technology Corp | C5S | 8 MHz | ±20ppm | 12pF | -40°C ~ 85°C |
C6S-16.000-12-5050-X-R | Aker Technology Corp | C6S | 16 MHz | ±50ppm | 12pF | -40°C ~ 85°C |
C5S-8.000-18-3030-X-R | Aker Technology USA | C5S | 8 MHz | ±30ppm | 18pF | -40°C ~ 85°C |
C5S-8.000-16-3030-X-R | Aker Technology USA | C5S | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
C5S-24.000-18-20100-A-X1-R | Aker Technology Corp | C5S Auto | - | ±20ppm | 18pF | -40°C ~ 125°C |
