ECS美國伊西斯晶振32.768KHZ晶振石英晶體晶振型號對應尺寸表

ECS Inc. International is a privately held global

leader that is at the forefront of servicing a

growing global demand for highly reliable and

innovative passive components that meet the

needs of today and beyond.

World class research firms and electronic

device designers recognize ECS Inc.

International as a top 25 international developer

and manufacturer of innovative frequency

control, sychronization, connectivity, and

magnetic power solutions.

ECS Inc. International’s primary focus is

becoming the most cost-effective solutions[1]based vendor of choice in its space. This

is accomplished by providing cutting edge

products and assisting customers to create,

build, and maintain the most technologically

advanced and most reliable products in the

world today.

Based in Lenexa, Kansas, U.S.A., ECS Inc.

International was incorporated in 1980 and has

conducted business on an international scale

for more than 40 years. During that time, ECS Inc.

International has delivered more than 3.4 billion

passive timing and magnetic solutions to customers

in more than 150 countries.

ECS Inc. International has a global support system

of more than 28 locations that include manufacturing

facilities and logistic centers in South Korea, Japan,

China, Singapore, the United Kingdom and the

United States. There are more than 185 sales

offices in 22 countries that provide marketing, sales,

engineering, distribution, and customer service.

To this day, ECS Inc. International maintains an

innovative corporate culture designed to promote

and develop creativity that maximizes our ability

to meet the needs of the ever-changing global

electronics market.

ECS晶振國際是一家私營的全球領導者,處于服務日益增長的全球?qū)Ω呖煽啃院蛣?chuàng)新無源元件需求的最前沿,以滿足當今及未來的需求.世界一流的研究公司和電子設備設計師認可ECS公司.作為創新頻率控制,同步,ECS石英晶體連接和磁力解決方案的25強國際開發商和制造商.ECS.n:行情).International的主要目標是成為該領域最具成本效益的解決方案供應商.這是通過提供尖端產品和幫助客戶創造、建造和維護當今世界上技術最先進、最可靠的產品來實現的.

總部位于美國堪薩斯州Lenexa的ECS公司.國際公司成立于1980年,在國際范圍內開展業務已有40多年.在此期間,ECSInc..國際公司已經為150多個國家的客戶提供了超過34億個無源定時和磁性解決方案.ECS.n:行情).表晶32.768K國際擁有超過28個地點的全球支持系統,包括韓國,日本,中國,新加坡,英國和美國的制造工廠和物流中心.在22個國家有超過185個銷售辦事處,提供市場營銷、銷售、工程、分銷和客戶服務.直到今天,ECS公司.國際保持創新的企業文化,旨在促進和發展創造力,最大限度地滿足不斷變化的全球電子市場的需求

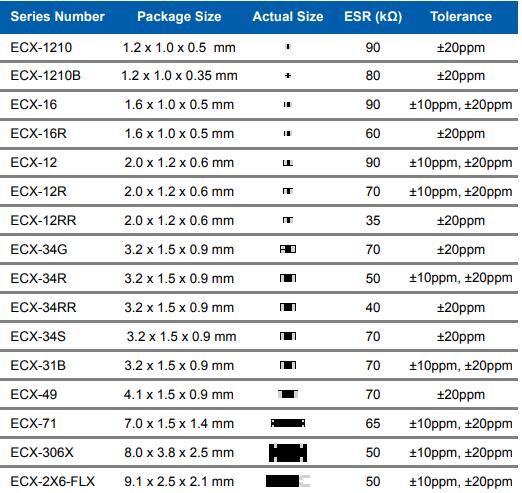

Series Number晶振型號	Package Size尺寸	頻率	ESR (kΩ)	Tolerance
ECX-1210	1.2 x 1.0 x 0.5 mm	32.768KHZ	90	±10ppm, ±20ppm
ECX-1210B	1.2 x 1.0 x 0.35 mm	32.768KHZ	80	±10ppm, ±20ppm
ECX-16	1.6 x 1.0 x 0.5 mm	32.768KHZ	90	±10ppm, ±20ppm
ECX-16R	1.6 x 1.0 x 0.5 mm	32.768KHZ	60	±20ppm
ECX-12	2.0 x 1.2 x 0.6 mm	32.768KHZ	90	±20ppm
ECX-12R	2.0 x 1.2 x 0.6 mm	32.768KHZ	70	±20ppm
ECX-12RR	2.0 x 1.2 x 0.6 mm	32.768KHZ	35	±20ppm
ECX-34G	3.2 x 1.5 x 0.9 mm	32.768KHZ	70	±20ppm
ECX-34RR	3.2 x 1.5 x 0.9 mm	32.768KHZ	40	±20ppm
ECX-34S	3.2 x 1.5 x 0.9 mm	32.768KHZ	70	±20ppm
ECX-31B	3.2 x 1.5 x 0.9 mm	32.768KHZ	70	±10ppm, ±20ppm
ECX-49	4.1 x 1.5 x 0.9 mm	32.768KHZ	70	±10ppm, ±20ppm
ECX-71	7.0 x 1.5 x 1.4 mm	32.768KHZ	65	±10ppm, ±20ppm
ECX-306X	8.0 x 3.8 x 2.5 mm	32.768KHZ	50	±10ppm, ±20ppm
ECX-2X6-FLX	9.1 x 2.5 x 2.1 mm	32.768KHZ	50	±10ppm, ±20pp
ECX-34R	3.2 x 1.5 x 0.9 mm	32.768KHZ	50	±10ppm, ±20pp

ECS Inc. International offers a wide variety of quartz crystal products.  Tuning fork crystals, also known as watch crystals, are designed to   generate a standard 32.768 kHz frequency. While limited in frequency,   tuning forks are more cost-effective than AT-cut crystals and require very   little power, 0.1uW, whereas most AT-cut crystals are 10uW, making them   ideal for low power and sleep applications. For more product options and   information, contact our engineering team at

ECS國際上提供種類繁多的石英晶體產品.音叉晶體,也被稱為手表晶體,被設計成產生標準的32.768kHz頻率.雖然頻率有限,貼片晶振音叉比at切割晶體更具成本效益,需要非常少的功率,0.1uW,而大多數at切割晶體是10uW,使其成為低功耗和睡眠應用的理想選擇.欲了解更多產品選項和信息,請聯系我們

Wearable Devices

Wireless Modules

IoT / IoT Thermostats

Bluetooth / BLE

M2M Connectivity

Ultra-Low Power MCU

Drug Delivery Devices

可穿戴設備

無線模塊

IoT / IoT恒溫器

藍牙/ BLE

M2M連接

超低功耗MCU

給藥裝置貼片石英晶體

Manufacturer Part Number 晶振原廠編碼	Series型號	Frequency	Operating Temperature    工作溫度	Package / Case 包裝/封裝	Size / Dimension 尺寸
ECS-.327-12.5-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-17X-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17X-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17X-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-13X	ECS-2X6X	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.327-12.5-38-TR	ECX-71	32.768kHz	-40°C ~ 85°C	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)
ECS-.327-12.5-38-TR	ECX-71	32.768kHz	-40°C ~ 85°C	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)
ECS-.327-12.5-38-TR	ECX-71	32.768kHz	-40°C ~ 85°C	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)
ECS-.327-7-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-17X-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-6-17X-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-6-17X-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17X-C-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17X-C-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17X-C-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-CDX-1128	ECS-CDX	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-CDX-1128	ECS-CDX	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-CDX-1128	ECS-CDX	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-38-TR	ECX-71	32.768kHz	-40°C ~ 85°C	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)
ECS-.327-7-38-TR	ECX-71	32.768kHz	-40°C ~ 85°C	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)
ECS-.327-7-38-TR	ECX-71	32.768kHz	-40°C ~ 85°C	4-SMD, Flat Lead, 3 Leads	0.276" L x 0.060" W (7.00mm x 1.50mm)
ECS-.327-12.5-13FLX-C	ECS-2x6-FLX	32.768kHz	-40°C ~ 85°C	Cylindrical Can, Radial	0.079" Dia x 0.240" L (2.00mm x 6.10mm)
ECS-.327-12.5-13FLX-C	ECS-2x6-FLX	32.768kHz	-40°C ~ 85°C	Cylindrical Can, Radial	0.079" Dia x 0.240" L (2.00mm x 6.10mm)
ECS-.327-12.5-13FLX-C	ECS-2x6-FLX	32.768kHz	-40°C ~ 85°C	Cylindrical Can, Radial	0.079" Dia x 0.240" L (2.00mm x 6.10mm)
ECS-3X8X	ECS-3X8X	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.122" Dia x 0.323" L (3.10mm x 8.20mm)
ECS-.327-12.5-13	ECS-2x6	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-3X8	ECS-3X8	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.122" Dia x 0.323" L (3.10mm x 8.20mm)
ECS-.327-12.5-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.061" W (3.20mm x 1.50mm)
ECS-.327-12.5-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.061" W (3.20mm x 1.50mm)
ECS-.327-9-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34B-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-39-TR	ECX-39	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.190" L x 0.070" W (4.90mm x 1.80mm)
ECS-.327-12.5-39-TR	ECX-39	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.190" L x 0.070" W (4.90mm x 1.80mm)
ECS-.327-12.5-39-TR	ECX-39	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.190" L x 0.070" W (4.90mm x 1.80mm)
ECS-.327-12.5-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34B-C-TR	ECX-31B	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-12.5-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-12.5-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-7-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-7-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-7-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-6-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-6-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-6-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-12.5-17-TR	ECX-306	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17-TR	ECX-306	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-17-TR	ECX-306	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-12.5-16-TR	ECX-16	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.063" L x 0.039" W (1.60mm x 1.00mm)
ECS-.327-12.5-16-TR	ECX-16	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.063" L x 0.039" W (1.60mm x 1.00mm)
ECS-.327-12.5-16-TR	ECX-16	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.063" L x 0.039" W (1.60mm x 1.00mm)
ECS-.327-6-34S-TR	ECX-34S	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.061" W (3.20mm x 1.50mm)
ECS-.327-6-34S-TR	ECX-34S	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.061" W (3.20mm x 1.50mm)
ECS-.327-6-34S-TR	ECX-34S	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.061" W (3.20mm x 1.50mm)
ECS-.327-12.5-34S-TR	ECX-34S	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34S-TR	ECX-34S	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34S-TR	ECX-34S	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-13FLX-TR	ECS-2x6-FLX	32.768kHz	-40°C ~ 85°C	Cylindrical Can, Radial	0.079" Dia x 0.240" L (2.00mm x 6.10mm)
ECS-.327-6-13FLX-TR	ECS-2x6-FLX	32.768kHz	-40°C ~ 85°C	Cylindrical Can, Radial	0.079" Dia x 0.240" L (2.00mm x 6.10mm)
ECS-.327-6-13FLX-TR	ECS-2x6-FLX	32.768kHz	-40°C ~ 85°C	Cylindrical Can, Radial	0.079" Dia x 0.240" L (2.00mm x 6.10mm)
ECS-.327-6-17X-C-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-6-17X-C-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-6-17X-C-TR	ECX-306X	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-7-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34QS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-1.536-12.5-13X	ECS-31X	153.6kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.327-9-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-9-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34R-C-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34R-C-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34R-C-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34QCS-TR	ECX-34Q	32.768kHz	-40°C ~ 125°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-1.536-12.5-13	ECS-31	153.6kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.320-12.5-13X	ECS-31X	32kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.655-12.5-13	ECS-31	65.536kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-1.00-12.5-13X	ECS-31X	100kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.327-9-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-9-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-9-12-TR	ECX-12	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.655-12.5-13X	ECS-31X	65.536kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.327-CDX-1074	-	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-CDX-1074	-	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-CDX-1074	-	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-CDX-1082	-	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-CDX-1082	-	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-CDX-1082	-	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-6-17-TR	ECX-306	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-6-17-TR	ECX-306	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-6-17-TR	ECX-306	32.768kHz	-40°C ~ 85°C	4-SOJ, 5.50mm pitch	0.315" L x 0.150" W (8.00mm x 3.80mm)
ECS-.327-9-16-TR	ECX-16	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.063" L x 0.039" W (1.60mm x 1.00mm)
ECS-.327-9-16-TR	ECX-16	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.063" L x 0.039" W (1.60mm x 1.00mm)
ECS-.327-9-16-TR	ECX-16	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.063" L x 0.039" W (1.60mm x 1.00mm)
ECS-.327-8-14X	ECS-1x5X	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.059" Dia x 0.201" L (1.50mm x 5.10mm)
ECS-.327-12.5-12L-TR	ECX-12L	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-12.5-12L-TR	ECX-12L	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-12.5-12L-TR	ECX-12L	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.079" L x 0.047" W (2.00mm x 1.20mm)
ECS-.327-12.5-34G-TR	ECX-34G	32.768kHz	-40°C ~ 85°C	3-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34G-TR	ECX-34G	32.768kHz	-40°C ~ 85°C	3-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-12.5-34G-TR	ECX-34G	32.768kHz	-40°C ~ 85°C	3-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34G-TR	ECX-34G	32.768kHz	-40°C ~ 85°C	3-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34G-TR	ECX-34G	32.768kHz	-40°C ~ 85°C	3-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-6-34G-TR	ECX-34G	32.768kHz	-40°C ~ 85°C	3-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-CDX-1038	-	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia (2.10mm)
ECS-.327-7-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-7-34R-TR	ECX-34R	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.600-12.5-13	ECS-31	60kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.750-12.5-13	ECS-31	75kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-1.00-12.5-13	ECS-31	100kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.320-12.5-13	ECS-31	32kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia x 0.244" L (2.10mm x 6.20mm)
ECS-.327-8-14	ECS-1x5	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.059" Dia x 0.201" L (1.50mm x 5.10mm)
ECS-.327-6-13X	ECS-2X6X	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia (2.10mm)
ECS-.327-6-13X	ECS-2X6X	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia (2.10mm)
ECS-.327-6-13X	ECS-2X6X	32.768kHz	-10°C ~ 60°C	Cylindrical Can, Radial	0.083" Dia (2.10mm)
ECS-.327-CDX-1293	ECS-CDX	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-CDX-1293	ECS-CDX	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)
ECS-.327-CDX-1293	ECS-CDX	32.768kHz	-40°C ~ 85°C	2-SMD, No Lead	0.126" L x 0.059" W (3.20mm x 1.50mm)

深圳市壹兆電子科技有限公司
有源晶振聯系人：龔成
石英晶體振蕩器電話：0755--27876236
QQ：769468702
進口晶振手機：13590198504
陶瓷晶振郵箱:[email protected]
日本臺灣歐美晶振品牌網站:http://ellentracy.cn
