蘋果手機晶振iPhone14 Pro Max Bom成本上漲FA-128愛普生小體積晶振Q22FA1280001800
蘋果手機晶振iPhone14 Pro MaxBom成本上漲FA-128愛普生小體積晶振Q22FA1280001800
iPhone14 Pro Max Bom成本曝光:美國零件占比大增,中國下滑,報道指出促使BoM成本飆增的主因?yàn)樾酒瑑r(jià)格.iPhone14系列中,Pro和Pro Max搭載蘋果自家研發的A16Bionic芯片,該款芯片成本高達110美元、是去年iPhone13Pro Max搭載的A15芯片的2.4倍水平.價格高是因?yàn)槠尕浛删?/span>,臺積電和三星電子是目前唯二能生產4納米芯片的公司.目前日經新聞與東京研究公司合作,愛普生晶振對蘋果9月開賣的iPhone14系列3款機型進行了拆解,得知iPhone14系列中的旗艦機型零件BOM成本較去年開賣的機型上揚約兩成,創下歷史新高紀錄,而就國家/區域別情況來看,美制零件所占比重大躍進,超越韓廠居冠,中國大陸及臺灣地區所占比重萎縮.

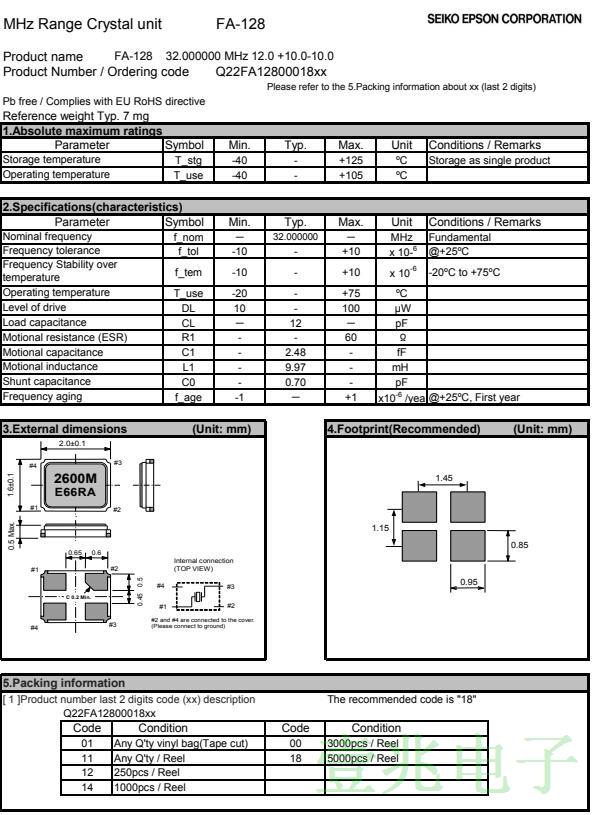

FA-128愛普生小體積晶振Q22FA1280001800,iPhone14 Pro Max Bom成本上漲蘋果手機晶振
愛普生晶振編碼 | 長x寬x高 | 型號 | 石英晶振頻率 | 負載 | 頻率25°C | 頻率公差 | 工作溫度范圍 |
Q22FA1280000200 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA1280000700 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 10 pF | +/-15 ppm | +/-15 ppm | -20 to +85 °C |
Q22FA1280000800 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA1280001000 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280001100 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280001300 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm | -25 to +70 °C |
Q22FA1280001400 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm | -40 to +85 °C |
Q22FA1280001800 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280002000 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280002100 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280002200 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280002400 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280002500 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280002600 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280003000 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA1280003100 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
Q22FA1280003400 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 8 pF | +/-15 ppm | +/-15 ppm | -30 to +70 °C |
Q22FA1280003500 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +75 °C |
Q22FA1280003700 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
Q22FA1280003800 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
Q22FA1280004300 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 8 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
Q22FA1280004400 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 16 pF | +/-15 ppm | +/-18 ppm | -40 to +85 °C |
Q22FA1280004500 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 8.5 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
Q22FA1280004700 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +85 °C |
FA-128愛普生小體積晶振Q22FA1280001800,iPhone14 Pro Max Bom成本上漲蘋果手機晶振
