Q 24.0-JXS32-10-10/15-T1-FU-WA-LF 3225 24MHZ 10PF 10PPM -40+85 Jauch法國晶振
Q 40.0-JXS32-10-10/15-T1-FU-WA-LF 3225 40MHZ 10PF 10PPM -40+85 Jauch法國晶振
40MHz的石英坯料有多厚?一樣厚.
答:A 一個指甲
B:一張普通打印紙
C:一根頭發
自己猜猜——答案會在課文中給出.但首先讓我們來看看這個理論:
一般來說,法國Jauch晶振石英坯料的諧振頻率與石英板的厚度成反比關系.
換句話說諧振頻率越高,所需的石英毛坯厚度就越小.這是因?yàn)樵谑⒈P的界面之間形成了所謂的駐波.該駐波通過在沿厚度方向傳播的橫向聲波的兩個界面上的反射在石英晶片內部形成.最大的機械位移在垂直于波傳播方向的石英板平面內.
在共振頻率下,奇數個聲波波長的一半適合石英毛坯的厚度平面.因此毛坯厚度是AT段生產石英的主要定頻尺寸.AT截面石英晶體通常在以下頻率范圍內歐美晶振制造:
1MHz~60MHz,工作在基本模式
30MHz~250MHz,在泛音模式下運行(第3;第5;第7;第9泛音)
如前所述可以估算石英板(空白)所需的厚度d,因?yàn)槠鏀?shù)個半波長應適合石英空白的厚度平面.Q 24.0-JXS32-10-10/15-T1-FU-WA-LF晶振, JXS32無源晶振,3225 24MHZ 10PF法國Jauch晶振
除了石英坯料的厚度外,還必須考慮聲波在石英材料中的傳播速度v,以便計算諧振頻率f.對于AT截面石英,傳播速度v約為3320米/秒.基于此,給定頻率下所需的厚度d可估算如下:
d≈nx½xv/f其中n=1,3,5,...
在基本模式下,將在10.0MHz和40.0MHz的頻率下獲得以下厚度的石英晶振毛坯:
10.0MHz?d=166.0μm
40.0MHz?d=41.5μm

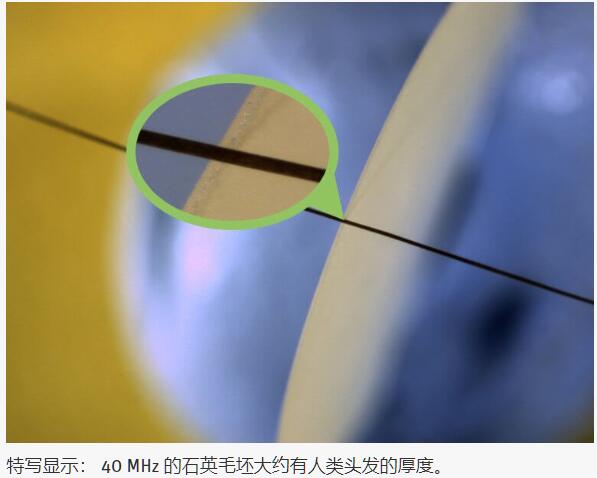

因此,諧振頻率為40MHz的石英坯是一個相對較薄的圓盤.它的厚度僅為41.5µm,約為0.04毫米.因此,厚度約為人類頭發的直徑,約為一張紙厚度的十分之一.所以正確答案是C
例如我們現在如何確保諧振頻率的公差與所需諧振頻率的偏差僅為±10ppm(百萬分之一)?
如果我們將其轉化為石英毛坯的標稱厚度,則+/-10ppm的共振頻率偏差將對應于僅+/-0.415nm的厚度公差.
即使使用最復雜的機械操作,這也無法實現.此外,深圳進口晶振代理商據說振蕩石英晶體是一種成本非常低的組件,也將用于消費領域.Q 24.0-JXS32-10-10/15-T1-FU-WA-LF晶振, JXS32無源晶振,3225 24MHZ 10PF法國Jauch晶振
那么如何實現僅+/-10ppm的低頻容差呢?
我們使用了一個技巧,而不是在實踐中無法實現的機械公差.這是因?yàn)槭⑴髁系闹C振頻率可以通過耦合額外的重量在非常小的范圍內受到影響.
要理解這個技巧是如何工作的,重要的是要知道石英坯料可以在兩個電極的幫助下被激發振蕩.這只是因?yàn)閴弘娦?yīng)才起作用,我們將在別處解釋.
石英貼片晶振坯料相對表面上的兩個電極質量非常小,除了坯料的厚度外,它還會影響諧振頻率.由于這個原因,石英毛坯比計算的要薄一些,因?yàn)楣舱耦l率由于電極的額外耦合質量而有所下降.

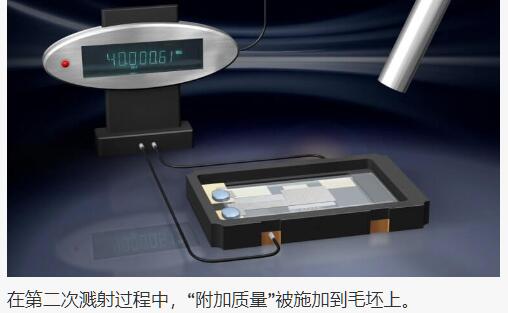

通過濺射工藝應用兩個電極后,產生的諧振頻率仍應剛好高于最終標稱頻率.在石英外殼氣密密封之前的最后一個制造步驟中,真正的“技巧”就出現了.
它包括在現有電極上再涂上一層極薄的金屬層.這是使用另一種濺射工藝完成的,同時連續測量石英盤的諧振頻率.該第二次濺射過程相對較慢,一旦達到準確的標稱頻率就停止.
這種以有針對性和單獨控制的方式施加非常輕微的附加質量的“技巧”允許非常精確地設置共振頻率,從而可以實現+/-10ppm或更好的共振頻率公差.通過純機械加工步驟無法實現這種精度.

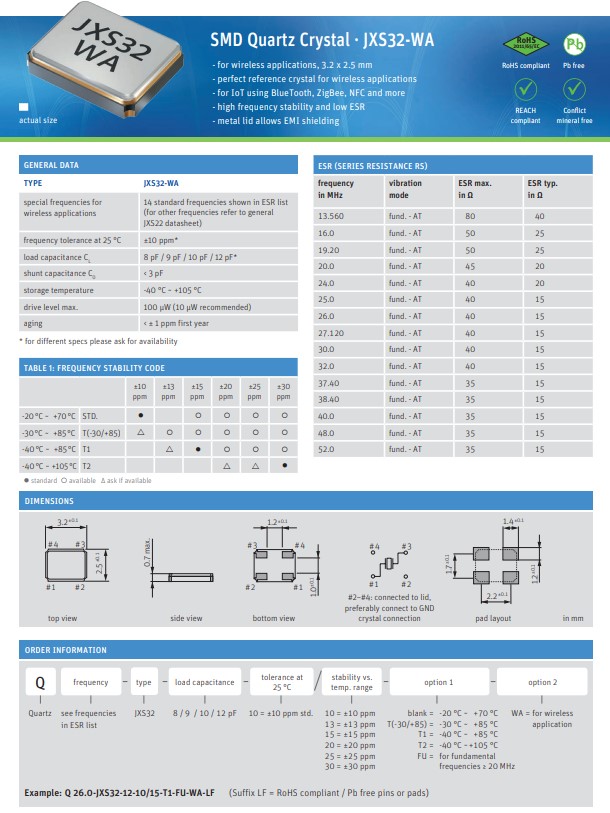

Q 24.0-JXS32-10-10/15-T1-FU-WA-LF晶振, JXS32無源晶振,3225 24MHZ 10PF法國Jauch晶振
深圳市壹兆電子科技有限公司
Manufacturer Part Number
晶振制造商零件編號
Manufacturer
晶振生產商,制造商
Series
晶振型號
Frequency
晶振頻率
Frequency Tolerance
晶振頻差
晶振負載電容
晶振溫度
晶振腳位
Size / Dimension
晶振尺寸
Q 19.2-JXS32-10-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-10-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-10-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-12-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-12-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-12-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-8-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-8-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-8-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-9-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-9-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-9-10/10-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 26.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
26MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 27.12-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
27.12MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-10-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-10-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-10-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-12-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-12-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-12-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-8-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-8-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-8-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-9-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-9-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 16.0-JXS32-9-10/10-WA-LF
Jauch Quartz
JXS32-WA
16MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 38.4-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
38.4MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-10-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
10pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-12-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
12pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-8-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
8pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 32.0-JXS32-9-10/10-FU-WA-LF
Jauch Quartz
JXS32-WA
32MHz
±10ppm
9pF
-20°C ~ 70°C
4
(3.20mm x 2.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-LF
Jauch Quartz
JTX310
32.768kHz
±10ppm
12.5pF
-40°C ~ 85°C
2
(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-LF
Jauch Quartz
JTX310
32.768kHz
±10ppm
12.5pF
-40°C ~ 85°C
2
(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-LF
Jauch Quartz
JTX310
32.768kHz
±10ppm
12.5pF
-40°C ~ 85°C
2
(3.20mm x 1.50mm)
Q 0.032768-JTX210-12.5-20-T2-LF
Jauch Quartz
JTX210
32.768kHz
±20ppm
12.5pF
-40°C ~ 105°C
2
(2.00mm x 1.20mm)
Q 0.032768-JTX210-12.5-20-T2-LF
Jauch Quartz
JTX210
32.768kHz
±20ppm
12.5pF
-40°C ~ 105°C
2
(2.00mm x 1.20mm)
Q 0.032768-JTX210-12.5-20-T2-LF
Jauch Quartz
JTX210
32.768kHz
±20ppm
12.5pF
-40°C ~ 105°C
2
(2.00mm x 1.20mm)
Q 19.2-JXS32-10-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-10-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-10-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-12-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-12-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-12-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-8-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-8-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-8-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-9-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-9-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 19.2-JXS32-9-10/15-T1-WA-LF
Jauch Quartz
JXS32-WA
19.2MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-10-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-12-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-8-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 20.0-JXS32-9-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
20MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
10pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-12-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
12pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-8-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
8pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
Q 24.0-JXS32-9-10/15-T1-FU-WA-LF
Jauch Quartz
JXS32-WA
24MHz
±10ppm
9pF
-40°C ~ 85°C
4
(3.20mm x 2.50mm)
有源晶振聯系人:龔成
石英晶體振蕩器電話:0755--27876236
QQ:769468702
進口晶振手機:13590198504
陶瓷晶振郵箱:[email protected]
日本臺灣歐美晶振品牌網站:http://ellentracy.cn
Q 24.0-JXS32-10-10/15-T1-FU-WA-LF晶振, JXS32無源晶振,3225 24MHZ 10PF法國Jauch晶振
“推薦閱讀”
【責任編輯】:壹兆電子版權所有:http://ellentracy.cn轉載請注明出處
相關行業資訊
- FCX3M01300008I1L 3225 13MHZ 8PF 10PPM 富士晶振車規溫度-40+125
- Wintron溫特龍晶振WCO-302A30HL-EXT-013.000MHz產品系列介紹
- Wi2Wi適合多種系統的即插即用SN系列晶體陷波濾波器MCF-S#-25000X-A-A-B-X-X
- GED提供高質量晶振產品SMD2200.3C-36.860MHz生產線
- Fuji富士晶振FCX2S02600010I1X 2016 26M 10PF 10PP -40+125真無線立體聲
- XLM326100.000000I 3225 100M瑞薩RENESAS六腳差分LVDS華為Mate60 5G晶振
- 富士晶振物聯網 FCX3M02500020Y1G 3225 25M 20PF 10PP
- FCX9M02500020Y5L 49SMD 25M 20PF 日本富士FCom晶振參數對比
- 高利奇Golledge SAW濾波器GPS六腳MP05145 1601.0MHz GSRF TA0550A SAW Filt 3.0X3.0
- FCX9M00800018Y5L 49SMD 8M 18PF系統級芯片單片機富士無源晶振
