MEMS硅晶振與愛普生石英晶振Q24FA20H0017200簡單了解下
MEMS硅晶振與愛普生石英晶振Q24FA20H0017200簡單了解下
我們將晶體振蕩器和MEMS振蕩器的參數有什么不同.參數都是通信,工業,和消費領域的主要參數.MEMS振蕩器更適合高振動環境,愛普生晶振非關鍵定時應用以及信號噪聲比不重要的應用.像高速通信,復雜調制方案,出色的信噪比之類的應用,晶體振蕩器將優于MEMS振蕩器.石英材質擁有低抖動,極高的Q值,以及出色的時間和溫度穩定性.
MEMS硅晶振,愛普生石英晶振Q24FA20H0017200
愛普生晶振編碼
長x寬x高
型號
石英晶振頻率
負載
頻率25°C
頻率公差
工作溫度范圍
ESR最大
驅動電平
Q24FA20H0015500
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
8 pF
+/-10 ppm
+/-15 ppm
-30 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0015600
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
7 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0016600
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
18 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0016900
2.5 x 2 x 0.55mm
FA-20H
40.000000 MHz
12 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 40 Ω
≤ 100 µW

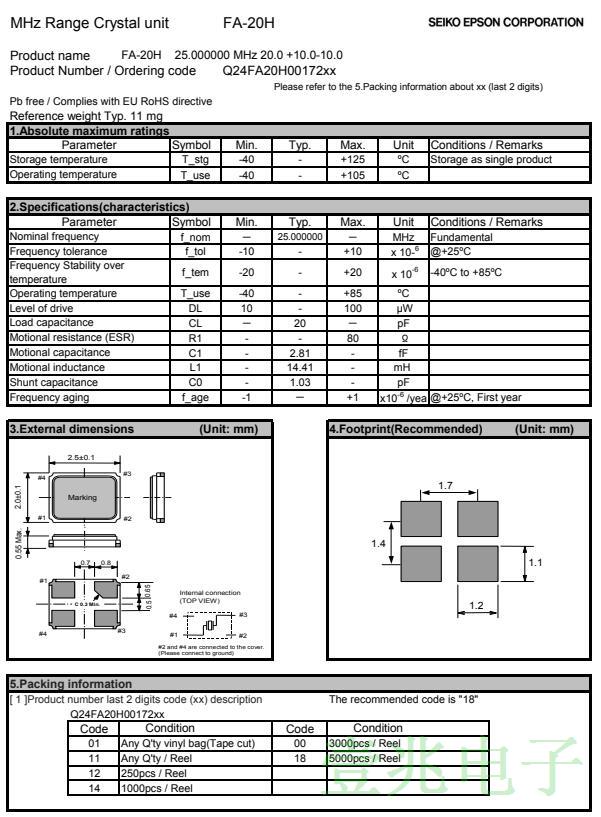

Q24FA20H0017200
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
20 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0017500
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0017600
2.5 x 2 x 0.55mm
FA-20H
20.000000 MHz
9 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0019300
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
10 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0019600
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
8 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 50 Ω
≤ 100 µW
Q24FA20H0020100
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
10 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0020200
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
14 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0020800
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
13 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 50 Ω
≤ 100 µW
Q24FA20H0020900
2.5 x 2 x 0.55mm
FA-20H
40.000000 MHz
9 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 40 Ω
≤ 100 µW
Q24FA20H0021400
2.5 x 2 x 0.55mm
FA-20H
40.000000 MHz
10 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 40 Ω
≤ 100 µW
Q24FA20H0022300
2.5 x 2 x 0.55mm
FA-20H
30.000000 MHz
12 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0022500
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
8 pF
+/-10 ppm
+/-12 ppm
-20 to +70 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0022800
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-30 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0022900
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
6 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0023200
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
12 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0023300
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
12 pF
+/-10 ppm
+/-12 ppm
-20 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0023800
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
12 pF
+/-10 ppm
+/-19 ppm
-40 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0024100
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
12 pF
+/-30 ppm
+/-50 ppm
-20 to +70 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0024200
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
12 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0024700
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
16 pF
+/-10 ppm
+/-30 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0024900
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
7 pF
+/-30 ppm
+/-20 ppm
-20 to +70 °C
≤ 80 Ω
≤ 100 µW
抗震性在沖擊測試中,石英振蕩器對沖擊非常敏感,順t態頻率峰值超過10ppm,而MEMS振蕩器的瞬態頻率偏差則小于1ppm.
長期穩定性長期穩定性可以用老化率表示.我們選取了同樣頻率的石英振蕩器和MEMS振蕩器在122天(2928小時)為周期測量老化率.MEMS振蕩器顯示大于1ppm的頻率跳躍(短期穩定性),并未建立長期的趨勢.石英振蕩器的數據點最大變化為0.26ppm.
短期穩定性我們選取了日本進口晶振同樣頻率的石英振蕩器和MEMS振蕩器,在25°C條件下,每隔0.1秒測量一次調整偏差,總共八分鐘.頻率變化以一次讀數引用的ppm顯示.石英振蕩器的變化量小于±0.02ppm(20ppb).試驗數據表明石英振蕩器和MEMS振蕩器的設計和特性不一樣.MEMS器件中的低Q值會導致頻率變化.MEMS振蕩器的ppm的快速變化表明溫度補償電路在時刻根據諧振器溫度變化而變化.PPL電路中的數字變化,用于校正頻率.石英振蕩器有更好的Q值,并且不需要數字校正信號,因此短期穩定更好.試驗結果表明,石英振蕩器的短時穩定性優于MEMS振蕩器,并且石英振蕩器的Q值高MEMS硅晶振,愛普生石英晶振Q24FA20H0017200
起振時間具有快速啟動功能的振蕩器具有更短的喚醒周期和更長的電池壽命.這對消費者和家庭自動化應用非常重要,因為系統會快速打開和關閉以節省電池電量.我們選取了同樣頻率的石英振蕩器和MEMS振蕩器進行起振時間的對比.
相位噪聲我們選取了日產晶振同樣頻率的石英振蕩器和MEMS振蕩器進行對比:石英晶振相位噪聲優于MEMS晶振.
溫度穩定性我們選取了同樣頻率的石英振蕩器和MEMS振蕩器從-40°C到+85°C,以一分鐘增加2°C的速率進行對比頻率溫度穩定性的試驗.石英晶體振蕩器的頻率與溫度遵循AT切晶體的連續立方曲線,從-40到+85°C達到±15ppm.MEMS振蕩器的頻率與溫度特性似乎優于晶體振蕩器.
MEMS硅晶振,愛普生石英晶振Q24FA20H0017200
愛普生晶振編碼
長x寬x高
型號
石英晶振頻率
負載
頻率25°C
頻率公差
工作溫度范圍
ESR最大
驅動電平
Q24FA20H0025100
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
10 pF
+/-25 ppm
+/-25 ppm
-20 to +75 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0026000
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
10 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 50 Ω
≤ 100 µW
Q24FA20H0026600
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0027000
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-30 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0027100
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
10 pF
+/-20 ppm
+/-14 ppm
-30 to +70 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0027200
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
18 pF
+/-30 ppm
+/-30 ppm
-20 to +70 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0027600
2.5 x 2 x 0.55mm
FA-20H
27.120000 MHz
10 pF
+/-15 ppm
+/-15 ppm
-20 to +75 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0027900
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
12 pF
+/-10 ppm
+/-12 ppm
-20 to +70 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0028700
2.5 x 2 x 0.55mm
FA-20H
30.000000 MHz
8 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0028900
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
9 pF
+/-10 ppm
+/-18 ppm
-40 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0029800
2.5 x 2 x 0.55mm
FA-20H
20.000000 MHz
12 pF
+/-10 ppm
+/-10 ppm
-20 to +70 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0030800
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
9 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0031500
2.5 x 2 x 0.55mm
FA-20H
26.000000 MHz
12 pF
+/-10 ppm
+/-18 ppm
-40 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0032100
2.5 x 2 x 0.55mm
FA-20H
27.120000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0032200
2.5 x 2 x 0.55mm
FA-20H
32.000000 MHz
10 pF
+/-15 ppm
+/-15 ppm
-30 to +85 °C
≤ 50 Ω
≤ 100 µW
Q24FA20H0032500
2.5 x 2 x 0.55mm
FA-20H
24.576000 MHz
18 pF
+/-30 ppm
+/-10 ppm
-20 to +70 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0032600
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
15 pF
+/-20 ppm
+/-30 ppm
-20 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0033100
2.5 x 2 x 0.55mm
FA-20H
16.000000 MHz
12 pF
+/-30 ppm
+/-30 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0033200
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
18 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0033800
2.5 x 2 x 0.55mm
FA-20H
30.000000 MHz
10 pF
+/-10 ppm
+/-12 ppm
-20 to +85 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0033900
2.5 x 2 x 0.55mm
FA-20H
24.000000 MHz
18 pF
+/-10 ppm
+/-25 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0034000
2.5 x 2 x 0.55mm
FA-20H
19.200000 MHz
18 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0034300
2.5 x 2 x 0.55mm
FA-20H
27.120000 MHz
18 pF
+/-20 ppm
+/-10 ppm
-20 to +70 °C
≤ 60 Ω
≤ 100 µW
Q24FA20H0034400
2.5 x 2 x 0.55mm
FA-20H
25.000000 MHz
9 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 80 Ω
≤ 100 µW
Q24FA20H0034500
2.5 x 2 x 0.55mm
FA-20H
27.000000 MHz
9 pF
+/-10 ppm
+/-20 ppm
-40 to +85 °C
≤ 60 Ω
≤ 100 µW
然而,隨著溫度的上升,MEMS振蕩器的鎖向電路以離散步驟調整頻率,頻率溫度曲線圖呈鋸齒狀曲線.此現象表明當溫度上升,MEMS振蕩器切換到溫度補償,導致頻率跳躍,不穩定.在溫度補償方面,石英晶體振蕩器中TCXO使用了模擬溫度補償和簡單的溫度補償電路來實現從-40到+85°C,溫度偏差在±1ppm以內,并且頻率不會跳躍.TCXO最低的溫度偏差可達到0.1ppm.
電子設備和通信系統設備的振蕩器選擇工業級晶振是影響系統性能的主要因素.目前振蕩器有兩種:
石英晶體振蕩器是由石英晶體的基本結構構成,和一個簡單的振蕩器電路.
全硅MEMS諧振器,鎖向電路,溫度補償,以及制造校準;MEMS硅晶振作為振蕩源,需要PLL電路去校準頻率制造公差和溫度系數.MEMS硅晶振,愛普生石英晶振Q24FA20H0017200
