高質量的OSC石英晶振X1G005601012400用于WIFI模塊應用，日本愛普生公司在晶體行業有著專屬于其的自身魅力，總能吸引對于品質有要求的用戶群體，并且結合用戶的需求為用戶創造巨大的價值，當價值與品質之間碰撞出新的火花，于愛普生而言，又看到新機會的到來，專注于小而美的有源石英晶振產品，使得其形成獨特性，也能夠成為市場的最佳之選。

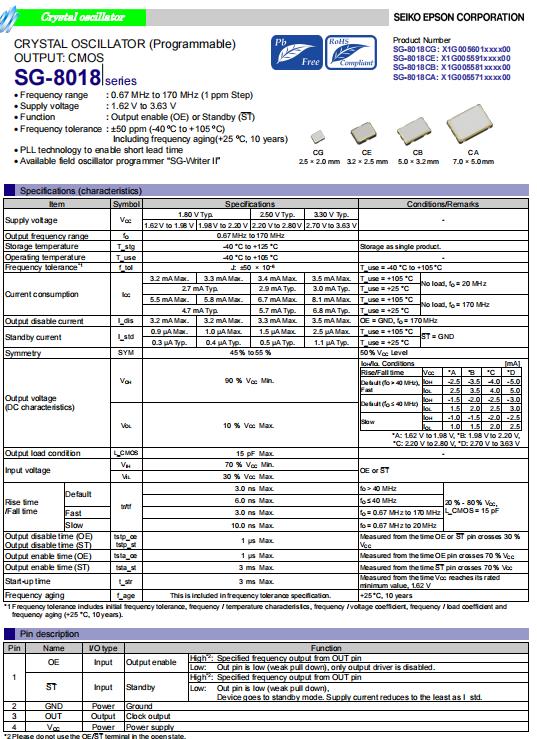

愛普生公司推出這款SG-8018CG晶振得到市場的認可，OSC石英晶振編碼X1G005601012400，頻率20.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作溫度-40至+105°C，頻率公差±50ppm，額外的OptionsN /OSC類型可編程時鐘OSC，具有高品質，低電壓，低抖動的特點，非常適合用于WIFI模塊應用，儀器設備，醫療產品，電子產品等領域。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601009100	SG-8018CG	22.579200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009200	SG-8018CG	0.680000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009300	SG-8018CG	46.339200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009400	SG-8018CG	60.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009500	SG-8018CG	3.579545 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009700	SG-8018CG	16.666600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009800	SG-8018CG	13.333333 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601009900	SG-8018CG	54.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010000	SG-8018CG	3.686400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010200	SG-8018CG	22.579200 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010300	SG-8018CG	64.478100 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010400	SG-8018CG	59.737100 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010500	SG-8018CG	64.342677 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010600	SG-8018CG	43.540157 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010700	SG-8018CG	25.600000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601010800	SG-8018CG	19.660800 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601011000	SG-8018CG	85.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601011100	SG-8018CG	63.055823 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601011200	SG-8018CG	42.669354 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601012200	SG-8018CG	74.250000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601012300	SG-8018CG	13.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601012400	SG-8018CG	20.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
