SG-9101CA晶振編碼X1G005301003900提供簡單的頻率和其他參數編程

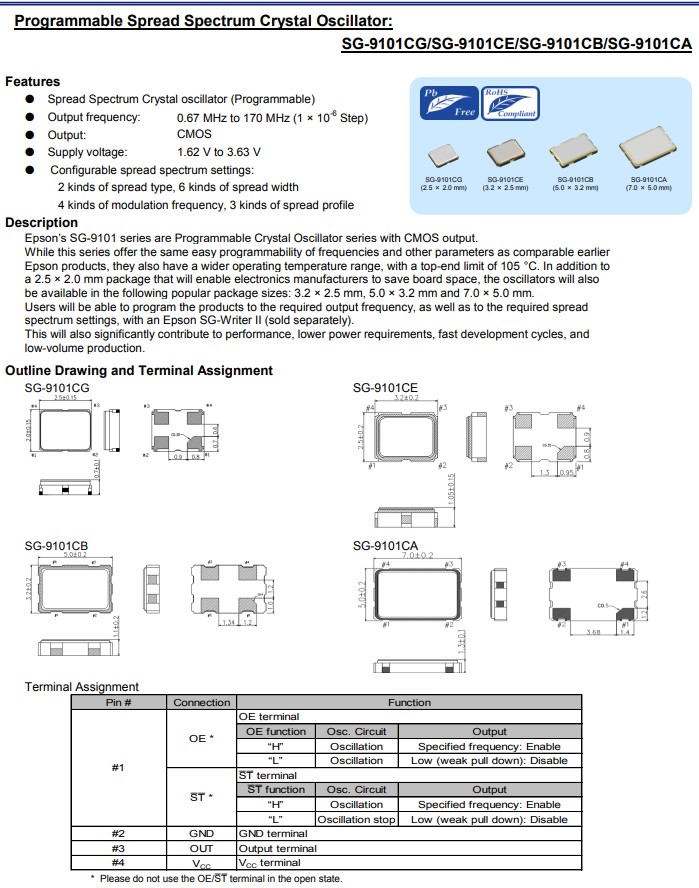

愛普生的SG-9101系列是具有CMOS輸出的可編程晶振系列。雖然該系列與早期的愛普生產品一樣,提供簡單的頻率和其他參數編程,但它們也具有更寬的工作溫度范圍,上限為105℃,除了2.5x2.0mm封裝使電子制造商能夠節省電路板空間外,振蕩器還提供以下流行的封裝超小型晶振尺寸:3.2x2.5 mm,5.0x3.2mm和7.0x5.0mm。用戶可以使用Epson SG-Writer II(單獨銷售)將產品編程為所需的輸出頻率以及所需的擴頻設置。這也將大大有助于提高性能、降低功耗要求、縮短開發周期和實現小批量生產。
SG-9101CA晶振編碼X1G005301003900提供簡單的頻率和其他參數編程
Product Number
Frequency
Model
Output Wave
Supply Voltage
Ope Temperature
X1G005301001100
66.666000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301001200
40.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301001300
40.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301001400
16.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301001500
20.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301001600
48.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
X1G005301001700
64.100000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
X1G005301001800
16.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301001900
82.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
X1G005301002000
50.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002100
30.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002200
66.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002300
50.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002400
66.660000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002500
40.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002600
33.333300 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002700
66.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301002800
32.768000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
X1G005301002900
66.666700 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301003000
32.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 85 °C
X1G005301003100
25.000000 MHz
SG-9101CA
7.00 x 5.00 x 1.40 mm
CMOS
1.620 to 3.630 V
-40 to 105 °C
愛普生科技根據晶振市場需求,提供了小型、準確、可編程振蕩器自推出世界上第一個可編程的石英晶體振蕩器,SG- 8000系列,1997年.配備高效的倉庫,緊湊和精確技術,愛普生開發新的SG-8101系列和SG-9101系列利用QMEMS*2、半導體、和溫度補償石英晶體振蕩器(TCXO)頻率調整技術. 石英晶體振蕩器的頻率穩定度和需求的能力承受范圍廣泛的溫度增加了近年來由于越來越需要更小的電子設備和更多的權力和功能在更多種類的環境中,包括極端戶外和工廠設施.
SG-9101CA晶振編碼X1G005301003900提供簡單的頻率和其他參數編程
X1G005301003200 | 40.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003300 | 75.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003400 | 50.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003500 | 25.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003600 | 13.500000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003700 | 14.745600 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003800 | 44.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301003900 | 48.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004000 | 20.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004100 | 40.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004200 | 13.560000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004300 | 156.250000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005301004400 | 66.666600 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004500 | 29.491200 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004600 | 19.660000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
X1G005301004700 | 12.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004800 | 50.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301004900 | 60.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301005000 | 2.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301005100 | 160.000000 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
X1G005301005200 | 29.461200 MHz | SG-9101CA | 7.00 x 5.00 x 1.40 mm | CMOS | 1.620 to 3.630 V | -40 to 85 °C |
SG-9101CA晶振編碼X1G005301003900提供簡單的頻率和其他參數編程
雖然兩系列提供了易于編程的頻率和其他參數一樣早些時候可比愛普生產品(SG-8002&SG-8003系列的SG-8101和SG-9001 SG-9101)的情況下,他們也有一個更廣泛的操作溫度范圍,與高端限制為105℃.除了2.5毫米x2.0毫米包,使電子產品制造商節省空間,可用的石英晶體振蕩器也將在以下流行的包裝尺寸:3.2x2.5mm,5.0x3.2mm,7.0x5.0mm.
SG-8101系列的振蕩器有大約66%收緊頻率公差和當前消費比同類產品低50%.SG-9101系列晶體振蕩器,它使用一個擴展頻譜消耗比較數據目前低于75%.用戶將能夠項目產品所需的輸出頻率,以及所需的輸出頻率調制和周期. 這些振子可以在各種環境條件下使用.他們也將極大地有助于性能,降低電力需求,快速發展周期和小批量生產.適用于:通訊設備、數碼科技、醫療設備、車載電子、智能穿戴設備、智能機器人、無人機以及高端的航空、軍事設備領域.
