ECS-100-18-18-TR,CSM-12,10MHz石英晶振
頻率:10MHz

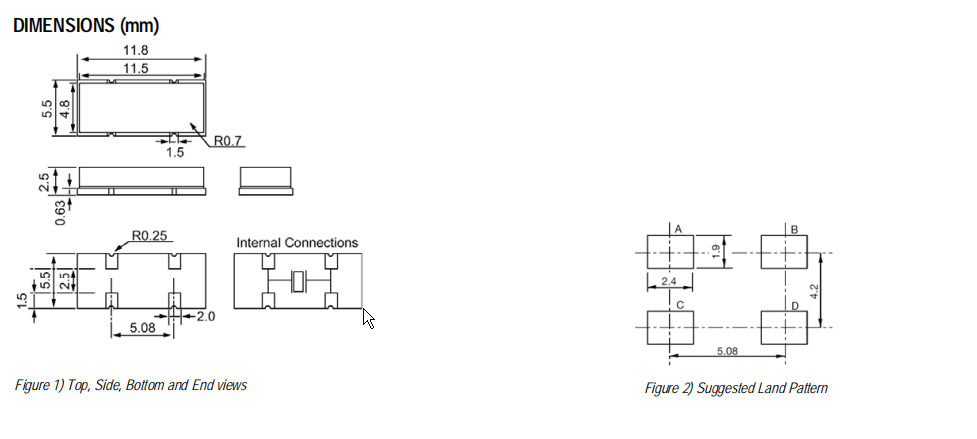

尺寸:11.8*5.5mm
ECS-100-18-18-TR,CSM-12,10MHz石英晶振,編碼:ECS-100-18-18-TR,型號:CSM-12,頻率:10 MHz,精度:±30ppm,負載電容:18pF,溫度:-40°C ~ 85°C,美國進口晶振,石英貼片晶體,晶體諧振器,貼片晶振,貼片晶振本身體積小,超薄型石英晶體諧振器,特別適用于有目前高速發展的高端電子數碼產品,因為晶振本身小型化需求的市場領域,小型,薄型是對應陶瓷諧振器(偏差大)和普通的石英晶體諧振器(偏差小)的中間領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航HDD, SSD, USB, Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.
訂購熱線:0755-27876236
ECS-100-18-18-TR,CSM-12,10MHz石英晶振,編碼:ECS-100-18-18-TR,型號:CSM-12,頻率:10 MHz,精度:±30ppm,負載電容:18pF,溫度:-40°C ~ 85°C,美國進口晶振,石英貼片晶體,晶體諧振器,貼片晶振,貼片晶振本身體積小,超薄型石英晶體諧振器,特別適用于有目前高速發展的高端電子數碼產品,因為晶振本身小型化需求的市場領域,小型,薄型是對應陶瓷諧振器(偏差大)和普通的石英晶體諧振器(偏差小)的中間領域的一種性價比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航HDD, SSD, USB, Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.ECS-100-18-18-TR,CSM-12,10MHz石英晶振,參數表
|
|
Mfr Part # | 石英晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Temperature |
ECS-40-S-18-TR | ECS Inc. | CSM-12 | 4 MHz | ±30ppm | Series | 150 Ohms | -40°C ~ 85°C |
ECS-40-18-18-TR | ECS Inc. | CSM-12 | 4 MHz | ±30ppm | 18pF | 150 Ohms | -40°C ~ 85°C |
ECS-36-20-18-TR | ECS Inc. | CSM-12 | 3.6864 MHz | ±30ppm | 20pF | 200 Ohms | -40°C ~ 85°C |
ECS-40-20-18-TR | ECS Inc. | CSM-12 | 4 MHz | ±30ppm | 20pF | 150 Ohms | -40°C ~ 85°C |
ECS-80-S-18-TR | ECS Inc. | CSM-12 | 8 MHz | ±30ppm | Series | 100 Ohms | -40°C ~ 85°C |
ECS-36-18-18-TR | ECS Inc. | CSM-12 | 3.6864 MHz | ±30ppm | 18pF | 200 Ohms | -40°C ~ 85°C |
ECS-100-S-18-TR | ECS Inc. | CSM-12 | 10 MHz | ±30ppm | Series | 80 Ohms | -40°C ~ 85°C |
ECS-240-16-18-TR | ECS Inc. | CSM-12 | 24 MHz | ±30ppm | 16pF | 50 Ohms | -40°C ~ 85°C |
ECS-143-S-18-TR | ECS Inc. | CSM-12 | 14.31818 MHz | ±30ppm | Series | 50 Ohms | -40°C ~ 85°C |
ECS-41-18-18-TR | ECS Inc. | CSM-12 | 4.096 MHz | ±30ppm | 18pF | 150 Ohms | -40°C ~ 85°C |
ECS-60-18-18-TR | ECS Inc. | CSM-12 | 6 MHz | ±30ppm | 18pF | 100 Ohms | -40°C ~ 85°C |
ECS-80-18-18-TR | ECS Inc. | CSM-12 | 8 MHz | ±30ppm | 18pF | 100 Ohms | -40°C ~ 85°C |
ECS-120-18-18-TR | ECS Inc. | CSM-12 | 12 MHz | ±30ppm | 18pF | 80 Ohms | -40°C ~ 85°C |
ECS-36-S-18-TR | ECS Inc. | CSM-12 | 3.6864 MHz | ±30ppm | Series | 200 Ohms | -40°C ~ 85°C |
ECS-160-18-18-TR | ECS Inc. | CSM-12 | 16 MHz | ±30ppm | 18pF | 50 Ohms | -40°C ~ 85°C |
ECS-200-18-18-TR | ECS Inc. | CSM-12 | 20 MHz | ±30ppm | 18pF | 50 Ohms | -40°C ~ 85°C |
ECS-49-18-18-TR | ECS Inc. | CSM-12 | 4.9152 MHz | ±30ppm | 18pF | 150 Ohms | -40°C ~ 85°C |
ECS-98.3-20-18-TR | ECS Inc. | CSM-12 | 9.8304 MHz | ±30ppm | 20pF | 100 Ohms | -40°C ~ 85°C |
ECS-200-20-18-TR | ECS Inc. | CSM-12 | 20 MHz | ±30ppm | 20pF | 50 Ohms | -40°C ~ 85°C |
ECS-147.4-18-18-TR | ECS Inc. | CSM-12 | 14.7456 MHz | ±30ppm | 18pF | 50 Ohms | -40°C ~ 85°C |
ECS-73-S-18-TR | ECS Inc. | CSM-12 | 7.3728 MHz | ±30ppm | Series | 100 Ohms | -40°C ~ 85°C |
ECS-250-18-18-TR | ECS Inc. | CSM-12 | 25 MHz | ±30ppm | 18pF | 40 Ohms | -40°C ~ 85°C |
ECS-80-20-18-TR | ECS Inc. | CSM-12 | 8 MHz | ±30ppm | 20pF | 100 Ohms | -40°C ~ 85°C |
ECS-100-18-18-TR | ECS Inc. | CSM-12 | 10 MHz | ±30ppm | 18pF | 80 Ohms | -40°C ~ 85°C |
ECS-73-18-18-TR | ECS Inc. | CSM-12 | 7.3728 MHz | ±30ppm | 18pF | 100 Ohms | -40°C ~ 85°C |
ECS-50-18-18-TR | ECS Inc. | CSM-12 | 5 MHz | ±30ppm | 18pF | 150 Ohms | -40°C ~ 85°C |
ECS-61-32-18-TR | ECS Inc. | CSM-12 | 6.144 MHz | ±30ppm | 32pF | 100 Ohms | -40°C ~ 85°C |
ECS-98.3-S-18-TR | ECS Inc. | CSM-12 | 9.8304 MHz | ±30ppm | Series | 100 Ohms | -40°C ~ 85°C |
ECS-110.5-20-18-TR | ECS Inc. | CSM-12 | 11.0592 MHz | ±30ppm | 20pF | 80 Ohms | -40°C ~ 85°C |
ECS-196.6-S-18-TR | ECS Inc. | CSM-12 | 19.6608 MHz | ±30ppm | Series | 50 Ohms | -40°C ~ 85°C |
ECS-143-20-18-TR | ECS Inc. | CSM-12 | 14.31818 MHz | ±30ppm | 20pF | 50 Ohms | -40°C ~ 85°C |
